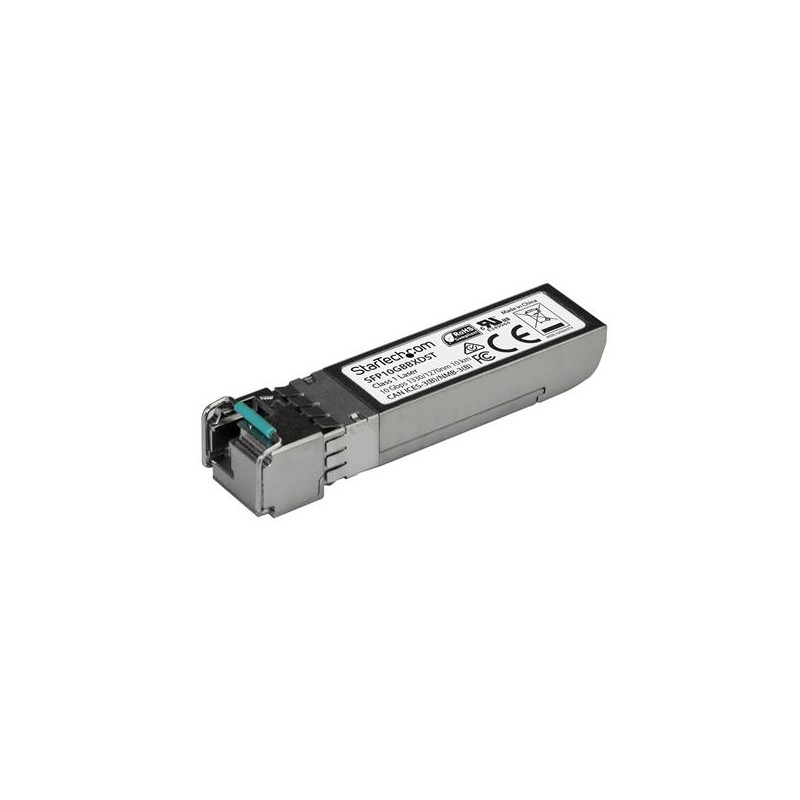

StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-BX (Downstream) - SM LC - 10 km
  • StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-BX (Downstream) - SM LC - 10 km
  • StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-BX (Downstream) - SM LC - 10 km
  • StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-BX (Downstream) - SM LC - 10 km
  • StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-BX (Downstream) - SM LC - 10 km
  • StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-BX (Downstream) - SM LC - 10 km
This 10GBase-BX (downstream) SFP+ module delivers what you need most in your network connections: reliable performance. It’s built to exacting MSA specifications and fully tested to ensure seamless compatibility. The single-mode SFP+ transceiver module offers a cost-effective way to add, replace or upgrade the ports on your networking equipment, and it’s backed by a lifetime warranty.



Delivers 10 Gigabit Ethernet connections

With data transfer rates of up to 10Gbps and support for Digital Diagnostics Monitoring (DDM / DOM), this LC SFP module can be installed into fiber networking equipment with an MSA compliant port. It delivers dependable 10 Gigabit connectivity over single-mode fiber for 10GBase-BX compliant networks, with a maximum distance of up to 10 km (6.2 mi.) and 1330nm Tx / 1270nm Rx optical wavelength.



Built for reliable network performance

This optical transceiver is engineered to meet or exceed the industry’s MSA (Multi-Source Agreement) standards. StarTech.com brings its established reputation for high-quality connectivity solutions to SFP transceivers, providing SFPs that match major OEM brands in performance and reliability. Committed to the highest standards, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.



Convenient and scalable

Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile solution that’s compatible with a wide range of networking equipment, allowing you to expand your network to remote segments cost-effectively.



You can count on SFP10GBBXDST for reliable performance, backed by a lifetime warranty and free lifetime technical support.
Cable type fiber optic
Certification CE, FCC, UR
Colour of product Silver
Data transfer rate (max) 10000 Mbit/s
Depth 58.4 mm
Duplex system Full
Fiber optic connector LC
Full duplex Y
Height 12.6 mm
Hot-Plug support Y
Housing material Aluminium
Interface type SFP+
Maximum transfer distance 10000 m
Networking standards IEEE 802.3ae
Number of products included 1 pc(s)
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 0 - 70 °C
RoHS compliance Y
SFP transceiver type BX
Storage temperature (T-T) -40 - 85 °C
Weight 30 g
Width 13.9 mm
Wavelength-division multiplexing (WDM) Y
Digital Diagnostics Monitoring (DDM) Y
Tx wavelength (min) 1330 nm
Rx wavelength (min) 1270 nm
Single-mode fiber (SMF) supported Y

Specific References

EAN13
0065030873413

SFP10GBBXDST.pdf

StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-BX (Downstream) - SM LC - 10 km Data Sheet

StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-BX (Downstream) - SM LC - 10 km

StarTech.com StarTech.com 10GBase-BX - Downstream - Transeiver - LC Fiber - MSA Compliant - 10 km - 10G SFP+ Module - Singlemode SFP
Out of Stock
£131.38
£109.49 Ex. VAT
Reference: SFP10GBBXDST
Quantity
