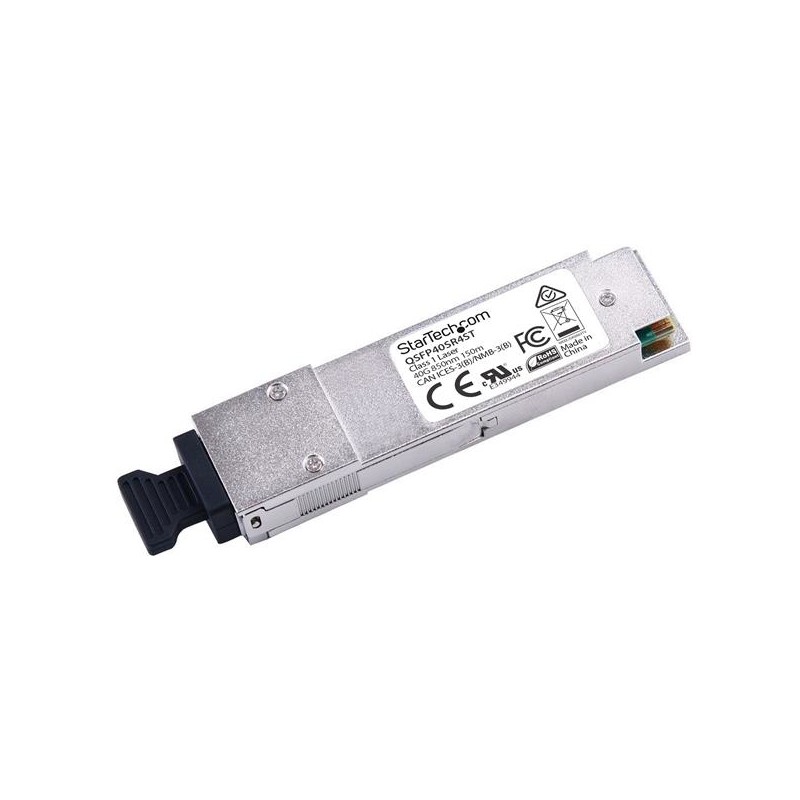

StarTech.com MSA Compliant 40 Gigabit Fiber QSFP+ Transceiver Module - 40GBase-SR4 - MM MPO - 150 m
  • StarTech.com MSA Compliant 40 Gigabit Fiber QSFP+ Transceiver Module - 40GBase-SR4 - MM MPO - 150 m
  • StarTech.com MSA Compliant 40 Gigabit Fiber QSFP+ Transceiver Module - 40GBase-SR4 - MM MPO - 150 m
  • StarTech.com MSA Compliant 40 Gigabit Fiber QSFP+ Transceiver Module - 40GBase-SR4 - MM MPO - 150 m
This 40GBase-SR4 QSFP+ module delivers what you need most in your network connections: reliable performance. It’s built to exacting MSA specifications and fully tested to ensure seamless compatibility. The multimode QSFP+ transceiver module offers a cost-effective way to add, replace or upgrade the ports on your networking equipment, and it’s backed by a lifetime warranty.



Delivers 40 Gigabit Ethernet connections

With data transfer rates of up to 40Gbps and support for Digital Diagnostics Monitoring (DDM / DOM), this QSFP+ module can be installed into fiber networking equipment with an MSA compliant port, using an MPO connector. It delivers dependable 40 Gigabit connectivity over multimode fiber for 40GBase-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft.) and 850 nm optical wavelength.



Built for reliable network performance

This optical transceiver is engineered to meet or exceed the industry’s MSA (Multi-Source Agreement) standards. StarTech.com brings its established reputation for high-quality connectivity solutions to SFP transceivers, providing SFPs that match major OEM brands in performance and reliability. Committed to the highest standards, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.



Convenient and scalable

Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile solution that’s compatible with a wide range of networking equipment, allowing you to expand your network to remote segments cost-effectively.



You can count on QSFP40SR4ST for reliable performance, backed by a lifetime warranty and free lifetime technical support.
Cable type fiber optic
Certification CE, FCC, UR
Colour of product Silver
Data transfer rate (max) 40000 Mbit/s
Depth 72 mm
Duplex system Full
Fiber optic connector MPO
Full duplex Y
Height 8.5 mm
Hot-Plug support Y
Housing material Aluminium
Interface type QSFP+
Maximum transfer distance 150 m
Networking standards IEEE 802.3ba
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 0 - 70 °C
Package depth 120 mm
Package height 30 mm
Package weight 95 g
Package width 90 mm
RoHS compliance Y
SFP transceiver type SR4
Storage temperature (T-T) -40 - 85 °C
Wavelength 850 nm
Weight 40 g
Width 18.4 mm
Digital Diagnostics Monitoring (DDM) Y
Multi-mode fiber (MMF) supported Y

Specific References

EAN13
0065030873567

QSFP40SR4ST.pdf

StarTech.com MSA Compliant 40 Gigabit Fiber QSFP+ Transceiver Module - 40GBase-SR4 - MM MPO - 150 m Data Sheet

StarTech.com MSA Compliant 40 Gigabit Fiber QSFP+ Transceiver Module - 40GBase-SR4 - MM MPO - 150 m

StarTech.com StarTech.com 40GBase-SR4 - with MPO Connector - QSFP Transeiver Module - MSA Compliant - 150 m - 40G SFP - Multimode SFP
Out of Stock
£381.16
£317.63 Ex. VAT
Reference: QSFP40SR4ST
Quantity
