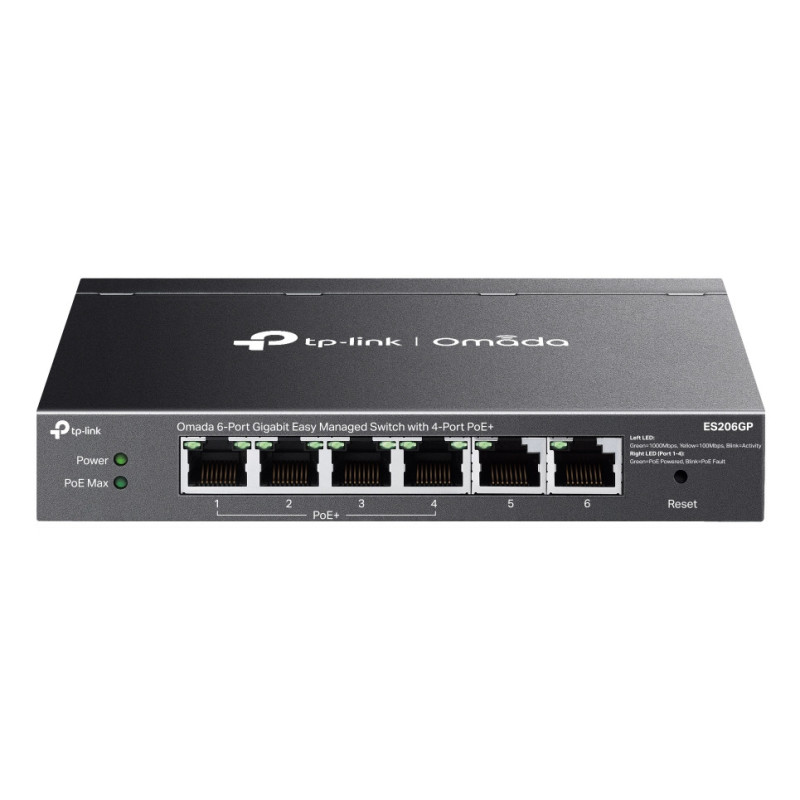

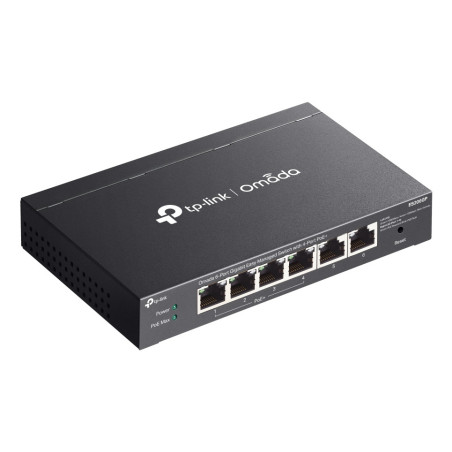

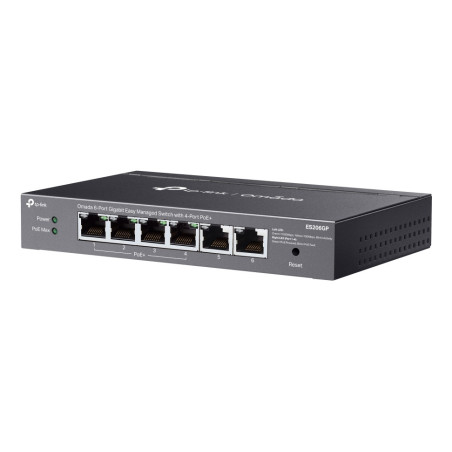

P-Link ES206GP
  • P-Link ES206GP
  • P-Link ES206GP
  • P-Link ES206GP
  • P-Link ES206GP
  • P-Link ES206GP
  • P-Link ES206GP
  • P-Link ES206GP
Reasons to Buy
  • 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design


Technical Headlines
  • Managed Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 6
  • MAC address table: 8000 entries Switching capacity: 12 Gbit/s
  • DC Power supply included Power over Ethernet (PoE)


Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
10G support No
AC adapter included Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 6
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
DC input voltage 53.5 V
Depth 101 mm
Firmware upgradeable Yes
Flow control support Yes
Forwarding rate 7.4 Mpps
Gigabit Ethernet (copper) ports quantity 6
Height 25 mm
IGMP snooping Yes
Input current 1.31 A
Jumbo frames support Yes
LED indicators Yes
Link aggregation Yes
MAC address table 8000 entries
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 40 °C
Package type Box
Packet buffer memory 4 MB
Port mirroring Yes
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 4
Power source DC
Power supply included Yes
Quality of Service (QoS) support Yes
Reset button Yes
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Yes
Surge protection Yes
Switch type Managed
Switching capacity 12 Gbit/s
Total Power over Ethernet (PoE) budget 65 W
Transmission distance (max) 0.25 km
User guide Yes
VLAN support Yes

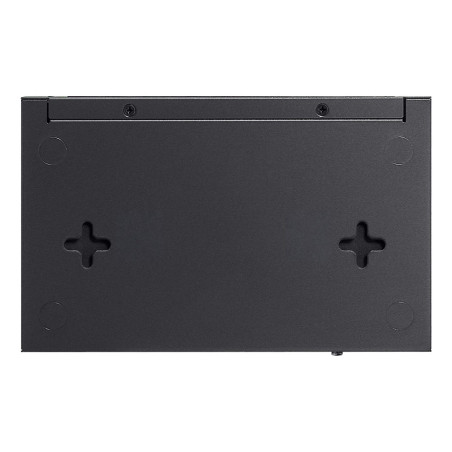

Wall mountable Yes
Web-based management Yes
Width 158 mm
Jumbo frames 15
Loop protection Yes
Power over Ethernet (PoE) power per port 30 W
Fast leave Yes
Surge protection voltage 6 kV
Queue scheduling algorithms Weighted Round Robin (WRR)
Product colour Black
Zero Touch Provisioning (ZTP) Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
DHCP features DHCP client
Fanless Yes
Cloud-managed Yes
Power over Ethernet (PoE) type supported PoE+
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Unified static configuration Yes

Specific References

EAN13
1210002600651

ES206GP.pdf

TP-Link ES206GP Data Sheet

TP-Link ES206GP

TP-Link Omada ES206GP, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
In Stock
£69.90
£58.25 Ex. VAT
Reference: ES206GP
Quantity
