Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP port
- 384W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Technical Headlines
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 26
- 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
- MAC address table: 8000 entries Switching capacity: 56 Gbit/s
- Rack mounting
- AC Power supply included Power over Ethernet (PoE)
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cables included | AC |
| Certification | FCC, CE, RoHS |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X |
| Depth | 330 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Flow control support | Yes |
| Forwarding rate | 41.66 Mpps |
| Gigabit Ethernet (copper) ports quantity | 26 |
| Heat dissipation | 1546.15 BTU/h |
| Height | 44 mm |
| Housing material | Metal |
| IGMP snooping | Yes |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Manual | Yes |
| Mean time between failures (MTBF) | 224143 h |
| Multicast support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Noise level | 46.2 dB |
| Number of fans | 2 fan(s) |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 45 °C |
| Packet buffer memory | 4 MB |
| Port mirroring | Yes |
| Power consumption (max) | 454.8 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power source | AC |
| Power supply included | Yes |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Surge protection | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| Total Power over Ethernet (PoE) budget | 384 W |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 440 mm |
| Jumbo frames | 15000 |
| SFP module slots quantity | 2 |
| Power over Ethernet (PoE) power per port | 30 W |
| Fast leave | Yes |
| Surge protection voltage | 6 kV |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Product colour | Black |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| DHCP features | DHCP client |
| Fanless | No |
| Cloud-managed | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Unified static configuration | Yes |
Specific References
- EAN13
- 0840460600460

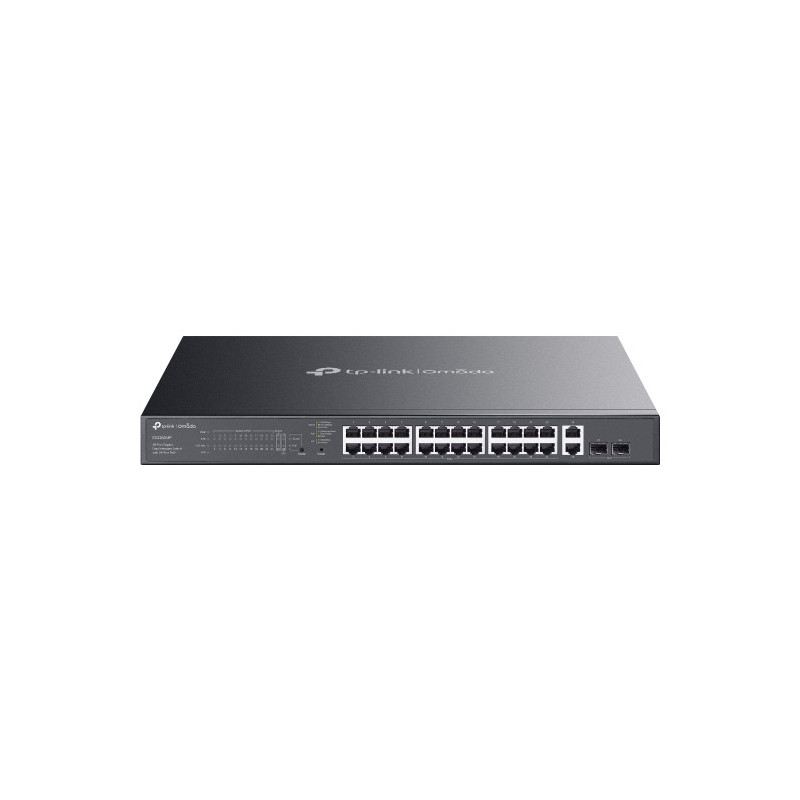

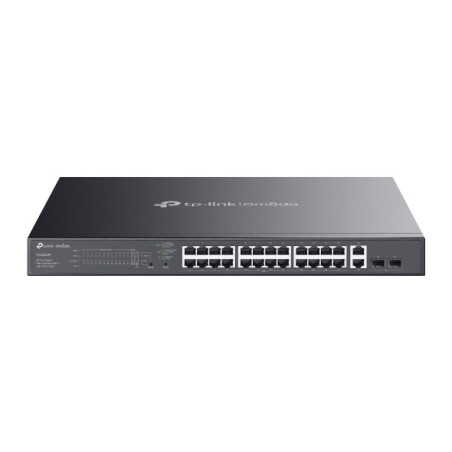

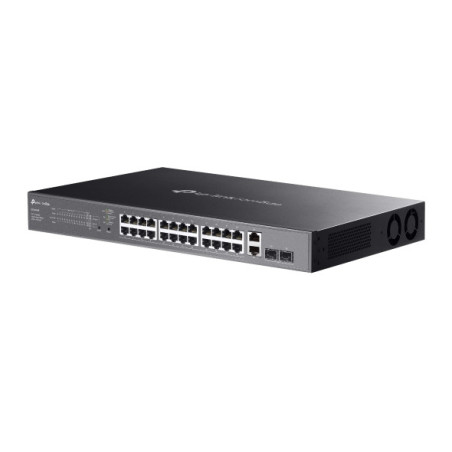

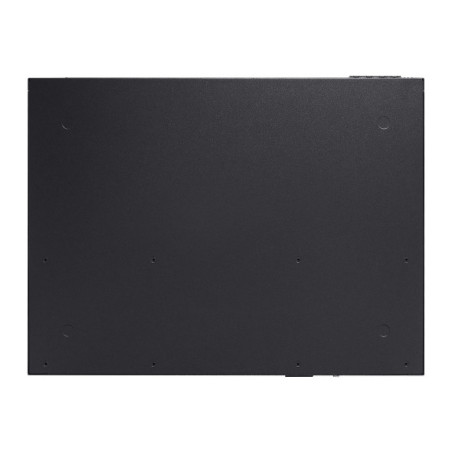

TP-Link ES228GMP
TP-Link Omada ES228GMP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
£294.52
£245.44 Ex. VAT
TP-Link Omada ES228GMP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
