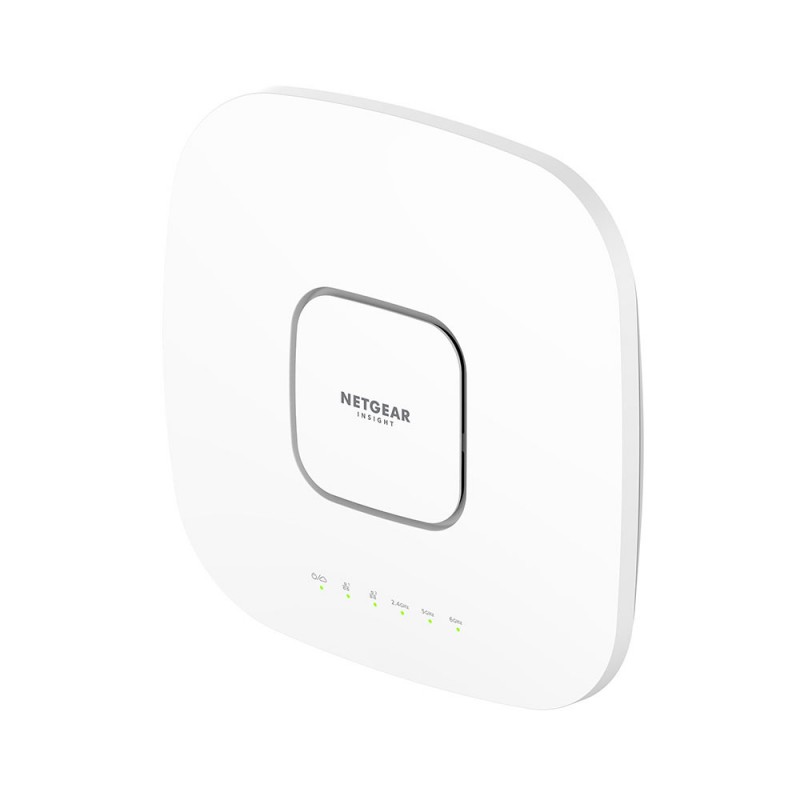

NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
  • NETGEAR AXE7800 Tri-Band WiFi 6E Access Point 7800 Mbit/s White Power over Ethernet (PoE)
First Tri-Band WiFi 6E access point, WAX630E is the most powerful SMB access point in the industry. With WiFi 6E, a new 6Ghz band added to WiFi 6 making it the fastest WiFi available. Offers the features and capabilities of WiFi 6 access points, including higher performance, lower latency, and faster data rates, and extends into the new 6 GHz band for expanded spectrum capacity. Wifi 6e, The Fastest Wifi Ever WAX630E adds a new 6GHz band for new high-performance WiFi 6E devices like laptops and smartphones, reducing data loads on the other two bands so WiFi speed increases for every device connected to the access point. Netgear Insight Remote Management Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. Includes 1-year subscription. Maximize Performance WITH A NETGEAR POE++ SWITCH 2.5Gbps Ethernet port with Ultra60 PoE++ enables the fastest connection between the access point and switch
Antenna gain level (max) 4.4 dBi
4.4 dBi
Antenna type Internal
internal
Auto MDI/MDI-X Y
Yes
DC-in jack Y
Yes
Depth 268.3 mm
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
10,100,1000,2500 Mbit/s
Height 55.5 mm
MAC address filtering Y
Yes
Maximum data transfer rate 7800 Mbit/s
7800 Mbit/s
Modulation OFDM
OFDM
Mounting kit Y
Yes
Networking standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of products included 1 pc(s)
Operating temperature (T-T) 0 - 40 °C
Output current 3.5 A
3.5 A
Output voltage 12 V
12 V
Placement Ceiling,Wall
Ceiling, Wall
Power over Ethernet (PoE) Yes
Yes
Quantity per pack 1 pc(s)
Quick start guide Y
Yes
Reset button Y
Yes
Security algorithms EAP-TLS,PEAP,SSL/TLS,TTLS,WPA,WPA2,WPA3
EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
Spread spectrum method OFDM,OFDMA
OFDM, OFDMA
USB 2.0 ports quantity 0
VLAN support Y
Yes
Web-based management Y
Yes
Weight 1.05 kg
Width 266.6 mm
2.4 GHz Y
Yes
5 GHz Y
Yes
Wi-Fi Multimedia (WMM)/(WME) Y
Auto Wireless Distribution System (WDS) Y
Yes
MIMO Y
Yes
MIMO type Multi User MIMO
Multi User MIMO
Product colour White
Service Set Identifier (SSID) features SSID broadcast, SSID broadcast on/off
Maximum data transfer rate (2.4 GHz) 600 Mbit/s
Maximum data transfer rate (5 GHz) 4800 Mbit/s
Remote Authentication Dial-In User Service (RADIUS) Yes
Harmonized System (HS) code 85176990
Wi-Fi Multimedia (WMM)/(WME) Yes

Specific References

EAN13
0606449159653

WAX630E-100EUS.pdf

NETGEAR WAX630E 7800 Mbit/s White Power over Ethernet (PoE) Data Sheet

NETGEAR AXE7800 Tri-Band WiFi 6E Access Point

WiFi 6E, 2.4GHz, 5GHz, 6GHz, 1 x 1GbE LAN port, 8 SSID, WPA3, Ultra60 PoE++, 1050 g
Out of Stock
£415.14
£345.95 Ex. VAT
Reference: WAX630E-100EUS
