Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for small and medium sized business. REMOTE CLOUD MANAGEMENT Plug-and-play set up and remote management of small business networks NETWORK TOPOLOGY A single, holistic view of wired and wireless networks for further troubleshooting HIGH-DENSITY WIFI MANAGEMENT Deep wireless management features with more tools to deploy small and large WiFi networks Business-Level Security WPA3 for the highest level of WiFi connection security 8 Wireless Networks (SSIDs) Separate VLANs and WPA3 makes WAX630 the ideal network configuration for SMBs for security and manageability Separate VLANs Keep admin, employee, visitor, HR, Finance department networks safely separated from each other NETGEAR INSIGHT FOR VARS Multi-location & multi-tenant remote network management from a single pane-of-glass Easy Setup Set up, configure, and manage with NETGEAR Insight Remote Management Remote Cloud monitoring and management with NETGEAR Insight for single pane of glass management of all your Insight Managed devices. 1-Year Insight subscription included Flexible Mounting Easy to securely install on the wall of a suspended ceiling with the hardware included
Antenna gain level (max) 4.3 dBi
4.3 dBi
Antenna type Internal
internal
Auto MDI/MDI-X Y
Yes
DC-in jack Y
Yes
Depth 268.3 mm
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 100,1000,2500 Mbit/s
100,1000,2500 Mbit/s
Height 55.5 mm
LED indicators Y
Yes
MAC address filtering Y
Yes
Maximum data transfer rate 6000 Mbit/s
6000 Mbit/s
Modulation OFDM
OFDM
Mounting kit Y
Yes
Networking standards IEEE 802.11ax,IEEE 802.11i,IEEE 802.3af,IEEE 802.3at
IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Number of products included 1 pc(s)
Number of users 200 user(s)
200 user(s)
Operating temperature (T-T) 0 - 40 °C
Output current 3.5 A
3.5 A
Output voltage 12 V
12 V
Placement Ceiling,Wall
Ceiling, Wall
Power over Ethernet (PoE) Yes
Yes
Quantity per pack 1 pc(s)
Quick start guide Y
Yes
Reset button Y
Yes
Security algorithms EAP-TLS,PEAP,SSL/TLS,TTLS,WPA,WPA2,WPA3
EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
Spread spectrum method OFDM,OFDMA
OFDM, OFDMA
USB 2.0 ports quantity 0
VLAN support Y
Yes
Web-based management Y
Yes
Weight 956 g
Width 266.6 mm
2.4 GHz Y
Yes
5 GHz Y
Yes
Wi-Fi Multimedia (WMM)/(WME) Y
Auto Wireless Distribution System (WDS) Y
Yes
MIMO Y
Yes
MIMO type Multi User MIMO
Multi User MIMO
Product colour White
Service Set Identifier (SSID) features SSID broadcast, SSID broadcast on/off
Maximum data transfer rate (2.4 GHz) 1200 Mbit/s
Maximum data transfer rate (5 GHz) 2400 Mbit/s
Remote Authentication Dial-In User Service (RADIUS) Yes
Harmonized System (HS) code 85176990
Wi-Fi Multimedia (WMM)/(WME) Yes

Specific References

EAN13
0606449153965

WAX630-100EUS.pdf

NETGEAR Insight Cloud Managed WiFi 6 AX6000 Tri-band Multi-Gig Access Point (WAX630) 6000 Mbit/s White Power over Ethernet (PoE) Data Sheet

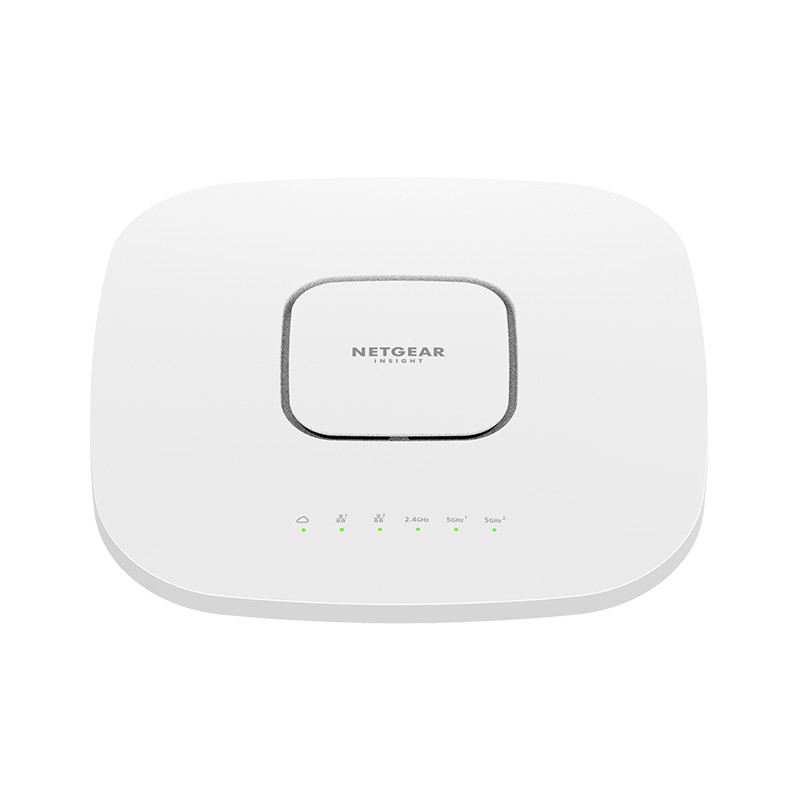

Netgear WAX630

AX6000 Tri-Band PoE Multi-Gig WiFi 6 Access Point
Out of Stock
£381.30
£317.75 Ex. VAT
Reference: WAX630-100EUS
