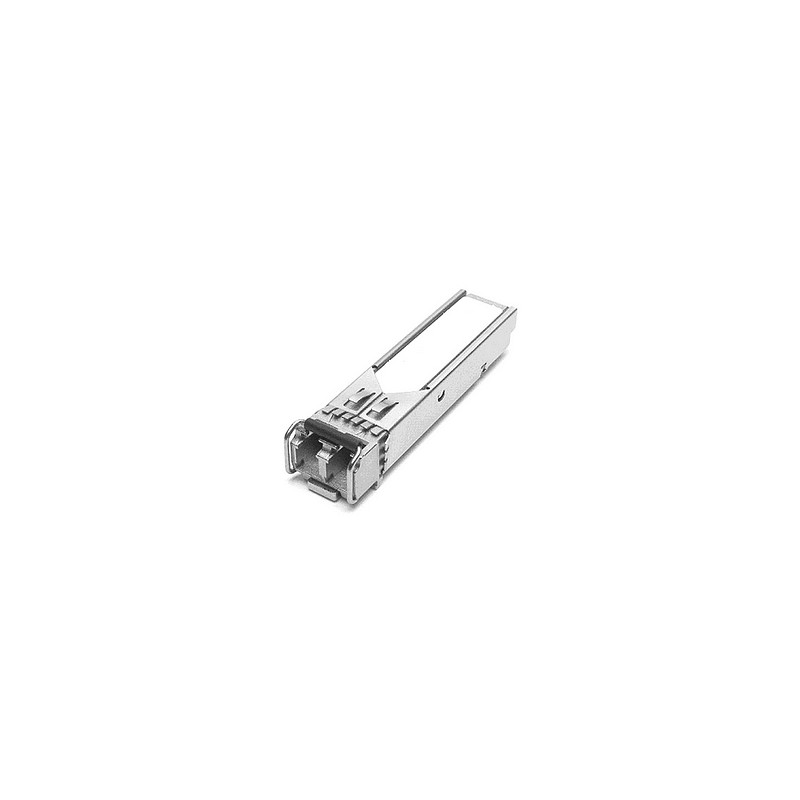

Netgear 10GBASE-LR Lite SFP+ | Netgear Transceivers & Modules
  • Netgear 10GBASE-LR Lite SFP+ | Netgear Transceivers & Modules
AXM764 is NETGEAR 10GBASE-LR “Lite” SFP+ Transceiver, a new class of SMF 10G transmitter with LC duplex connector. While not a standard yet, 10GBASE-LR LITE has a specified reach of 2 km (1.24 mile) over standard 9/125µm single mode fiber. 10GBASE-LR LITE isn’t a replacement for standard 10GBASE-LR optics: it is just relevant alternative for “shorter” reach SMF applications.
Auto MDI/MDI-X Yes
Cable type Single-mode
Cabling technology 10Gbase-LR
Compatible products NETGEAR M5300, M6100, M7100, M7300
Data transfer rate (max) 10000 Mbit/s
Fiber cable diameters supported 9/125 µm
Fiber optic connector LC
Hot-Plug support Yes
Interface type SFP+
Maximum transfer distance 2000 m
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Number of products included 1 pc(s)
Operating relative humidity (H-H) 10 - 80 %
Operating temperature (T-T) 0 - 70 °C
SFP transceiver type LR
Storage relative humidity (H-H) 10 - 85 %
Storage temperature (T-T) -40 - 85 °C

Specific References

EAN13
0606449108767

Netgear 10GBASE-LR Lite SFP+

10GBASE-LR Lite SFP+ Transceiver
Out of Stock
£309.98
Tax excluded
Reference: AXM764-10000S
Quantity
