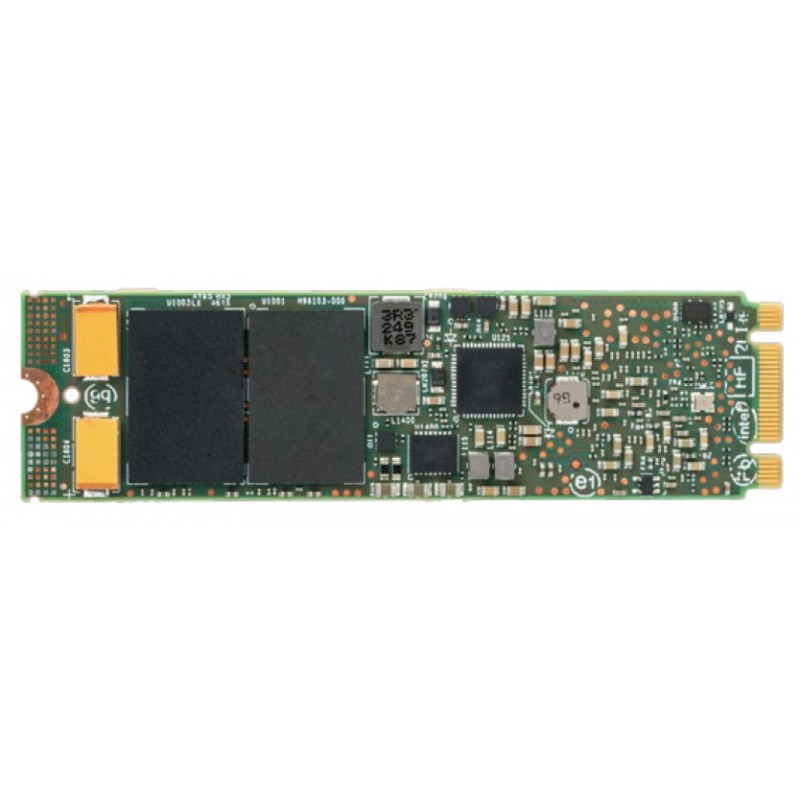

Intel E 7000s 480GB Serial ATA III
  • Intel E 7000s 480GB Serial ATA III
  • Intel E 7000s 480GB Serial ATA III
Superior Choice

Experience the exceptional performance of an Intel® Solid State Drive E 7000s Series. Available in 150GB and 240GB, the Intel® SSD E 7000s Series offers excellent durability, lasting integrity, security, and performance features across a variety of applications, including digital signage and ATMs.



Intel® 3D NAND SSDs

The E 7000s Series is part of the Intel® 3D NAND SSD family of products. Built on breakthrough 3D NAND and delivered by a proven and trusted supplier, Intel® 3D NAND SSDs transform the economics of storage.



Consistent Performance

Lasting integrity and consistency means more value for you and your customers.



Cost of service on an embedded drive is often hundreds of dollars per call. While other drives’ performance may degrade over time, the E 7000s Series offers predictable performance right out of the box and throughout the entire life of the drive. Intel closely evaluates drive fill performance to ensure it is at or near the same level when full as when empty, which helps your business remain competitive without frequent drive replacement.



Built-in Hardware-based Security

The E 7000s Series offers built-in security through AES 256-bit self-encryption to help protect your data.



Helping Avoid the Unexpected

Power Loss Imminent (PLI) technology significantly reduces the possibility of losing data during a power loss event.



Data retention is critical for many embedded applications and IoT solutions.

Acts of nature, careless mistakes, or even inadvertent hot removal of the SSD pose a potential power loss threat. PLI continuously prepares for unexpected power loss, protecting your data to help ensure it will be reliably read or written, even during moments of power loss, for complete confidence.



Proven End-to-End Data Protection

With a demonstrated uncorrectable bit error rate (UBER) and protection against silent data corruption, the E 7000s Series helps give your data the robust protection it deserves.



Benefit from Intel Expertise Across the Entire Technology Spectrum

The E 7000s Series is designed to work with the entire Intel platform: from CPU, to chipset, to network interface, to firmware and drivers. You’ll benefit from engineering across all ingredients, not just the SSDs, empowering you to focus on designing the best possible solution for your customers.



Best for IoT

Your best IoT solutions are built with Intel technology.



Data is vital when it comes to extracting the value of IoT solutions. The E 7000s Series

reliably captures, stores, and manages data to accelerate decision-making.
Colour of product Black,Green
Component for PC/notebook
Data transfer rate 6 Gbit/s
Depth 80 mm
End-to-End Data Protection Y
Enhanced Power Loss Data Protection technology Y
Hardware encryption Y
Intel High Endurance Technology (HET) N
Latency (read) 42 µs
Latency (write) 44 µs
Lithography 16 nm
Mean time between failures (MTBF) 2000000 h
Memory type 3D MLC
Non-operating vibration 3.13 G
Operating shock 1000 g
Operating temperature (T-T) 0 - 70 °C
Operating vibration 2.17 G
Power consumption (idle) 0.6 W
Product type 19
Random read (100% span) 51000 IOPS
Random write (100% span) 12500 IOPS
Security algorithms 256-bit AES
Sequential writing Y
Solid-state drive capacity 480 GB
SSD temperature monitoring Y
Uncorrectable Bit Error Rate (UBER) 1 sector per 10^17 bits read
Weight 9 g
Width 22 mm
Status Launched
Solid-state drive interface Serial ATA III
SSD form factor M.2
Product family Embedded SSDs
Product series Intel® SSD E 7000s Series
Product codename Downieville
Intel® Smart Response Technology N
Intel® Rapid Start Technology N
SSD ARK ID 125898
Power consumption (average) 2.6 W
NAND flash type MLC (Multi Level Cell)
Sequential read speed (ATTO ) 390 MB/s
Sequential write speed (ATTO) 270 MB/s

Specific References

EAN13
0735858348621

Download

SSDSCKJR480G7XA.pdf

Intel E 7000s 480GB Data Sheet

Download (388.78KB)

Intel E 7000s 480GB

SSD E 7000s Series (480GB, M.2 80mm SATA 6Gb/s, 3D1, MLC)
Out of Stock
£274.19
Tax excluded
Reference: SSDSCKJR480G7XA
Quantity
