Intel SSD DC P3520 1.2TB | Intel SSD Drives
  • Intel SSD DC P3520 1.2TB | Intel SSD Drives
  • Intel SSD DC P3520 1.2TB | Intel SSD Drives
  • Intel SSD DC P3520 1.2TB | Intel SSD Drives
  • Intel SSD DC P3520 1.2TB | Intel SSD Drives
  • Intel SSD DC P3520 1.2TB | Intel SSD Drives
  • Intel SSD DC P3520 1.2TB | Intel SSD Drives
  • Intel SSD DC P3520 1.2TB | Intel SSD Drives
Maximum Value Meets Maximum Performance

With the Intel® SSD DC P3520 Series, you can now transition your data center storage solutions from SATA SSDs and HDDs in a cost-effective manner. Built on Intel 3D NAND, the Intel® SSD DC P3520 Series is optimized for high density data center/enterprise configurations. Combined with the low latency and high bandwidth of the NVMe specification, the Intel® DC P3520 Series enables up to 4.7x the performance of SATA―making it ideal for read-intensive workloads. The consistently amazing performance of the Intel® SSD DC P3520 Series provides fast data streams directly to the processor, such as the high-performance Intel® Xeon® processor, for efficient server data transfers. The Intel® SSD DC P3520 Series is built with the data integrity, drive reliability, and performance consistency you expect from Intel.
Colour of product Silver
End-to-End Data Protection Yes
Enhanced Power Loss Data Protection technology Yes
Hardware encryption Yes
Intel High Endurance Technology (HET) No
Internal Yes
Latency (read) 20 µs
Latency (write) 20 µs
Mean time between failures (MTBF) 2000000 h
Memory type MLC
Non-operating vibration 3.13 G
Operating shock 1000 g
Operating temperature (T-T) 0 - 35 °C
Operating vibration 2.17 G
PCI Express interface data lanes X4
Power consumption (idle) 4 W
Power consumption (read) 9 W
Power consumption (write) 11 W
Product type 19
Random read (100% span) 320000 IOPS
Random write (100% span) 26000 IOPS
Read speed 1700 MB/s
Security algorithms 256-bit AES
Solid-state drive capacity 1200 GB
SSD temperature monitoring Yes
TBW rating 1480
Uncorrectable Bit Error Rate (UBER) 1 sector per 10^17 bits read
Weight 125 g
Write speed 1300 MB/s
Status Launched
Solid-state drive interface PCI Express
SSD form factor PCI Experess
Product family Data center SSD
Product series Intel® SSD DC P3520 Series
Product codename Pleasantdale
SSD ARK ID 88732
SSD usage tag Data center

Specific References

EAN13
0675901348676

Download

SSDPE2MX012T701.pdf

Intel SSD DC P3520 1.2TB Data Sheet

Download (340.42KB)

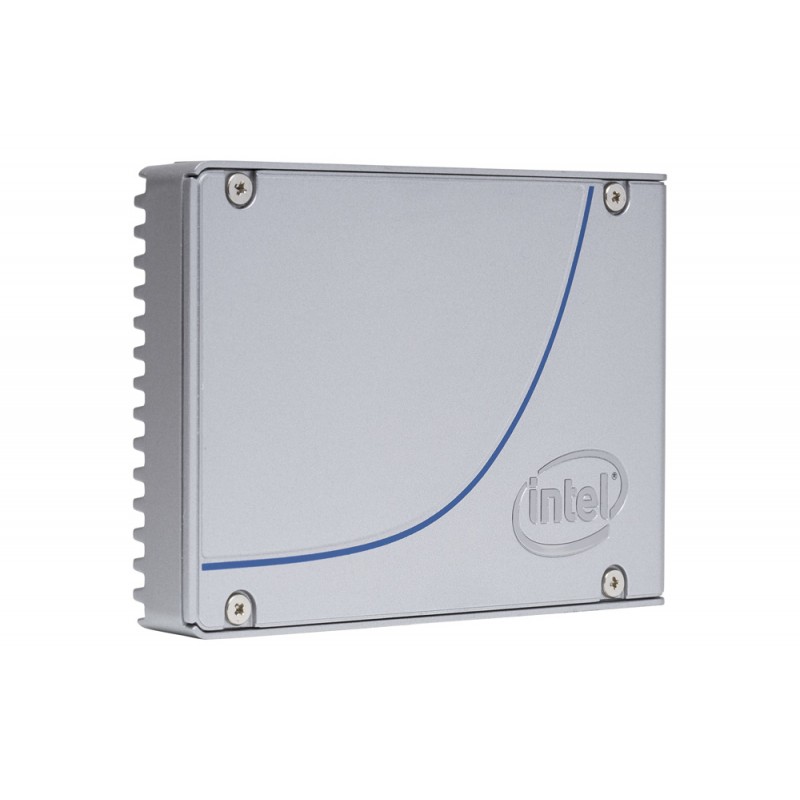

Intel SSD DC P3520 1.2TB

SSD DC P3520 Series (1.2TB, 6.35 cm (2.5 ") PCIe 3.0 x4, 3D1, MLC)
Out of Stock
£585.58
Tax excluded
Reference: SSDPE2MX012T701
Quantity
