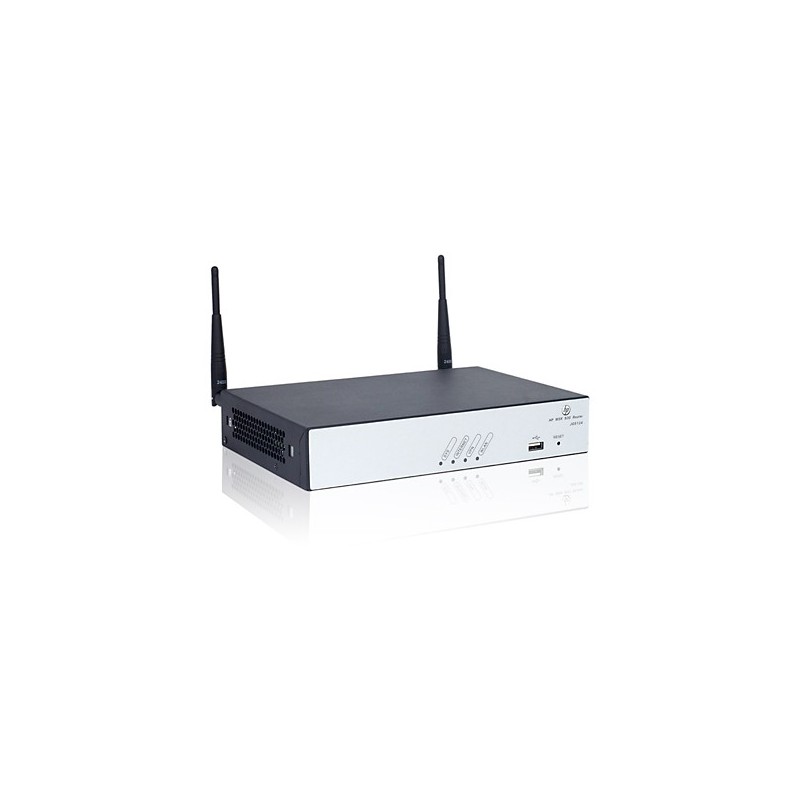

The HP MSR93x Router Series delivers a high-performance small-branch router providing integrated routing, switching, security, SIP, 802.11n WLAN connectivity, and 4G LTE/3G in a single unit. With its Converged Infrastructure, it enables faster time to service and enhanced performance while simplifying your network through a single management screen and zero-touch deployment.
The MSR93x increases flexibility and agility, delivering extensive connectivity capabilities in a compact, fixed form factor. The MSR93x is based on open standards for seamless integration within small-branch deployment.
Features
Enhanced Time to Service and Branch Performance
The HP MSR93x Router Series offers high performance routing with 300 kpps forwarding.
Comprehensive feature set enables branch services that fit your needs, including IPv4 and IPv6 routing, MPLS, QoS, NAT, and VPN.
Integrated security eases the transition to the cloud.
Reduces Complexity and Simplifies Your Network
The HP MSR93x Router Series provides a Converged Infrastructure (CI) with integrated routing/switching/security/SIP.
Reduce total cost of ownership (TCO) through open standards, power and space savings, and energy-efficient hardware.
A single screen with HP Intelligent Management Center (IMC) provides an easy-to-use interface for your administrator.
Zero-touch deployment makes router and VPN set up a breeze.
Common OS across routers delivers increased flexibility across all environments.
Increased Flexibility and Agility Across Your Network
The HP MSR93x Router Series delivers a wide range of connectivity options, including Gigabit Ethernet, Serial, ADSL2+, G.SHDSL, and wireless.
Extensive range of models and accessories enables the right design for your particular requirements.
Based on open standards for ease of network integration.
Strengthen Branch Resiliency with Enterprise-class Features
The HP MSR93x Router Series supports primary and failover 4GE LTE and 3G WAN connectivity enabling service survivability.
Enhanced 802.11n WLAN option provides high throughput.
Dimensions (WxDxH) |
230 x 160 x 43.6 mm |
Electromagnetic compatibility |
ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:200 |
Heat dissipation |
20 BTU/h |
I/O ports |
1 RJ-45 autosensing 10/100/1000 WAN port; 4 RJ-45 autosensing 10/100/1000 LAN ports |
Input voltage |
100 - 240 V |
MAC address table |
10000 entries |
Management platform |
IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB |
Memory and processor |
Processor: RISC @ 533 MHz, 256 MB DDR SDRAM, 128 MB flash |
Operating altitude (imperial) |
up to 6561 ft |
Operating relative humidity range |
5 to 90 % |
Operating temperature range (T-T) |
0 - 40 °C |
Power consumption (typical) |
24 W |
Safety |
UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J |
Size |
230.1 mm (9.06 ") |
Storage temperature range (T-T) |
-40 - 158°F |
Telecom compliance (fax capability) |
FCC part 68 |
Throughput |
up to 300 Kpps (64-byte packets) |
Weight |
1.8 kg (3.97 lb) |
Specific References
- EAN13
- 0887111109613
