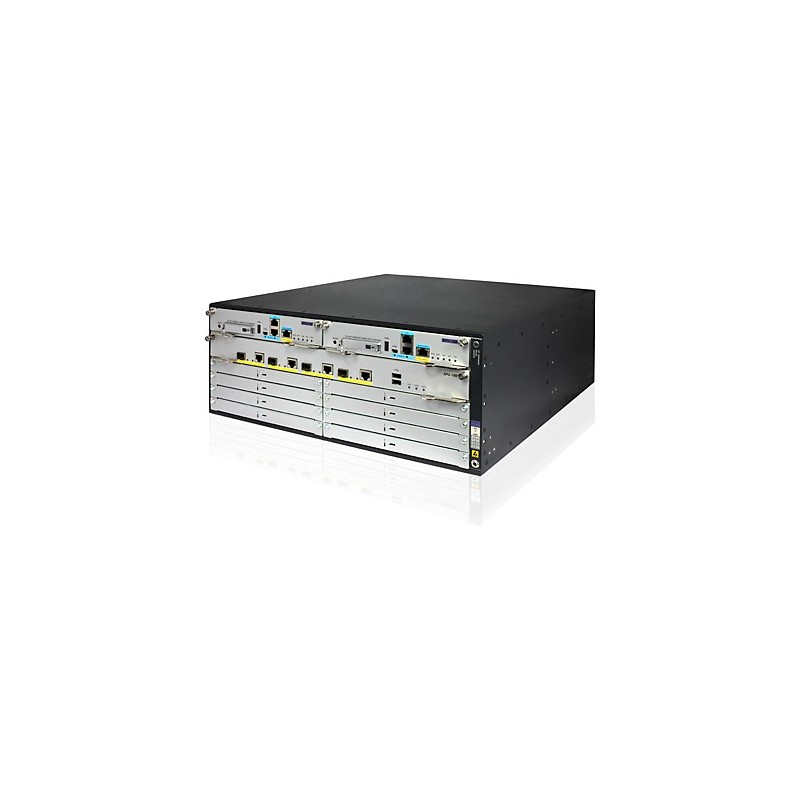

HP MSR4060 Router Chassis
  • HP MSR4060 Router Chassis
The HP MSR4000 Router Series is a family of high-performance, large branch routers that deliver integrated routing, switching, security, VPN, and SIP in a single box. With its integrated infrastructure and modular design, the MSR4000 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance.



The MSR4000 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. Its distributed architecture and high reliability also strengthen the resiliency of large branches.
Dimensions (WxDxH) 440 x 480 x 175 mm
Electromagnetic compatibility EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; F
Form factor 4U height
I/O ports 2 MPU (Main Processing Unit) slots; 1 SPU (Service Processing Unit) slot; 6 HMIM slots; 4 Power Supply slots
Input frequency 50 - 60 Hz
Input voltage 100-120/200-240 VAC
MAC address table 1000000 entries
Management platform IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (s
Memory and processor : MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM: SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM: SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM
Mounting Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package
Operating altitude 5 km
Operating altitude (imperial) up to 16404 ft
Operating relative humidity range 5 to 90 %
Operating temperature range (T-T) 0 - 45 °C
Power requirements No default Power Supply included in the chassis, Min.1/Max.4 power supplies should be ordered
Safety UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Size 439.9 mm (17.32 ")
Storage temperature range (T-T) -40 - 158°F
Telecom compliance (fax capability) FCC part 68; CS-03
Throughput up to 20 Mpps (64-byte packets)
Weight 20.6 kg (45.52 lb)

Specific References

EAN13
0886112790448

Hewlett Packard Enterprise MSR4060 Router Chassis

HP MSR4060 Router Chassis
Out of Stock
£2,923.20
£2,436.00 Ex. VAT
Reference: JG403A
