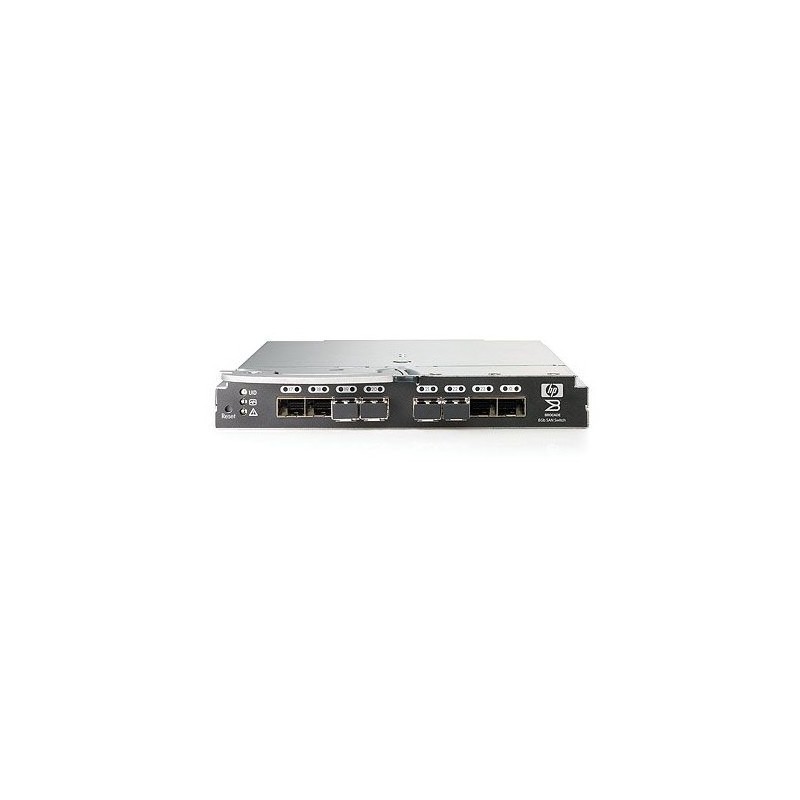

The Brocade 8Gb SAN Switch for HP BladeSystem c-Class delivers an easy to manage embedded Fibre Channel switch with 8 Gb/s performance. The Brocade 8Gb SAN Switch hot-plugs into the back of the HP BladeSystem c-Class Enclosure. The integrated design frees up rack space, enables shared power and cooling, and reduces cabling and small form-factor pluggables. Enhanced trunking support with external switches provides higher bandwidth to enable demanding applications such as server virtualization. New features in the Power Pack+ option enable you to manage data flow to maintain optimized application performance. The 12 or 24 auto-sensing ports support lower bandwidth components for investment protection and an upgrade license enables you to ‘pay as you grow’. The Brocade 8Gb SAN Switch saves space and cost, significantly simplifies the SAN environment, enables easier deployment and management, and delivers the performance required for emerging higher throughput applications.
| Blade types supported | HP BladeSystem c-Class |
| Chassis type | Embedded |
| Dimensions (WxDxH) | 381 x 298.5 x 85.9 mm |
| Manageability features | Brocade CLI and Web Tools (included); Fabric Manager (optional); Power Pack+ (optional) |
| Multimedia | Small Form-Factor Pluggables (8 Gbps SFP+ and 4 Gbps SFP) |
| Optional software | Power Pack+ Software Bundle; Adaptive Networking; ISL Trunking; Advanced Performance Monitoring; Fabric Watch; Extended Fabric; Fabric Manager; Data Center Fabric Manager Enterprise Software; Data Center Fabric Manager Professional Plus Software |
| Port speed rating | 8 Gbps |
| Security algorithms supported | No |
| Source data-sheet | Icecat.biz |
| Supported protocols | Fibre Channel |
| Switch models | Base Full Fabric, Power Pack+ |
| Switching capacity | 384 Gbit/s |
| Upgrade type | Standard 12 or 24-ports; 12-port upgrade LTU available; Upgrade from Base Full Fabric to Power Pack+ |
| Weight | 1.81 kg |
Specific References
- EAN13
- 0887111262202
Hewlett Packard Enterprise Brocade 8/12c SAN Switch for BladeSystem c-Class
Brocade 8/12c SAN Switch for BladeSystem c-Class
£7,185.18
£5,987.65 Ex. VAT
Brocade 8/12c SAN Switch for BladeSystem c-Class
