JG663A is an SC version of the current SD JD229B 48 port PoE+ line card for the 7500 series modular switch. This SC version has the same PoE+ functionality and same 48 ports as JD229B, however, cost savings in TCAM were implemented reducing typically unused table sizes to lower the price of the module to offer a lower entry point than the competition.
| Compatibility | HP 7500 |
| Connectivity LEDs | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Dimensions (WxDxH) | 377 x 355 x 40 mm |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 48 |
| Ethernet LAN data rates | 1000 Mbit/s |
| I/O ports | 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Power over Ethernet (PoE) | Yes |
| Size | 376.9 mm (14.84 ") |
| Weight | 3310 g |
Specific References
- EAN13
- 0887758219362

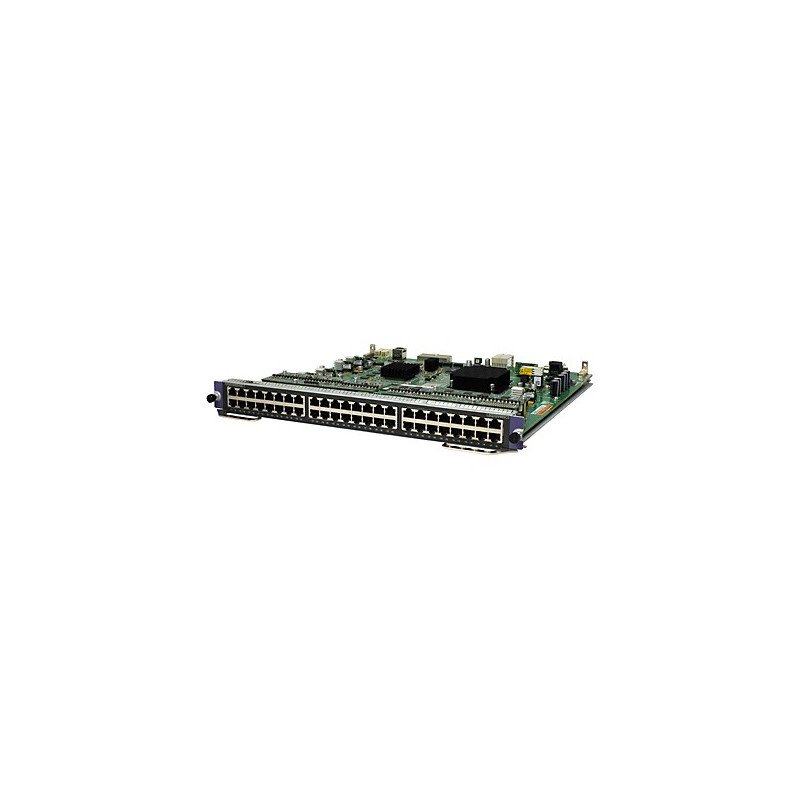

Hewlett Packard Enterprise 7500 48-port 1000BASE-T PoE+ SC Module
HP 7500 48-port 1000BASE-T PoE+ SC Module
£8,751.60
£7,293.00 Ex. VAT
HP 7500 48-port 1000BASE-T PoE+ SC Module
