The next generation of HP Infiniband/Ethernet Adapters for select HP ProLiant SL, DL and ML servers, consists of three adapters, two with a new ALOM form factor known as FlexibleLOM for Racks (FLR), and one PCIe card:
- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544FLR-QSFP Adapter
- HP Infiniband QDR/Ethernet 10Gb 2P 544FLR-QSFP Adapter
- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544QSFP Adapter
Based on next-generation Mellanox ConnectX-3 technology and PCI Express 3.0 for unprecedented scalability and fabric flexibility, they can all function as a dual ported InfiniBand card, a dual ported Ethernet card, or a mixed function card. Together with the next generation of HP Infiniband FDR edge switches, they deliver low-latency InfiniBand bandwidth, up to 56 Gb/s Fourteen Data Rate (FDR) or up to 40 Gb/s Quad Data Rate (QDR), for performance driven server and storage clustering applications in High Performance Computing (HPC) and enterprise data centers.
Next Generation InfiniBand/Ethernet Adapters for Select HP ProLiant SL, DL, and ML Servers.
Performance driven ConnectX-3 architecture for InfiniBand bandwidth up to 56 Gb/s (FDR), Ethernet bandwidth up 40 Gb/s, and reduced application latency for either InfiniBand or Ethernet operation. PCI Express 3.0 x8. Maximum effective network bandwidth through hardware-based traffic segregation (Qos) and congestion control. Low latency 10, 20, or 40 Gb/s Ethernet for FSI environments. Low power requirements, low cost per Gb/s bandwidth.
- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544FLR-QSFP Adapter
- HP Infiniband QDR/Ethernet 10Gb 2P 544FLR-QSFP Adapter
- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544QSFP Adapter
Based on next-generation Mellanox ConnectX-3 technology and PCI Express 3.0 for unprecedented scalability and fabric flexibility, they can all function as a dual ported InfiniBand card, a dual ported Ethernet card, or a mixed function card. Together with the next generation of HP Infiniband FDR edge switches, they deliver low-latency InfiniBand bandwidth, up to 56 Gb/s Fourteen Data Rate (FDR) or up to 40 Gb/s Quad Data Rate (QDR), for performance driven server and storage clustering applications in High Performance Computing (HPC) and enterprise data centers.
Next Generation InfiniBand/Ethernet Adapters for Select HP ProLiant SL, DL, and ML Servers.
Performance driven ConnectX-3 architecture for InfiniBand bandwidth up to 56 Gb/s (FDR), Ethernet bandwidth up 40 Gb/s, and reduced application latency for either InfiniBand or Ethernet operation. PCI Express 3.0 x8. Maximum effective network bandwidth through hardware-based traffic segregation (Qos) and congestion control. Low latency 10, 20, or 40 Gb/s Ethernet for FSI environments. Low power requirements, low cost per Gb/s bandwidth.
| Certification | FCC, Class A ICES, Class A EN55022, Class A EN55024, Class A EN61000-3-2, Class A EN61000-3-3, Class A VCCI, Class A MIC, Class A BSMI, Class A |
| Colour of product | Grey |
| Compatible memory cards | No |
| Connectivity technology | Wired |
| Connector(s) | InfiniBand |
| Data transfer rate | 10 Gbit/s |
| Host interface | PCI-E |
| Networking standards | IEEE 802.3 |
| Operating temperature range (T-T) | 0 - 55 °C |
| Ports quantity | 2 |
| Power consumption (typical) | 9.8 W |
| Source data-sheet | Icecat.biz |
| Wireless LAN connection | No |
Specific References
- EAN13
- 0886111482115

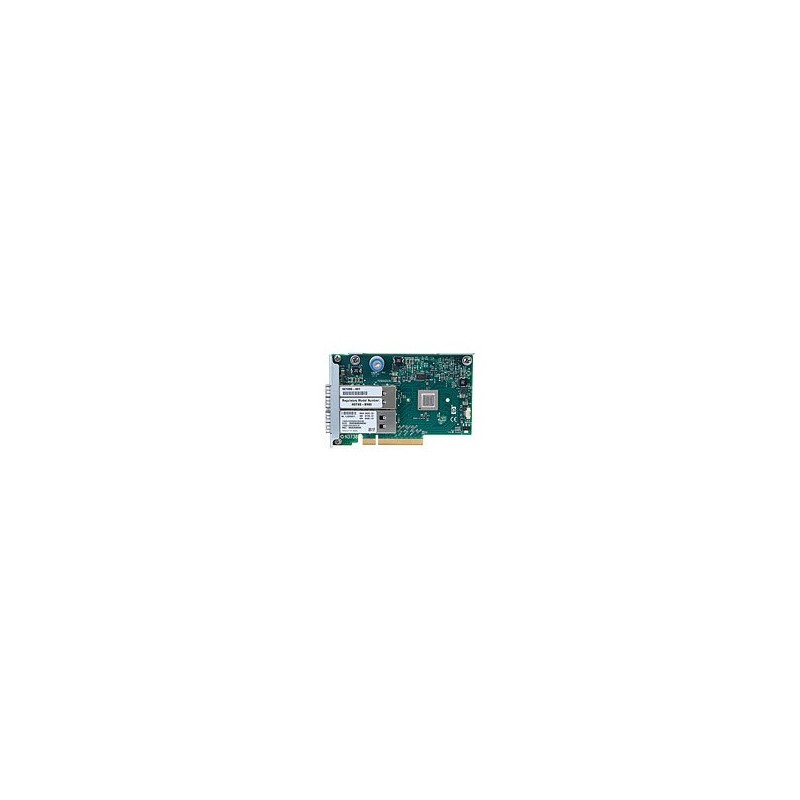

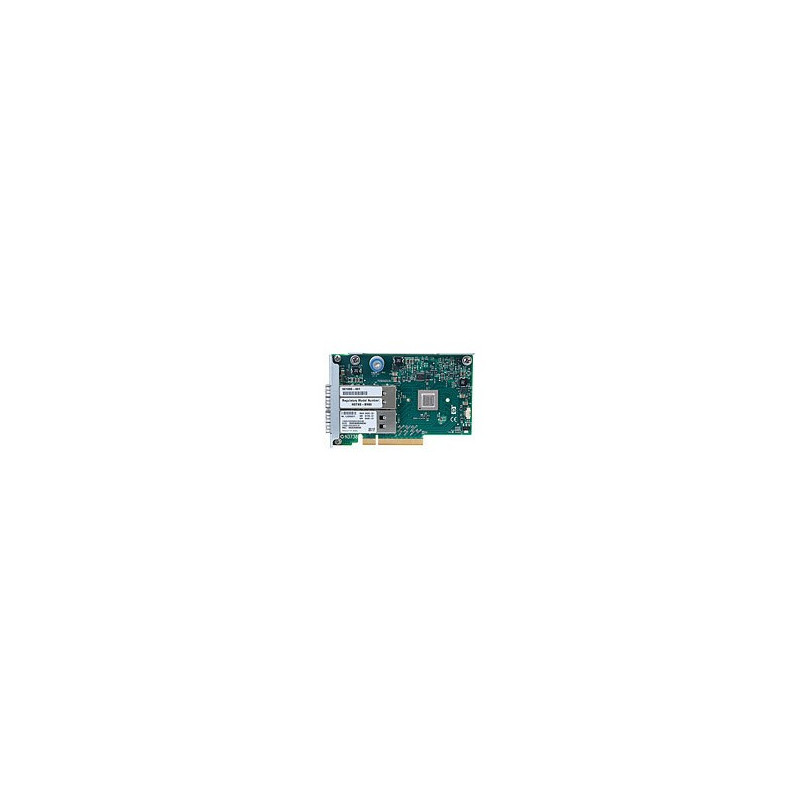

Hewlett Packard Enterprise 649283-B21
2 x InfiniBand, PCIe, 10Gb/s,9.8W Max
£956.54
£797.12 Ex. VAT
2 x InfiniBand, PCIe, 10Gb/s,9.8W Max
