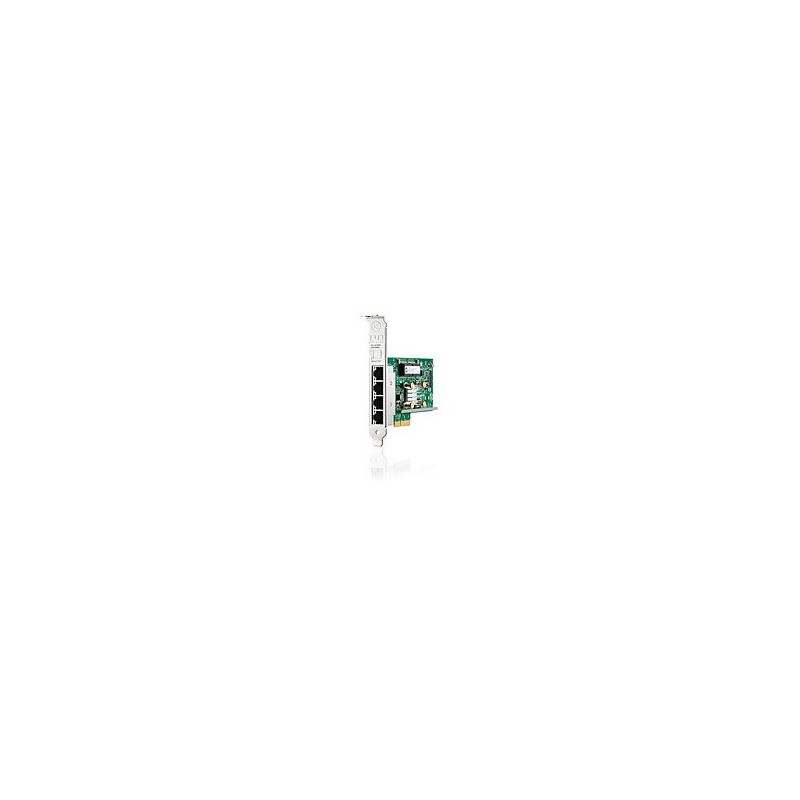

HP Ethernet 1Gb 4-port 331T Adapter
The HP Ethernet 1Gb 4-Port 331T Adapter features the next generation of Ethernet integration, offering a single chip solution that reduces power requirements and optimizes I/O slot utilization. It delivers full line-rate performance across all ports with low power consumption. The HP 331T is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 4Gb meets the needs of customers desiring high bandwidth. The HP 331T supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.



The HP 331T is designed for maximum throughput and high port density.

An aggregate, full duplex transfer rate of 8 Gbps per adapter delivers outstanding network performance that improves response time and removes bottlenecks. Comprehensive stateless offloads optimize host efficiency and VM density by leaving host CPU available for other duties. Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of consolidated virtual workloads. Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores. Support for Energy Efficient Ethernet (EEE) reduces operating expenses.
Cabling technology10/100/1000BaseT(X)
CertificationFCC Part 15 Class B ICES=--3, Issue 4 VCCI V3 (2010.04) Class B KN22 ClassB, KN24 EN55022:2006+A12007 class B EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008 EN55022:2006 + A1:2007 Class B UL/cUL CE EN 60590
ChipsetBroadcom BCM5719
Colour of productGreen, Grey
Compatible memory cardsNo
Compatible operating systemsWindows Server 2008 (32/64), Enterprise, Web, Embedded, R2 Microsoft Windows HPC Server 2008 Microsoft Windows 2008 Standard (32/x64) Microsoft Windows 2008 Enterprise (32/x64) Microsoft Windows Small Business Server 2011 (SBS V7) Microsoft Windows Small
Connectivity technologyWired
Connector(s)RJ-45
Data transfer rate (max)2000 Mbit/s
Depth132.1 mm
Ethernet LAN (RJ-45) ports quantity4
Ethernet LAN connectionYes
Ethernet LAN data transfer rates10, 100, 1000 Mbit/s
Host interfacePCI-E
InterfaceEthernet
Maximum operating distance100 m
Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Operating relative humidity range10 - 90 %
Operating temperature range (T-T)0 - 55 °C
Source data-sheetIcecat.biz
Storage relative humidity range5 - 95 %
Storage temperature range (T-T)-65 - 85 °C
Wireless LAN connectionNo
