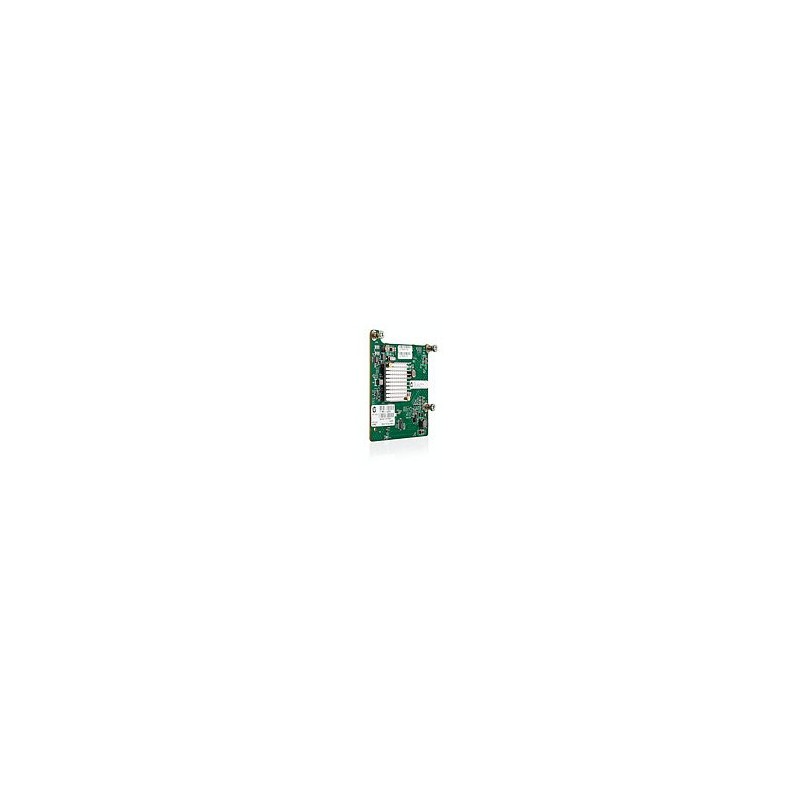

Hewlett Packard Enterprise Flex-10 530M

2 Ports, Mezzanine, PCIe v2.0 x8, 10GbE, 900MB, Broadcom BCM 57810S, 12W Max

More details

631884-B21

Out of Stock

The HP 530M is a dual-port 10GbE adapter, featuring the next generation, single-chip 10Gb Ethernet solution from Broadcom in ... Read More

Free tester with every 5 boxes of cable

New product

£918.99 Inc. VAT

£765.83

Checkout

  • More Info

  • Details

The HP 530M is a dual-port 10GbE adapter, featuring the next generation, single-chip 10Gb Ethernet solution from Broadcom in a mezzanine form factor designed for HP BladeSystem c-Class Gen8 servers. The HP 530M FlexibleLOM adapter delivers full line-rate performance across all ports with low power consumption. The HP 530M provides high performance Ethernet connectivity with support for HP Virtual Connect Flex-10 interconnect technology, allowing the benefits of virtualization to extend beyond the server and into the rest of the infrastructure. The HP 530M supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot, and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors Technology enhances server performance while reducing energy use and expense.



Single-chip, dual-port 10Gb Ethernet mezzanine card designed for HP BladeSystem c-Class Gen8 servers.



20 Gbps full duplex Ethernet transfer rate per port (40 Gbps aggregate) to provide the network performance needed to improve response times and alleviate bottlenecks for the most demanding workloads in next generation data centers. Comprehensive stateless offloads to optimize host efficiency and VM density by leaving host CPU available for other duties. Virtualization support for VMware NetQueue and Microsoft VMQ to meet the performance demands of consolidated virtual workloads. Support for MSI/MSI-X to provide performance benefits for multi-core servers by load balancing interrupts between CPUs/cores. Stateful hardware offload for TCP/IP: TCP Offload Engine (TOE).
CertificationFCC Class A ICES=--3, Issue 4 VCCI V3 (2010.04) Class A EN55022:2006 + A1:2007 Class A EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008 BSMI, CNS13438 (2006) Class A EN55022:2006+A12007 class A KN22 Class A, KN24 CE EN 60590 UL/cUL
ChipsetBroadcom BCM 57810S
Colour of productGreen
Compatible memory cardsNo
Compatible operating systemsWindows Server 2008/ 2008 R2 Red Hat Enterprise Linux (RHEL) 5.7/6.1 SUSE Linux Enterprise Server (SLES) 10SP4/11 SP1 Solaris 10
Connectivity technologyWired
Data transfer rate10 Gbit/s
Ethernet LAN connectionYes
Height247.65 mm
Host interfacePCI-E
Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
Operating relative humidity range10 - 90 %
Operating temperature range (T-T)0 - 55 °C
Ports quantity2
Source data-sheetIcecat.biz
USB poweredNo
Weight450 g
Width57.15 mm
Wireless LAN connectionNo
EAN0885631862599
ManufacturerHP
