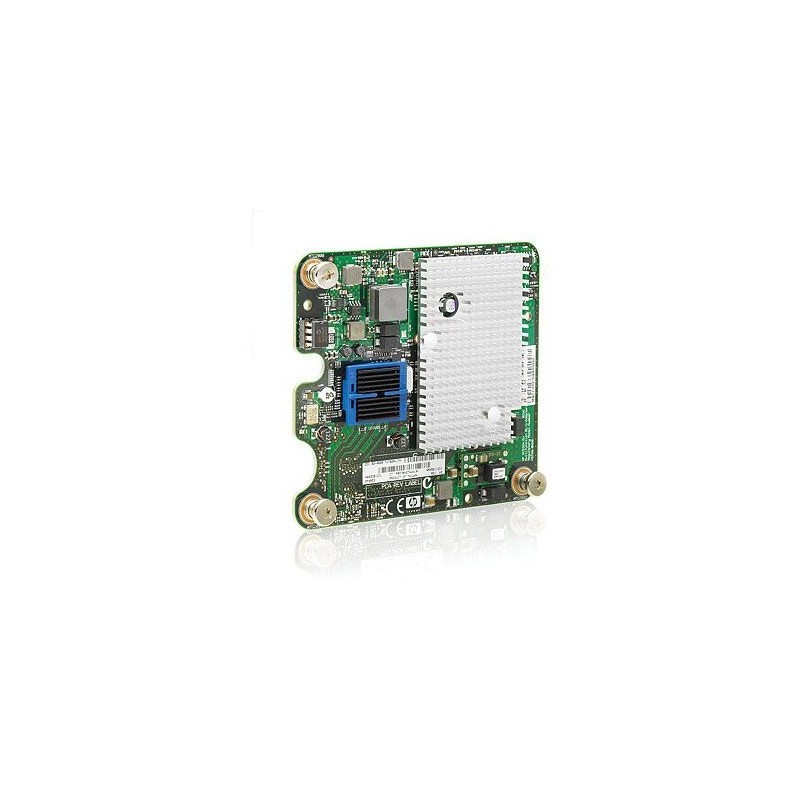

The NC532m is a multifunction 10 Gigabit Ethernet network adapter for the ProLiant c-Class BladeSystem. The adapter is a dual port 10GbE mezzanine, that when paired with the new 10Gb Virtual Connect Module provides up to eight physical function NICs that can be configured to operate at any speed from 100Mbs to 10Gbs. The NC532m works as a standard dual port 10GbE NIC when connected to non Virtual Connect devices such as the HP 6120XG. The adapter ships with support for VLAN tagging, QoS, teaming (bonding), Receive Side Scaling (RSS), PXE.; The NC532m adapter is supported in ProLiant c-class server Type I and II mezzanine slots allowing customers to provision their servers with unprecedented bandwidth never before available in a blade.
What's New
- Type I adapter fits all server mezzanine slots for maximum flexibility
- Supports HP's exclusive Flex-10 technology
- Dual 10Gb ports provides up to 40Gbs duplex bandwidth
Performance
The HP NC532m Dual Port 10GbE Multifunction BL-c Adapter delivers outstanding network performance that improves response time and removes bottlenecks required for the next generation data center
It allows you to evolve 10 Gb at your own speed! When paired with the HP Virtual Connect Flex-10 10Gb Ethernet Modules, take advantage of the Flex Nics, which are PCI Physical Function devices that are OS independent.
What's New
- Type I adapter fits all server mezzanine slots for maximum flexibility
- Supports HP's exclusive Flex-10 technology
- Dual 10Gb ports provides up to 40Gbs duplex bandwidth
Performance
The HP NC532m Dual Port 10GbE Multifunction BL-c Adapter delivers outstanding network performance that improves response time and removes bottlenecks required for the next generation data center
It allows you to evolve 10 Gb at your own speed! When paired with the HP Virtual Connect Flex-10 10Gb Ethernet Modules, take advantage of the Flex Nics, which are PCI Physical Function devices that are OS independent.
| Cabling technology | 10/100/1000BaseT(X) |
| Colour of product | Green |
| Connectivity technology | Wired |
| Data transfer rate | 10 Gbit/s |
| Data transfer rate (max) | 40000 Mbit/s |
| Depth | 22.2 mm |
| Dimensions (WxDxH) | 36.5 x 22.2 x 287.2 mm |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Height | 287.2 mm |
| Interface | Ethernet |
| Internal | Yes |
| Ports quantity | 2 |
| Power consumption (typical) | 15 W |
| Quick start guide | Yes |
| Source data-sheet | Icecat.biz |
| Weight | 450 g |
| Width | 36.5 mm |
Specific References
- EAN13
- 4948382560476
Hewlett Packard Enterprise NC532m
NC532m - 10Gb Ethernet, Duplex, Flex-10 technology, 15W
£759.95
£633.29 Ex. VAT
NC532m - 10Gb Ethernet, Duplex, Flex-10 technology, 15W
