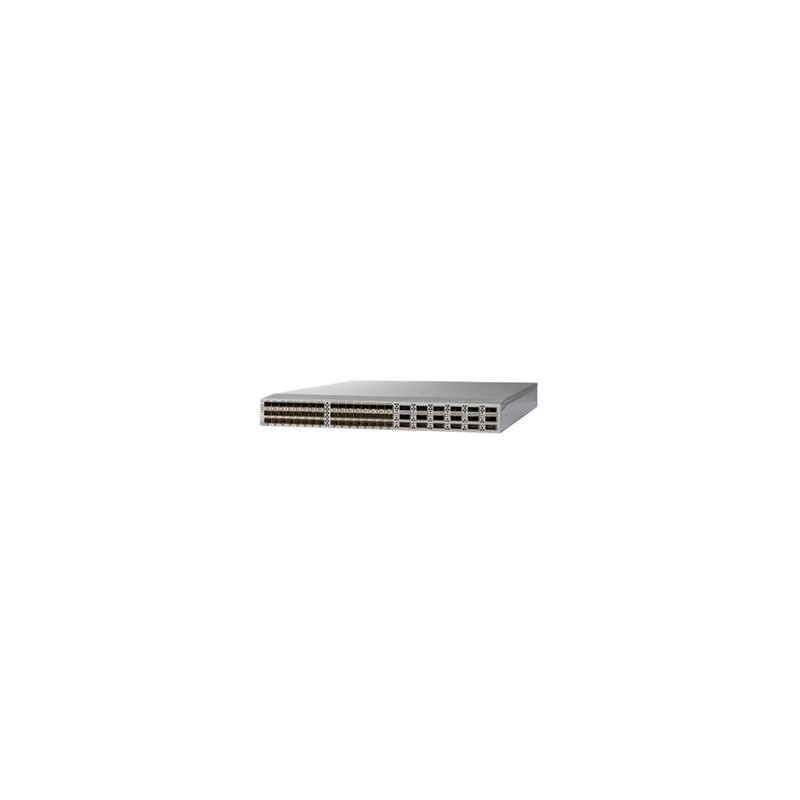

Cisco Nexus 92300YC Managed L2/L3 None Grey
  • Cisco Nexus 92300YC Managed L2/L3 None Grey
  • Cisco Nexus 92300YC Managed L2/L3 None Grey
Built on the latest Cisco®Cloud Scale technology, the Cisco Nexus®9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.



The Cisco Nexus 92300YC Switch is a top-of-rack switch that supports 6.0 Tbps of bandwidth and over 4.75 bpps across 48 x 1/10/25-Gbps SFP28 and 18 x 40/100-Gbps QSFP28 ports. It is ideal for 25G sever access and 1:1 subscription networks, in a compact form factor.
10G support Yes
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports type None
Built-in processor Y
Certification UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Console port RJ-45
DC input voltage 72 V
Depth 566 mm
Fiber optic connector QSFP28,SFP+
Flash memory 128000 MB
Forwarding rate 4750 Mpps
Height 50.8 mm
IGMP snooping Y
Internal memory 16000 MB
LED indicators Y
MAC address table 92000 entries
Mean time between failures (MTBF) 365610 h
Multicast support Y
Noise level 71.5 dB
Number of fans 4 fan(s)
Number of VLANs 3967
Operating altitude 0 - 4000 m
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 30 MB
Power consumption (max) 603 W
Power consumption (typical) 260 W
Power over Ethernet (PoE) No
Rack mounting Yes
Redundant power supply (RPS) support Y
Routing protocols HSRP
Spanning tree protocol Y
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2/L3
Switch type Managed
Switching capacity 6000 Gbit/s
USB 2.0 ports quantity 1
VLAN support Y
Web-based management Y
Width 438 mm
SFP+ module slots quantity 48
QSFP+ module slots quantity 18
Switching optical modules type 100 Gigabit Ethernet
Product colour Grey
Multiprotocol Label Switching (MPLS) Y
Airflow direction Back-to-front airflow,Front-to-back airflow

Specific References

EAN13
0889728004862

N9K-C92300YC.pdf

Cisco 92300YC Data Sheet

Cisco 92300YC

Cisco Nexus 92300YC Switch, 48 x 1/10/25-Gbps SFP+ ports, 18 x 40/100-Gbps QSFP28 ports, 6 Tbps, 2RU
Out of Stock
£17,582.33
Tax excluded
Reference: N9K-C92300YC
Quantity
