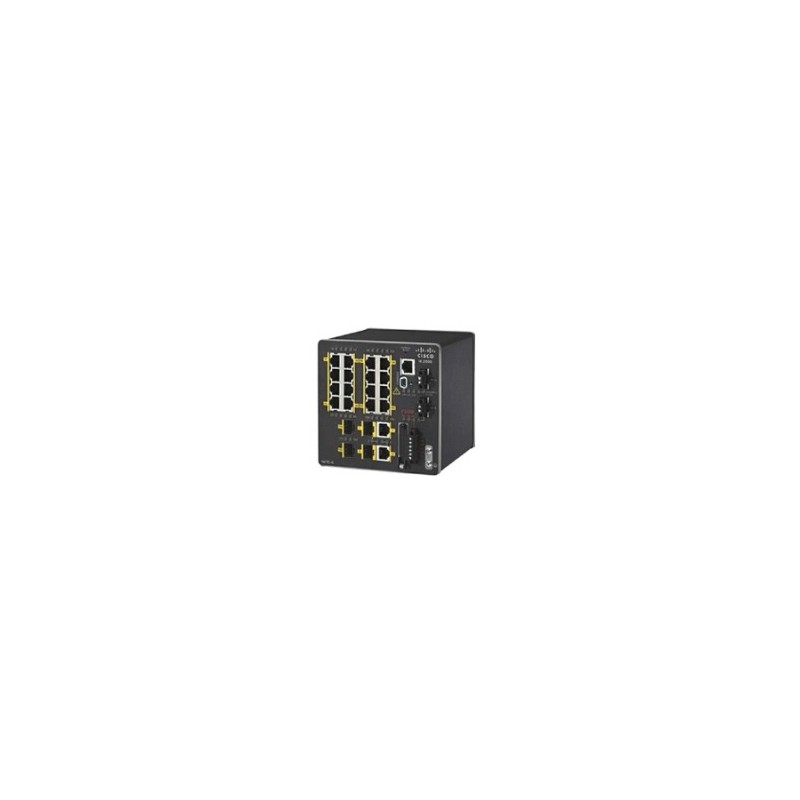

Cisco IE-2000-16TC-G-N
  • Cisco IE-2000-16TC-G-N
  • Cisco IE-2000-16TC-G-N
The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP).



Product Details



The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:



- Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor

- Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink

- Dual-input DC power supply, alarm relays, DIN rail mount

- Industrial Power over Ethernet (PoE) solution

- Conformal coating available

- Swappable SD flash card and mini-USB connector

- Industrial environmental compliance and certifications

- Industrial partner applications: Ethernet/IP and PROFINET



Primary Benefits and Features



- Easy deployment: Zero-touch discovery using Dynamic Host Control Protocol (DHCP), express setup, and fast bootup time (60 seconds) to help in migrating to an Ethernet environment without resistance.

- Security: 802.1x, port security, and DHCP allow dynamic port-based authentication; Secure Shell (SSHv2); SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions; TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users.

- Resiliency: Flex links for fast recovery; Cisco REP protocol for fast convergence.

- Manageability: Auto SmartPort, Web Device Manager, Telnet, HTTPS access, SNMP, CNA, and Cisco Prime Infrastructure 1.2.1.

- Network Address Translation (NAT): Line-rate, hardware-enabled 1:1 static address translation designed to enable duplicate IP address usage in the Layer 2 machine node networks.

- Industrial PoE: PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models.

- Industrial automation protocols: Common Industrial Protocol (CIP) and PROFINETv2 allow integration with existing management platforms from Rockwell, Siemens, and others.



Product Specifications



Switch Performance and Scalability



- Line-rate, nonblocking uplink, downlink ports

- Forwarding rate: 6.5 Mpps with 64-byte packets

- Egress buffer: 2 MB

- Unicast MAC addresses: 8000

- Internet Group Management Protocol (IGMP) multicast groups: 255

- Maximum virtual LANs (VLANs): 255

- IPv4 MAC security ACEs: 384 (default ternary content-addressable memory [TCAM] template)

- Bidirectional, 128 NAT translation entries
10G supportNo
AC input voltage110-220 V
Access Control List (ACL)Yes
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Broadcast storm controlYes
Case designBuilt-in
CertificationFCC, IEC/EN 55022A, VCCI, AS/NZS CISPR 22, CISPR 11, CISPR 22, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-64, EN 61373, UL/CSA, CE, AS/NZ RCM, BSMI, KCC, ANATEL, RoHS
Colour of productBlack
Combo SFP ports quantity2
DC-in jackYes
Depth114.6 mm
DHCP serverYes
Fast Ethernet (copper) ports quantity16
Flash memory64 MB
Full duplexYes
Height127 mm
IGMP snoopingYes
Internal memory256 MB
IP routingYes
Link aggregationYes
MAC address filteringYes
MAC address table8000 entries
Management protocolsSNMPv3
Mean time between failures (MTBF)374052 h
Multicast supportYes
Networking standardsIEEE 1588,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of multicast groups filtered255
Number of VLANs255
Operating altitude0 - 4572 m
Operating temperature (T-T)-40 - 70 °C
Packet buffer memory2 MB
Power consumption (typical)15 W
Power over Ethernet (PoE)No
Quality of Service (QoS) supportYes
SafetyUL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, CB IEC 60950-1, NOM NOM-019-SCF1
Security algorithmsFIPS 140-2,SSH-2
Spanning tree protocolYes
SSH/SSL supportYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 85 °C
Switch layerL2
Switch typeManaged
Throughput6.5 mpps
USB 2.0 ports quantity1
VLAN supportYes
Web-based managementYes
Weight1970 g
Width129.54 mm
SFP module slots quantity2
BPDU filtering/protectionYes
Traffic shapingYes

IE-2000-16TC-G-N.pdf

Cisco IE-2000-16TC-G-N Data Sheet

Download (755.5k)

Similar products

  • Cisco IE-2000-16PTC-G-E
    Cisco IE-2000-16PTC-G-E
  • Cisco IE-2000-16PTC-G-L
    Cisco IE-2000-16PTC-G-L
  • Cisco IE-2000-16T67P-G-E
    Cisco IE-2000-16T67P-G-E
  • Cisco IE-2000-4S-TS-G-B
    Cisco IE-2000-4S-TS-G-B

Cisco IE-2000-16TC-G-N

16x 10/100Base-T Ethernet, 2x GE Combo, 2x SFP, Enhanced LAN Base, IEEE 1588, NAT

IE-2000-16TC-G-N

Out of Stock

£4,151.95
£3,459.96 Ex VAT.
