Developed specifically to withstand the harshest industrial manufacturing environments, these switches offer today’s most flexible and scalable industrial Ethernet platform that will grow with your network.



Product Overview

The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.



The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.



The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
10G support No
Access Control List (ACL) Yes
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Yes
Combo SFP ports quantity 4
Depth 612 mm
DHCP server Yes
Full duplex Yes
Height 509 mm
IGMP snooping Yes
Input current 3.7 A
Link aggregation Yes
MAC address table 16000 entries
Management protocols Fast Boot, Express Setup, Web Device Manager, Cisco Network Assistant, Cisco Prime™ platform, MIB, SmartPort, SNMP, syslog, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM size configuration, DOM (di
Multicast support Yes
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of queues 4
Number of VLANs 1000
Operating temperature (T-T) -40 - 70 °C
Power consumption (typical) 40 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 8
Quality of Service (QoS) support Yes
Rate limiting Yes
Security algorithms FIPS 140-2,SNMP,SSH
SSH/SSL support Yes
Switch layer L2
Weight 2880 g
Width 612 mm
ARP inspection Yes
BPDU filtering/protection Yes
Authentication MAC-based authentication

Specific References

EAN13
0882658733383

IE-4000-4GS8GP4G-E.pdf

Cisco Industrial Ethernet 4000 Data Sheet

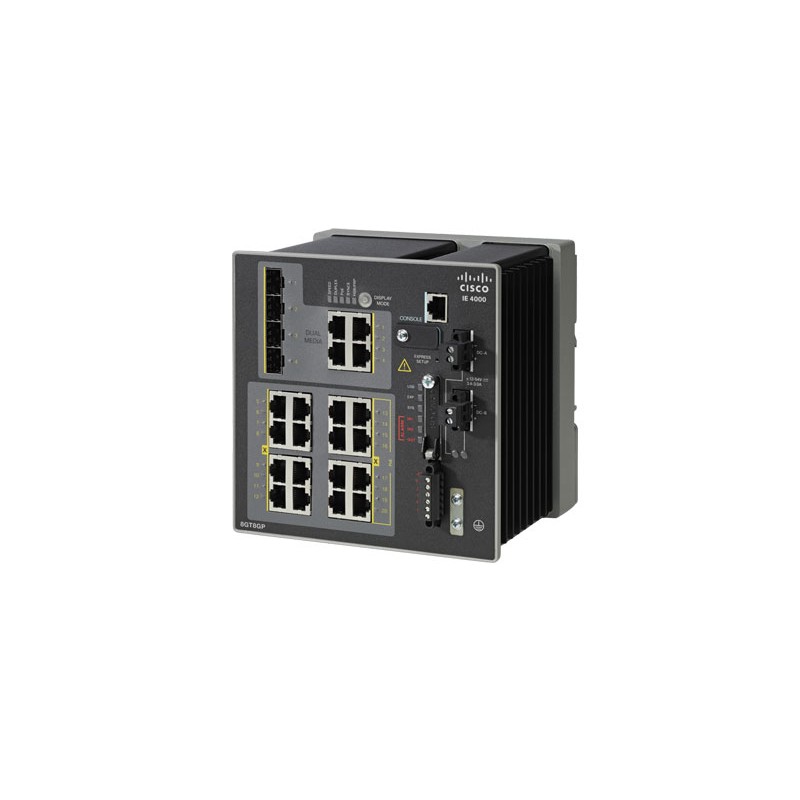

Cisco Industrial Ethernet 4000

16x Port, 4x SFP Fiber, 8x PoE/PoE+, 3.7A, 40W, IPv4/IPv6, Layer 2, 2.88kg
Out of Stock
£5,180.21
Tax excluded
Reference: IE-4000-4GS8GP4G-E
Quantity
