The Cisco® Industrial Ethernet (IE) 5000 Series Switches with four 10 Gigabit or four 1 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line rate aggregation and copper Power over Ethernet (PoE) connectivity in the harshest of industrial environments.
The IE 5000 Series uses superior high-bandwidth hardware switching and proven Cisco IOS® Software. The IE 5000 is highly secure and scalable for access and aggregation layer deployments. It also provides Cisco stackable technologies for advanced network reliability. The switch is built to withstand extreme environments while adhering to overall ITnetwork design, compliance, and performance requirements.
The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth with available 10 Gigabit Ethernet interfaces, a richer feature set, and enhanced hardware, the Cisco IE 5000 Series Switches complement the current Industrial Ethernet portfolio of products. This portfolio includes Cisco industrial Ethernet switches, such as the Cisco IE 2000, IE 3000, IE 3010, IE 4000, and IE 4010 Series Switches, as well as utility- focused products, such as the Cisco IE 2000U Industrial Ethernet switches and Cisco 2500 Series Connected Grid Switches.
Through a user-friendly web device manager, the IE 5000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
The IE 5000 Series uses superior high-bandwidth hardware switching and proven Cisco IOS® Software. The IE 5000 is highly secure and scalable for access and aggregation layer deployments. It also provides Cisco stackable technologies for advanced network reliability. The switch is built to withstand extreme environments while adhering to overall ITnetwork design, compliance, and performance requirements.
The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth with available 10 Gigabit Ethernet interfaces, a richer feature set, and enhanced hardware, the Cisco IE 5000 Series Switches complement the current Industrial Ethernet portfolio of products. This portfolio includes Cisco industrial Ethernet switches, such as the Cisco IE 2000, IE 3000, IE 3010, IE 4000, and IE 4010 Series Switches, as well as utility- focused products, such as the Cisco IE 2000U Industrial Ethernet switches and Cisco 2500 Series Connected Grid Switches.
Through a user-friendly web device manager, the IE 5000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Certification | CE, RoHS, TAA |
| Compatible memory cards | SD |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-TX |
| Depth | 356 mm |
| DHCP server | Y |
| Electromagnetic compatibility | FCC 47 CFR Part 15 Class A, EN 55022A Class A, VCCI Class A |
| Flash memory | 256 MB |
| Form factor | 1U |
| Forwarding rate | 41.67 mpps |
| Full duplex | Y |
| Gigabit Ethernet (copper) ports quantity | 12 |
| Height | 44.5 mm |
| IGMP snooping | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address filtering | N |
| MAC address table | 16000 entries |
| Mean time between failures (MTBF) | 390190 h |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Non-operating altitude | 0 - 4572 m |
| Number of queues | 4 |
| Number of VLANs | 1005 |
| Operating altitude | 0 - 4206 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Power consumption (max) | 90 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 12 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Safety | UL/CSA 60950-1, EN 60950-1 |
| Security algorithms | SNMPv3,SSH |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Surge protection | Y |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| VLAN support | Y |
| Width | 445 mm |
| ARP inspection | Y |
| Private VLAN | Y |
| SFP module slots quantity | 16 |
| Port-based VLAN | Y |
| DHCP snooping | Y |
| DHCP relay | Y |
| Static route | Y |
| Product colour | Black |

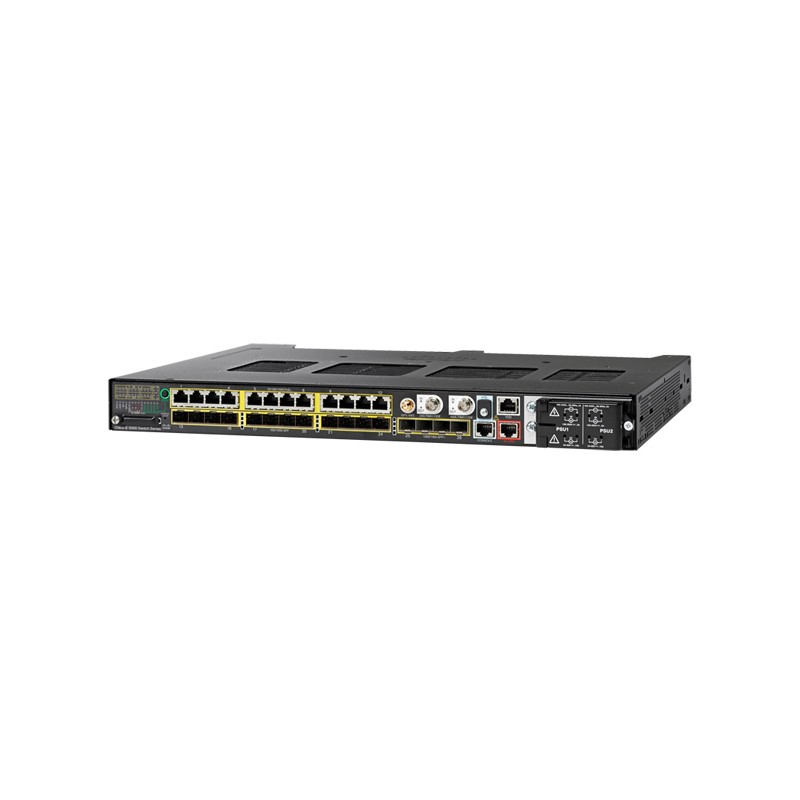

Cisco IE-5000
Industrial Ethernet Switch, 12x 10/100/1000BASE-TX RJ45 PoE/PoE+ Ports, 12x FE/GE SFP Ports, 4x 1G SFP Uplink Ports, Spare
£8,319.82
£6,933.18 Ex. VAT
Industrial Ethernet Switch, 12x 10/100/1000BASE-TX RJ45 PoE/PoE+ Ports, 12x FE/GE SFP Ports, 4x 1G SFP Uplink Ports, Spare
