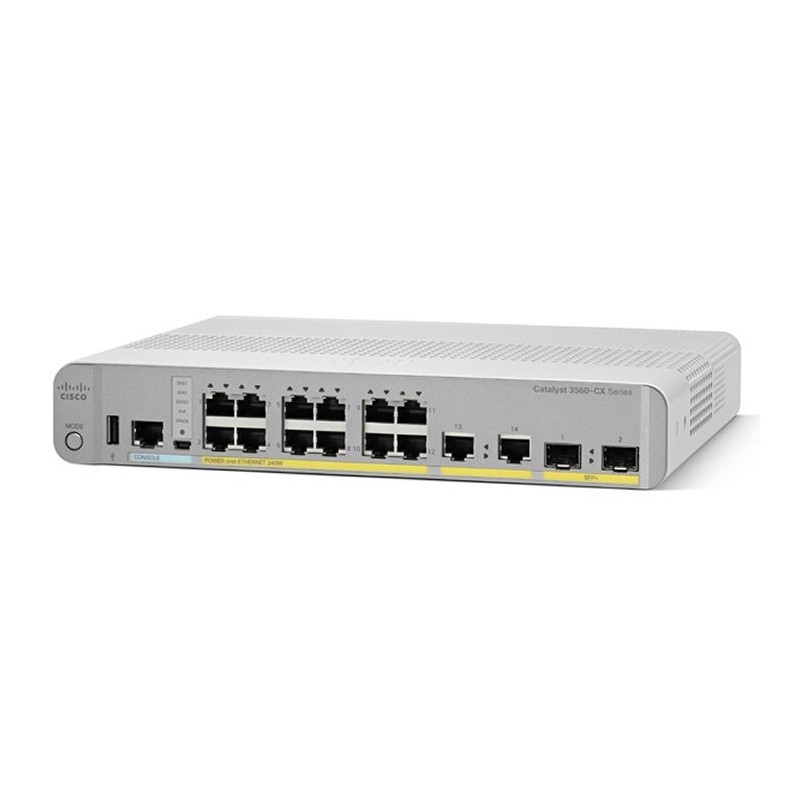

Cisco Catalyst 3560-CX Managed L3 Gigabit Ethernet (10/100/1000) White 1U Power over Ethernet (PoE)
  • Cisco Catalyst 3560-CX Managed L3 Gigabit Ethernet (10/100/1000) White 1U Power over Ethernet (PoE)
  • Cisco Catalyst 3560-CX Managed L3 Gigabit Ethernet (10/100/1000) White 1U Power over Ethernet (PoE)
The Cisco® Catalyst® Compact Switches easily expand your Ethernet and Multigigabit Ethernet Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect PoE devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging. With speeds that reach 10Gbps, the Cisco Catalyst 3560CX Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.



The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) and Multigigabit Ethernet (mGig) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE+) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Cisco Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.



With their quiet, fanless design and compact footprint, these switches offer flexible mounting options and open up

a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.



Cisco Catalyst 3560-CX and 2960-CX Series Compact Switch Highlights



- 8 or 12 Gigabit Ethernet ports with line rate forwarding performance

- 6 Gigabit Ethernet plus 2 Multigigabit Ethernet (100 Mbps/1/2.5/5/10 Gbps) ports with line rate forwarding performance (selected model)

- Gigabit and Multigigabit (100 Mbps/1/2.5/5/10 Gbps) copper, small form-factor pluggable (SFP) or10G SFP+ uplinks

- Power over Ethernet Plus (PoE+) support with up to 240W of PoE budget

- Power over Ethernet (PoE) pass-through enables the compact switch to draw Cisco Universal PoE (Cisco UPOE™) power from the wiring closet and pass it to end devices (selected model) with the additional option to be powered by auxiliary AC-DC or DC-DC power adapter

- Cisco Instant Access mode to enable single point of management and simplify operation (selected models)

- Advanced Layer 2 (LAN Base) and Layer 3 (IP Base) support with an option to upgrade to IP services

- Fanless design and silent operation

- Enhanced Limited Lifetime Warranty (E-LLW)



Switch Models



The Cisco Catalyst Compact Switches are available in nine switch models. They vary by whether they support both Layer 2 and Layer 3 services or Layer 2 services only; whether they support Power over Ethernet Plus (PoE+); by the number of Gigabit Ethernet and Multigigabit Ethernet ports; the aggregate power provided, and the type of cabling connections they support.



Switch Software



Cisco Catalyst 3560-CX compact switches ship with the IP Base version of Cisco IOS® Software. The 3560-CX switches can be upgraded to use the IP Services version of IOS Software with a right-to-use (RTU) License. The

IP Base and IP Services feature set on Cisco Catalyst 3560-CX switches provides baseline enterprise services in addition to all LAN Base features. They support Layer 3 networking features, including support for routed access, Cisco TrustSec, media access control security (MACsec), and other advanced network services. The IP Services feature set provides full Layer 3 routing capabilities with Open Shortest Path First (OSPF), Border Gateway Protocol (BGP), Enhanced Internal Gateway Routing Protocol (EIGRP), Policy-Based Routing (PBR), Multicast Routing, and Virtual Routing and Forwarding (VRF) Lite.



Cisco Catalyst 2960-CX Series compact switches ship with the LAN Base version of Cisco IOS Software. These switches deliver advanced Layer 2 switching with intelligent Layer 2 through 4 services for the network edge, such as voice, video, and wireless LAN services.



Licensing and Software Policy



Customers with Cisco Catalyst LAN Base and IP Base software feature sets will receive updates and bug fixes designed to maintain the compliance of the software with published specifications, release notes, and industry standards compliance as long as the original end user continues to own or use the product or for up to one year from the end-of-sale date for this product, whichever occurs earlier. This policy supersedes any previous warranty or software statement and is subject to change without notice.
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 14
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Depth 238 mm
DHCP server Y
Electromagnetic compatibility FCC, CFR 47, EN 55022, EN 55024, AS/NZS, VCCI, ANATEL, CCC, GOST
Flash memory 128 MB
Form factor 1U
Full duplex Y
Gigabit Ethernet (copper) ports quantity 14
Heat dissipation 1023.61 BTU/h
Height 44.4 mm
IGMP snooping Y
Input current 3.25/1.5 A
Internal memory 512 MB
IP routing Y
Jumbo frames support Y
LED indicators Y
Link aggregation Y
Management protocols SNMP, IGMPv3
Mean time between failures (MTBF) 553140 h
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3x,IEEE 802.3z
Non-operating altitude 0 - 4000 m
Number of queues 8
Number of VLANs 1023
Operating altitude 0 - 3048 m
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -5 - 45 °C
Power consumption (max) 275.2 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 12
Quality of Service (QoS) support Y
Rack mounting Yes
Rate limiting Y
Safety UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825
Security algorithms 802.1x RADIUS
Spanning tree protocol Y
SSH/SSL support Y
Stackable No
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -25 - 70 °C
Switch layer L3
Switch type Managed
Throughput 23.8 Mpps
Total Power over Ethernet (PoE) budget 240 W
VLAN support Y
Wall mountable Y
Weight 2310 g
Width 269 mm
ARP inspection Y
Jumbo frames 9198
Private VLAN Y
Installed SFP modules quantity 2
Power over Ethernet (PoE) power per port 30 W
Product colour White

Specific References

EAN13
0882658753275

WS-C3560CX-12PC-S.pdf

Cisco Catalyst 3560-CX Data Sheet

Cisco Catalyst 3560-CX

23.8 mpps, 12 GE PoE+, 2 x 1G SFP and 2 x 1G copper, IP Base, 100-240 VAC, 2.31 kg
