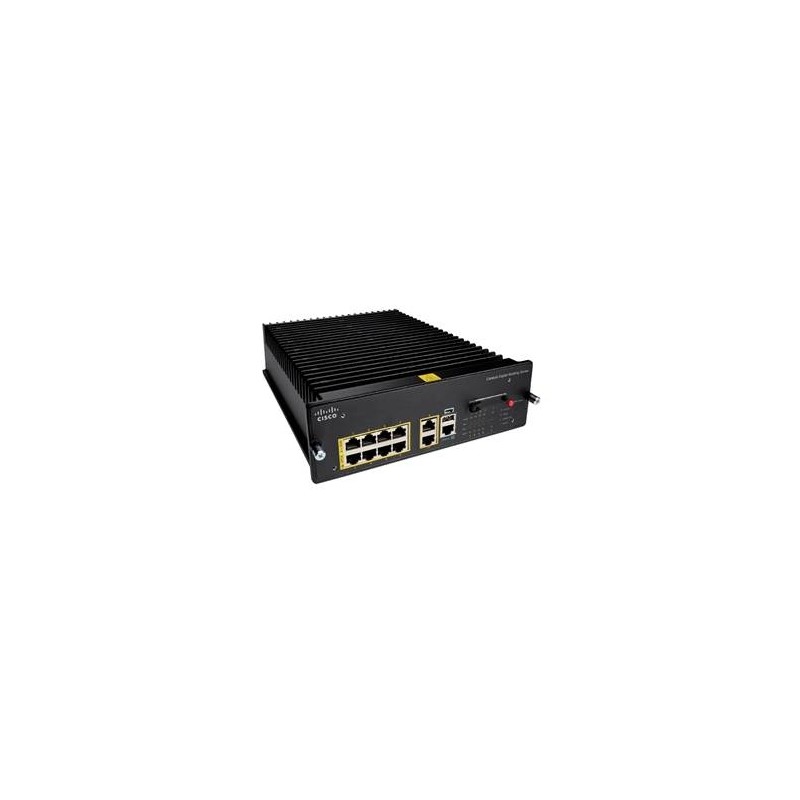

Cisco 8 PORT UPOE IN Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
  • Cisco 8 PORT UPOE IN Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
  • Cisco 8 PORT UPOE IN Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
The Cisco Catalyst Digital Building Series Switch is the industry’s first purpose-built switch optimized for powering low voltage LED lighting and digital building systems with many unique features. Unlike unmanaged IoT switches, it provides advanced networking features for flexibility, simplicity, security, and scale.



- 8 fast Ethernet ports and 2 gigabit copper uplink ports, with line-rate forwarding performance

- Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) support with up to 480W of power budget

- Support for Layer 2 features, optimized for robust connectivity to lighting and other building IoT devices

- Silent operation due to fanless design, which enhances reliability

- Enhanced Limited Lifetime Warranty (E-LLW)
10G support No
AC input voltage 100 - 277 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 10
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Broadcast storm control Y
Colour of product Black
Depth 281.2 mm
Fast Ethernet (copper) ports quantity 8
Flash memory 256 MB
Forwarding rate 4.2 Mpps
Full duplex Y
Gigabit Ethernet (copper) ports quantity 2
Height 69.8 mm
Internal memory 512 MB
MAC address table 8192 entries
Mean time between failures (MTBF) 710270 h
Multicast support Y
Networking standards IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Non-operating altitude 0 - 4000 m
Number of queues 4
Number of VLANs 64
Operating altitude 0 - 3048 m
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -5 - 50 °C
Power consumption (typical) 600 W
Power over Ethernet (PoE) Yes
Security algorithms 802.1x RADIUS
Spanning tree protocol Y
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -25 - 70 °C
Switch layer L2
Switch type Managed
Switching capacity 5.6 Gbit/s
Total Power over Ethernet (PoE) budget 480 W
VLAN support Y
Web-based management Y
Weight 4380 g
Width 221.5 mm
ARP inspection Y
DHCP relay Y

Specific References

EAN13
0882658970573

CDB-8U.pdf

Cisco 8 PORT UPOE IN Data Sheet

Cisco 8 PORT UPOE IN

Cisco Catalyst Digital Building Switch, 8 x FE, 480W UPOE, Uplinks: 2 x 1G copper, LAN Lite
Out of Stock
£917.09
Tax excluded
Reference: CDB-8U
Quantity
