The Cisco Nexus®3000 Series Switches are a comprehensive portfolio of 1, 10, and 40 Gigabit Ethernet switches built from a Switch-on-a-Chip (SoC) architecture. Introduced in April 2011, this series of switches provides line-rate Layer 2 and 3 performance and is suitable for Top-of-the-Rack (ToR) architecture. This series of switches has established itself as a leader in High-Frequency Trading (HFT), High-Performance Computing (HPC), and big data environments by pairing high performance and low latency with innovations in performance visibility, automation, and time synchronization.
The Cisco Nexus 3548-X and 3524-X Switches are the next generation of the Cisco Nexus 3500 platform. Like the previous generation, these switches are compact 1RU form-factor 10 Gigabit Ethernet switches and provide line-rate Layer 2 and 3 switching with ultra-low latency. In addition, they consume 25 percent less power. This new generation introduces powerful hardware-based multicast NAT and latency monitoring capabilities and a second USB port for easier manageability.
The Cisco Nexus 3548-X and 3524-X Switches are the next generation of the Cisco Nexus 3500 platform. Like the previous generation, these switches are compact 1RU form-factor 10 Gigabit Ethernet switches and provide line-rate Layer 2 and 3 switching with ultra-low latency. In addition, they consume 25 percent less power. This new generation introduces powerful hardware-based multicast NAT and latency monitoring capabilities and a second USB port for easier manageability.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Colour of product | Grey |
| Console port | RS-232 |
| Depth | 467 mm |
| Fiber optic connector | SFP+ |
| Flash memory | 4000 MB |
| Form factor | 1U |
| Forwarding rate | 720 Mpps |
| Heat dissipation | 383 BTU/h |
| Height | 43.6 mm |
| Internal memory | 4000 MB |
| Jumbo frames support | Y |
| LED indicators | Y |
| MAC address table | 64000 entries |
| Multicast support | Y |
| Networking standards | IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3ba,IEEE 802.3z |
| Number of fans | 4 fan(s) |
| Number of power supply units | 2 |
| Number of VLANs | 4096 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 18 MB |
| Power consumption (max) | 213 W |
| Power consumption (typical) | 112 W |
| Power over Ethernet (PoE) | No |
| Rack mounting | Yes |
| Redundant power supply (RPS) support | Y |
| Routing protocols | BGP,EIGRP,HSRP,OSPF,RIP-2,VRRP |
| Security algorithms | AES,SNMP,SSH-2 |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 960 Gbit/s |
| USB 2.0 ports quantity | 2 |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 7900 g |
| Width | 439 mm |
| ARP inspection | Y |
| Jumbo frames | 9216 |
| SFP+ module slots quantity | 48 |
| System log | Y |
| DHCP relay | Y |
| Telnet | Y |
| Authentication type | AAA,RADIUS |
| IPv4 multicast entries | 8000 |
| Virtual Router Redundancy Protocol (VRRP) | Y |
Specific References
- EAN13
- 0889728023184

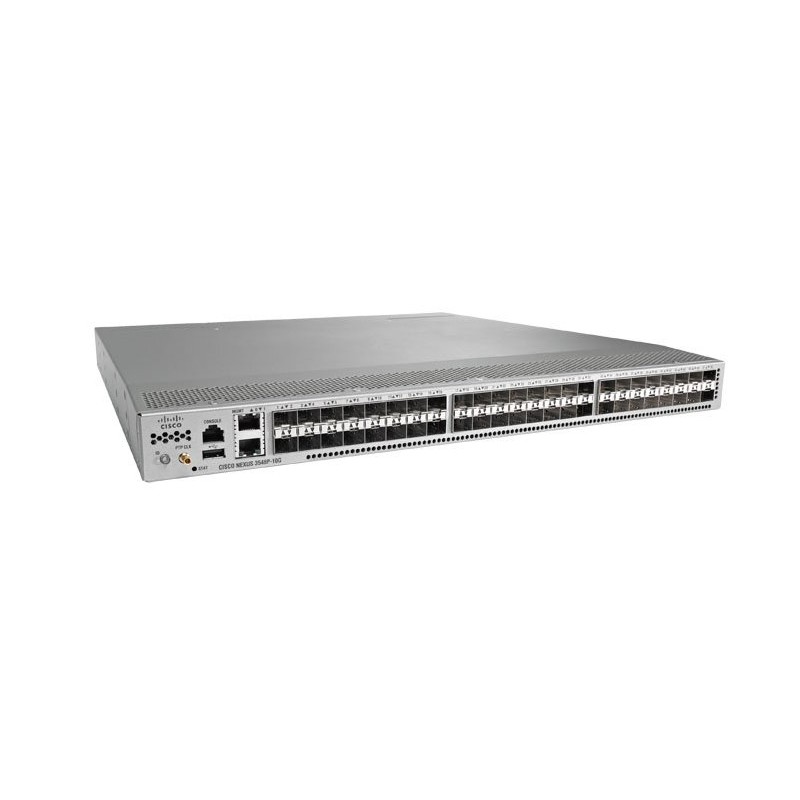

Cisco 3548-X
Nexus 3548-X Switch, 48 SFP+, 960 Gbps, 1RU, RF
£10,456.36
£8,713.63 Ex. VAT
Nexus 3548-X Switch, 48 SFP+, 960 Gbps, 1RU, RF
