Get high performance, advanced programmability, and wire-rate Layer 2 and 3 switching based on the Cisco NX-OS operating system. The 31108TC-V is a 48-port, 1/10-Gbps switch with 40/100-Gbps uplinks. Ideal for building cost-effective, power-efficient data centers, this compact switch supports DevOps toolsets. It offers flexibility, mobility, and scale for cloud and service providers.
Features and Capabilities
High Performance and Flexibility
- All ports support 1,10, 40, 100 Gbps for maximum flexibility
- Up to 2.5 Tbps and up to 1.4 billion packets per second (Bpps)
- The design is optimized for ultra-low, nominal latency (approximately 650 nanoseconds)
- Border Gateway Protocol Ethernet VPN (BGP EVPN) control plane offers scalable multitenancy and host mobility
Feature-Rich
- Native line-rate virtual extensible LAN (VXLAN) routing supports mobility and tenant isolation
- Integrates with Cisco Cloud Network Manager and XML management tools
- Includes scalable and cost-effective network traffic monitoring with Cisco Nexus Data Broker
Simple Operations
- Touchless boot-up with Power-On Auto-Provisioning (POAP)
- Configuration management DevOps tools support Puppet, Chef, and Ansible
- Advanced programmability functions include Cisco NX-API command-line interface (CLI), NX-API representational state transfer (REST), Cisco Embedded Event Manager, and Python scripting
Features and Capabilities
High Performance and Flexibility
- All ports support 1,10, 40, 100 Gbps for maximum flexibility
- Up to 2.5 Tbps and up to 1.4 billion packets per second (Bpps)
- The design is optimized for ultra-low, nominal latency (approximately 650 nanoseconds)
- Border Gateway Protocol Ethernet VPN (BGP EVPN) control plane offers scalable multitenancy and host mobility
Feature-Rich
- Native line-rate virtual extensible LAN (VXLAN) routing supports mobility and tenant isolation
- Integrates with Cisco Cloud Network Manager and XML management tools
- Includes scalable and cost-effective network traffic monitoring with Cisco Nexus Data Broker
Simple Operations
- Touchless boot-up with Power-On Auto-Provisioning (POAP)
- Configuration management DevOps tools support Puppet, Chef, and Ansible
- Advanced programmability functions include Cisco NX-API command-line interface (CLI), NX-API representational state transfer (REST), Cisco Embedded Event Manager, and Python scripting
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Colour of product | Grey |
| Console port | RJ-45 |
| Depth | 566 mm |
| Fiber optic connector | QSFP |
| Flash memory | 64000 MB |
| Form factor | 1U |
| Heat dissipation | 887 BTU/h |
| Height | 44 mm |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 288000 entries |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3ba,IEEE 802.3z |
| Noise level | 76.7 dB |
| Number of VLANs | 4096 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 16 MB |
| Power consumption (max) | 470 W |
| Power consumption (typical) | 260 W |
| Power supply included | Y |
| Rack mounting | Yes |
| Redundant power supply (RPS) support | Y |
| Spanning tree protocol | Y |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L3 |
| Switching capacity | 2160 Gbit/s |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 10000 g |
| Width | 439 mm |
| Access Control List (ACL) rules | 16000 |
| QSFP+ module slots quantity | 6 |

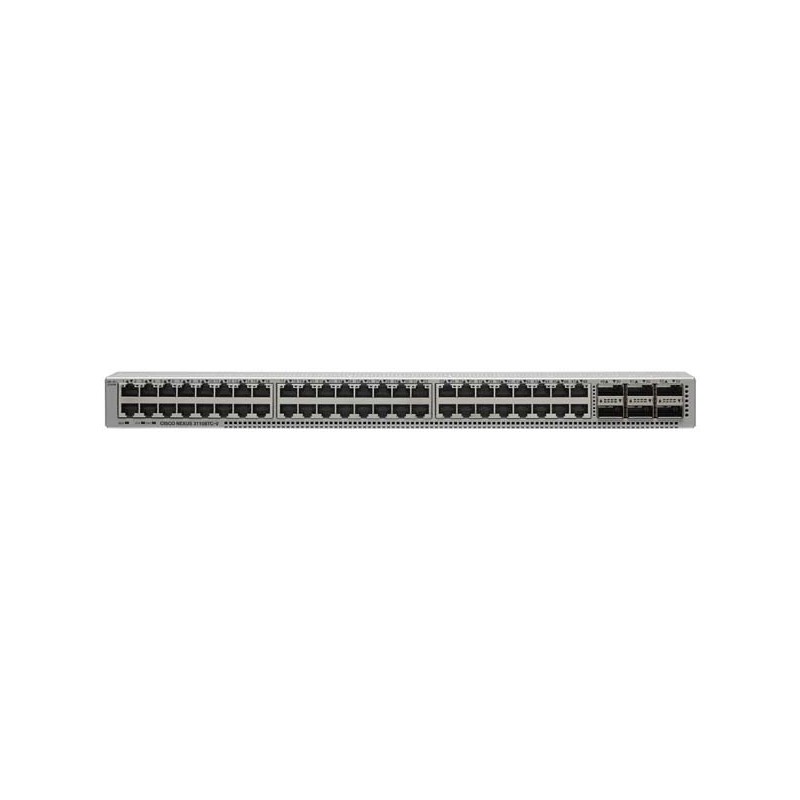

Cisco N3K-C31108TC-V
48x RJ-45, 6x QSFP, 2.16 Tbps, 1U, 64 GB SSD, 44x439x566 mm, 10 kg, spare
£15,897.44
£13,247.87 Ex. VAT
48x RJ-45, 6x QSFP, 2.16 Tbps, 1U, 64 GB SSD, 44x439x566 mm, 10 kg, spare
