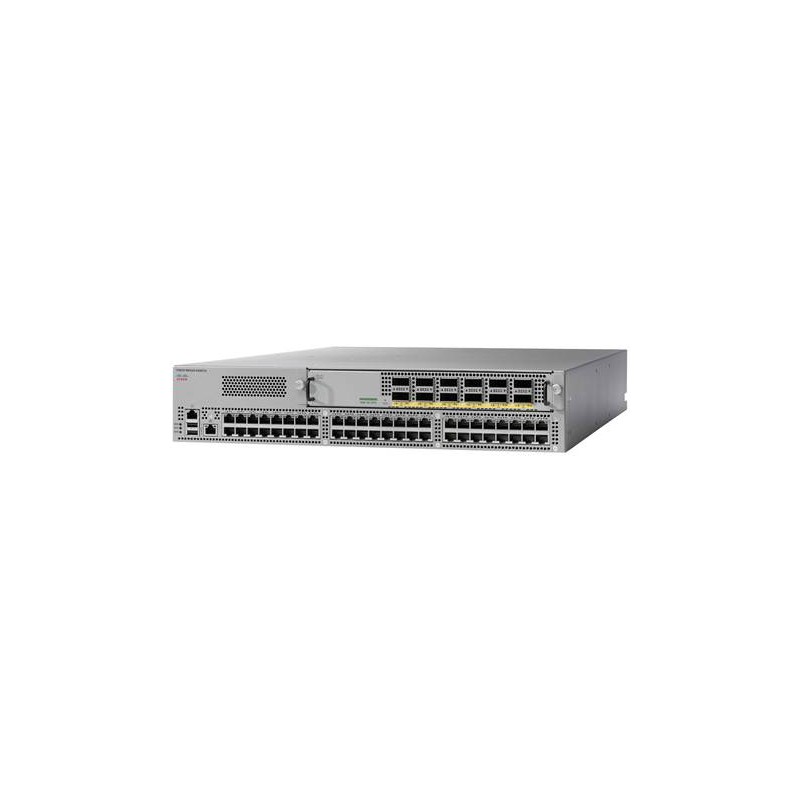

The Cisco Nexus 9396TX is a dense, line-rate 10GBase-T switch. It delivers comprehensive line-rate Layer 2 and Layer 3 overlays and the Cisco Application Centric Infrastructure (ACI) feature set. It is ideal for top-of-rack deployments in both traditional and ACI-enabled enterprise, service provider, and cloud environments.
The Cisco Nexus 9396TX Switch has 48 10GBase-T ports that can operate at 100 Mbps, 1 Gbps, and 10 Gbps speeds and 12 Quad Small Form Pluggable Plus (QSFP+) uplinks. All the ports are line rate, delivering 1.92 Tbps of throughput in a 2-rack-unit (2RU) form factor. The switch can be deployed as an access switch in traditional three-tier designs or as a leaf node in spine-leaf architectures.
ACI Support
- Integrated multi-hypervisor and bare-metal interoperation with VLAN and VxLAN routing and bridging support in ACI mode
- Single view of the entire fabric on APIC dashboard
- Full normalization of any encapsulation inside the fabric
- Consistent policy-based approach to deploying applications on top of the ACI fabric
- Fabric supports seamless integration of layer 4 (physical and virual) services in the end-to-end ACI policy framework
- Cohesive alignment of policies as workload moves around inside the fabric
Programmability
- Open APIs to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
- Automated configuration through Linux shell scripts
- Support for customer applications through a Linux container environment
High Availability
- Hot-swappable, redundant power supplies and fan trays
- Full patching support
Energy Efficiency
- Power supplies that are rated at 80 Plus Platinum
- Support for front-to-back or back-to-front airflow configuration
Investment Protection
- 40 Gb bidirectional transceiver for reuse of existing 10 Gigabit Ethernet multimode cabling plant for 40 Gigabit Ethernet
- Support for Cisco NX-OS and ACI modes of operation
10G support |
Yes |
AC input frequency |
50/60 Hz |
AC input voltage |
100-240 V |
Access Control List (ACL) |
Y |
Basic switching RJ-45 Ethernet ports quantity |
48 |
Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
Built-in processor |
Y |
Certification |
47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, CNS13438, EN55024, CISPR24, EN300386, KN 61000 |
Colour of product |
Grey |
Depth |
571 mm |
Flash memory |
64 MB |
Form factor |
2u |
Height |
89 mm |
IGMP snooping |
Y |
Internal memory |
16384 MB |
LED indicators |
Y |
MAC address table |
96000 entries |
Multicast support |
Y |
Noise level |
68.3 dB |
Number of fans |
3 fan(s) |
Number of multicast groups filtered |
32000 |
Number of VLANs |
4096 |
Operating altitude |
0 - 4000 m |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
0 - 40 °C |
Packet buffer memory |
50 MB |
Power consumption (max) |
712 W |
Power consumption (typical) |
427 W |
Power supply included |
Y |
Processor frequency |
2500 MHz |
Quality of Service (QoS) support |
Y |
Rack mounting |
Yes |
Safety |
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 |
Spanning tree protocol |
Y |
Storage temperature (T-T) |
-40 - 70 °C |
Switch layer |
L3 |
Switch type |
Managed |
Switching capacity |
1920 Gbit/s |
System event log |
Y |
Throughput |
1500 Mpps |
VLAN support |
Y |
Web-based management |
Y |
Weight |
10200 g |
Width |
445 mm |
QSFP+ module slots quantity |
8 |
