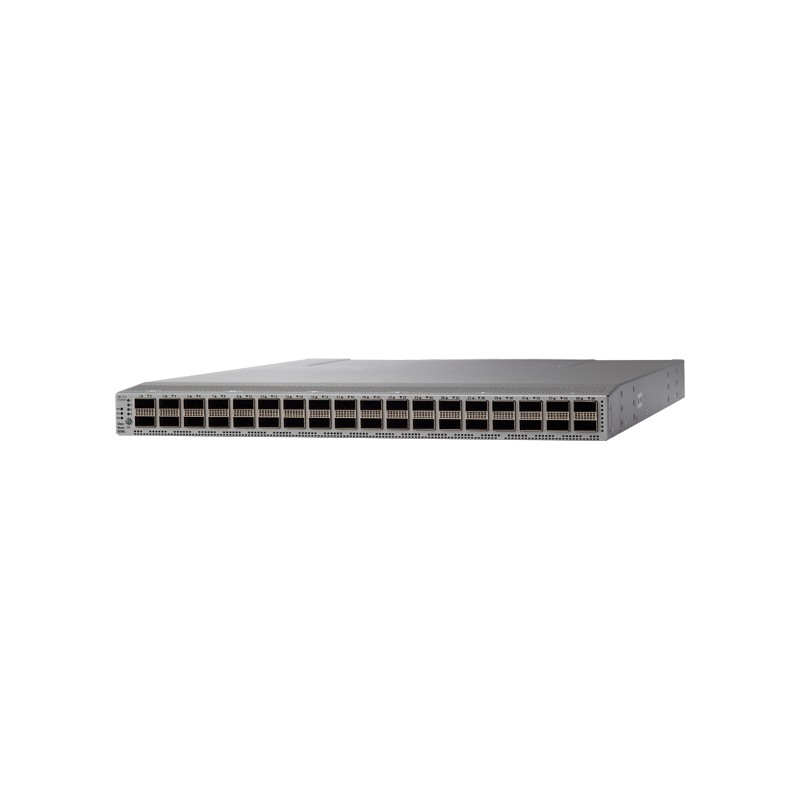

Cisco Nexus 9236C Managed L2/L3 None Grey 1U
  • Cisco Nexus 9236C Managed L2/L3 None Grey 1U
  • Cisco Nexus 9236C Managed L2/L3 None Grey 1U
  • Cisco Nexus 9236C Managed L2/L3 None Grey 1U
  • Cisco Nexus 9236C Managed L2/L3 None Grey 1U
Built on the latest Cisco®Cloud Scale technology, the Cisco Nexus®9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.



The Cisco Nexus 9236C Switch is a 1RU switch that supports 7.2 Tbps of bandwidth and over 5.3 bpps across 36 100-Gbps QSFP28 ports. Each of the ports on the 9236C can be individually configured into 1x100Gbps, 1 x 40 Gbps, 4 x 10/25 Gbps, 2 x 50 Gbps or 1 x 1/10 Gbps using QSA adapter. It provides industry’s best density and flexibility needed for data center spine or aggregation connectivity, in a compact form factor.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports type None
Built-in processor Y
Certification UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Console port RJ-45
DC input voltage -40 - -72 V
Depth 571 mm
Fiber optic connector QSFP28
Flash memory 64000 MB
Form factor 1U
Forwarding rate 5300 Mpps
Height 44 mm
IGMP snooping Y
Internal memory 16000 MB
LED indicators Y
MAC address table 92000 entries
Mean time between failures (MTBF) 399300 h
Multicast support Y
Noise level 69.6 dB
Number of fans 4 fan(s)
Number of VLANs 3967
Operating altitude 0 - 4000 m
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 30 MB
Power consumption (max) 640 W
Power consumption (typical) 275 W
Power over Ethernet (PoE) No
Rack mounting Yes
Redundant power supply (RPS) support Y
Routing protocols HSRP
Spanning tree protocol Y
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2/L3
Switch type Managed
Switching capacity 7200 Gbit/s
USB 2.0 ports quantity 1
VLAN support Y
Web-based management Y
Width 439 mm
QSFP+ module slots quantity 36
Switching optical modules type 100 Gigabit Ethernet
Product colour Grey
Multiprotocol Label Switching (MPLS) Y
Airflow direction Back-to-front airflow,Front-to-back airflow

N9K-C9236C.pdf

Cisco 9236C Data Sheet

Cisco 9236C

Nexus 9200 with 36p 40G 100G QSFP28, 7.2 Tbps, 1 RU
Out of Stock
£23,589.64
Tax excluded
Reference: N9K-C9236C
Quantity
