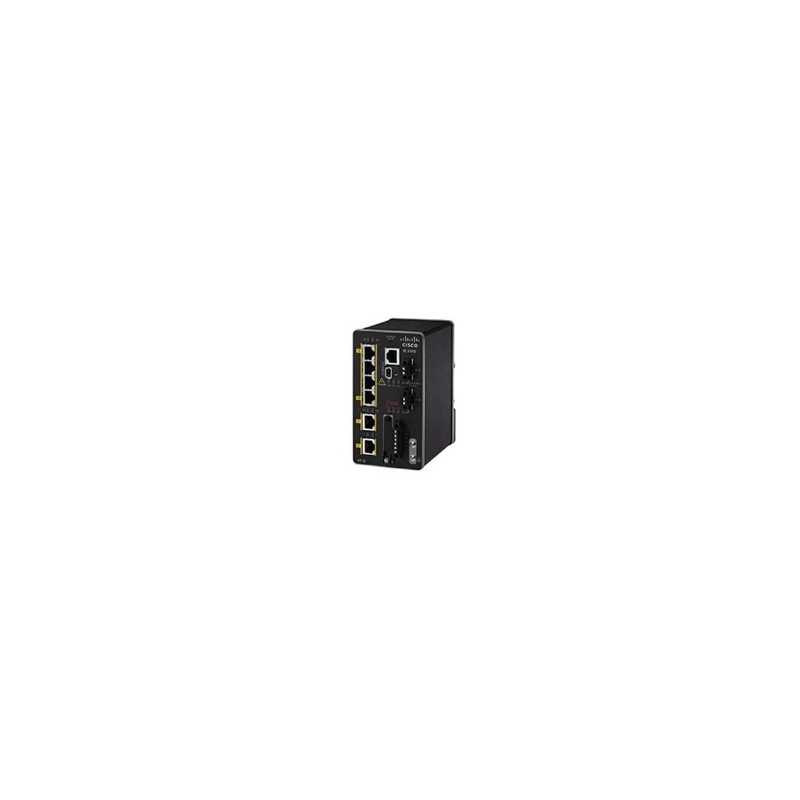

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.

Cisco IE 2000 Series are designed for low cost, low ports, and small sizes:

- 4, 8, or 16 10/100Base-T Ethernet ports fixed configurations with compact form factor

- 2x Gigabit Combo ports, SFP (100MB and 1G) or RJ45 uplink

- Dual-input DC power supply, alarm relays, DIN rail mount

- Conformal coating available

- Swappable SD flash card (for configuration storage), mini-USB connector, and RS-232 console port

- Industrial environmental compliance and certifications

- Industrial partner applications: EtherNet/IP and PROFINET

- Primary Applications and Features

- Easy deployment: Zero-touch discovery using DHCP, express setup, fast bootup time (60 sec) to help migrating to Ethernet environment without resistance

- Security: Dot1x, port security, and DHCP allow dynamic port-base authentication, Secure Shell (SSHv2), SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions, TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users

- Resiliency: Flex links for fast recovery, Cisco REP protocol for fast convergence

- Manageability: Auto SmartPort, Web Device Manager, Telnet, HTTPS access, SNMP, CNA and CiscoWorks LAN Management Solution (LMS)

- Industrial automation protocols: Support for Common Industrial Protocol (CIP) and PROFINETv2 that allow integration with existing management platform from Rockwell, Siemens, and other industrial environments

10G support	N
AC input voltage	110-220 V
Access Control List (ACL)	Y
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Broadcast storm control	Y
Certification	FCC, IEC/EN 55022A, VCCI, AS/NZS CISPR 22, CISPR 11, CISPR 22, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-64, EN 61373, UL/CSA, CE, AS/NZ RCM, BSMI, KCC, ANATEL, RoHS
Colour of product	Black
Depth	114.6 mm
DHCP server	Y
Fast Ethernet (copper) ports quantity	4
Flash memory	64 MB
Full duplex	Y
Height	127 mm
IGMP snooping	Y
Internal memory	256 MB
IP routing	Y
Link aggregation	Y
MAC address filtering	Y
MAC address table	8000 entries
Management protocols	SNMPv3
Mean time between failures (MTBF)	374052 h
Multicast support	Y
Networking standards	IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x
Non-operating altitude	0 - 4572 m
Number of multicast groups filtered	255
Number of VLANs	255
Operating altitude	0 - 4572 m
Operating temperature (T-T)	-40 - 70 °C
Packet buffer memory	2 MB
Power consumption (typical)	15 W
Power over Ethernet (PoE)	N
Quality of Service (QoS) support	Y
Safety	UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, CB IEC 60950-1, NOM NOM-019-SCF1
Security algorithms	SSH-2
Spanning tree protocol	Y
SSH/SSL support	Y
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 85 °C
Switch layer	L2
Switch type	Managed
Throughput	6.5 mpps
USB 2.0 ports quantity	1
VLAN support	Y
Web-based management	Y
Weight	1110 g
Width	73.7 mm
SFP module slots quantity	2
BPDU filtering/protection	Y
Traffic shaping	Y
Power connector	DC-in jack
