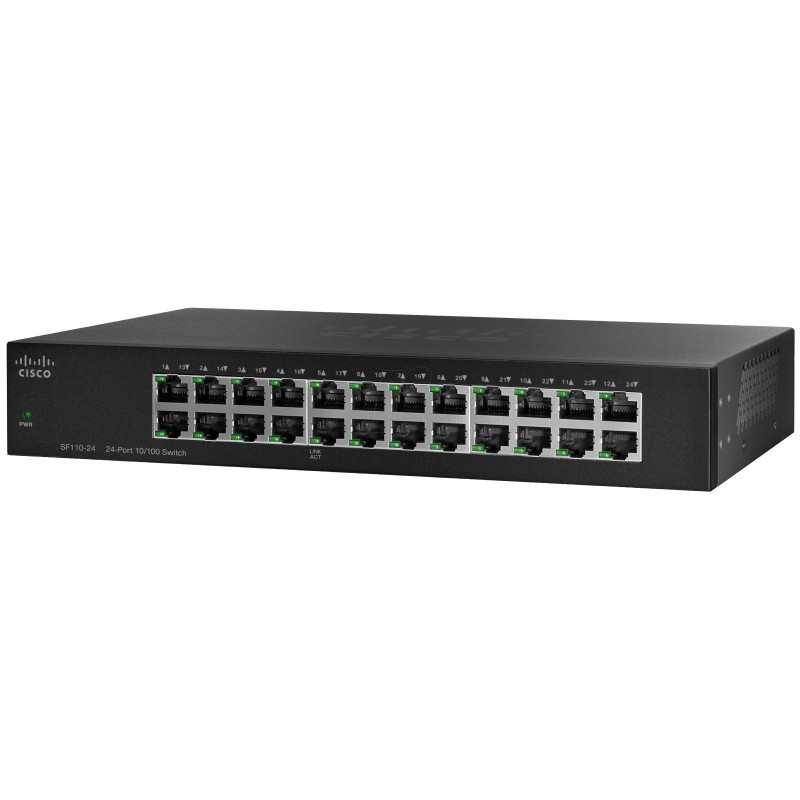

Cisco SF110-24
  • Cisco SF110-24
  • Cisco SF110-24
Give your office network a boost of speed and performance at a low price that takes almost no time to set up. Easily build a highly reliable network to connect your computers, printers, copiers, and other office equipment. If your business is like most small companies, you do not have an IT staff to set up your network for you. Now you can have a high-performance, business-class office network that just works, right out of the box, with the Cisco® 110 Series Unmanaged Switches. Users, workgroups, labs, departments, or growing offices can now deliver large amounts of multimedia, image, and video information across the network in almost no time.



Cisco 110 Series Unmanaged Switches deliver basic network connectivity and reliability for small businesses that is easy on the budget and without all the complexity. These switches provide all of the features, expandability, and investment protection you expect from Cisco, with no installation software and nothing to configure. Just plug it in, connect your computers and other business equipment, and get to work.



Cisco 110 Series Unmanaged Switches, part of the Cisco Small Business networking solutions, are a line of unmanaged switches that provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity to connect your small business office. Available in desktop and rack-mount models, these switches are designed to suit any office space with basic network needs and to optimize power efficiency. They use less power and provide the robust, reliable connectivity your business demands, as well as support for advanced features such as quality of service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes. A business-class, affordable network solution, Cisco 110 Series switches bring the proven reliability and investment protection of Cisco networking solutions to your small business.
10G supportN
AC input frequency50/60 Hz
AC input voltage110 - 240 V
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Cable types supportedCat5e
CertificationUL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Copper ethernet cabling technology10Base-T,100Base-TX
Depth170 mm
Fast Ethernet (copper) ports quantity24
Flash memory128 MB
Flow control supportY
Form factor1U
Forwarding rate3.6 Mpps
Full duplexY
Head-of-line (HOL) blockingY
Height44.5 mm
Internal memory128 MB
Jumbo frames supportY
LED indicatorsY
MAC address table512 entries
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of queues4
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Power over Ethernet (PoE)N
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-20 - 70 °C
Switch layerL2
Switch typeUnmanaged
Switching capacity4.8 Gbit/s
Weight1320 g
Width279.4 mm
Loop protectionY
Included power plug typesUK
Queue scheduling algorithmsWeighted Round Robin (WRR)
Product colourBlack

SF110-24-UK.pdf

Cisco SF110-24 Data Sheet

Download (345.43k)
