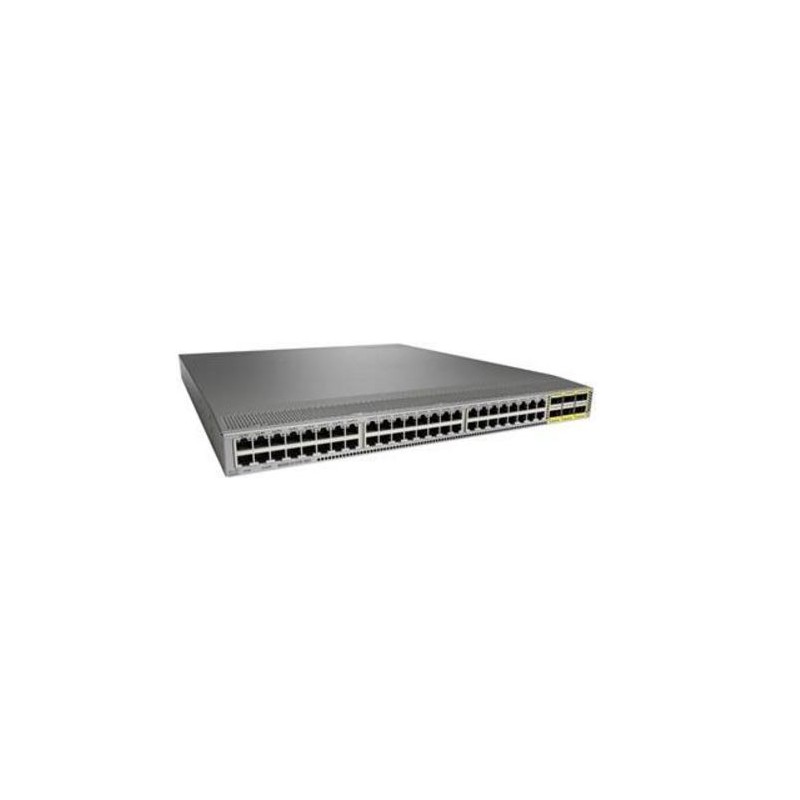

Cisco Nexus 3172TQ Managed L2/L3 10G Ethernet (100/1000/10000) Grey 1U
  • Cisco Nexus 3172TQ Managed L2/L3 10G Ethernet (100/1000/10000) Grey 1U
  • Cisco Nexus 3172TQ Managed L2/L3 10G Ethernet (100/1000/10000) Grey 1U
The Cisco Nexus® 3172PQ, 3172TQ, 3172TQ-32T, 3172PQ-XL, and 3172TQ-XL Switches are dense, high-performance, 10- and 40-Gbps Layer 2 and 3 switches that are members of the Cisco Nexus 3100 switch platform. All switches offer improved port density and scalability in compact one-rack-unit (1RU) form factors. The Cisco Nexus 3172 switches run the industry-leading Cisco® NX-OS Software operating system, which helps ensure continuous availability and sets the standard for mission-critical data center environments. They are well suited for data centers that require cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switches. These switches also support forward and reverse airflow (port-side exhaust and port-side intake) schemes with AC and DC power inputs.



The Cisco Nexus 3172TQis a 10GBASE-T switch with 48 10GBASE-T ports and 6 QSFP+ ports. This switch is well suited for customers who want to reuse existing copper cabling while migrating from 1-Gbps to 10-Gbps servers.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Broadcast storm control Y
Console port RS-232
DC input voltage -40 - -72 V
Depth 505 mm
Fiber optic connector QSFP+
Flash memory 2000 MB
Flow control support Y
Form factor 1U
Forwarding rate 1000 Mpps
Heat dissipation 1228 BTU/h
Height 44 mm
Internal memory 4000 MB
Jumbo frames support Y
LED indicators Y
MAC address table 288000 entries
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3ba,IEEE 802.3z
Noise level 76.7 dB
Number of power supply units 2
Number of VLANs 4096
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 10 - 85 %
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 12 MB
Power consumption (max) 440 W
Power consumption (typical) 360 W
Power over Ethernet (PoE) No
Quality of Service (QoS) support Y
Rack mounting Yes
Redundant power supply (RPS) support Y
Routing protocols BGP,OSPF,RIP
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Security algorithms AES,SNMPv3,SSH-2
Spanning tree protocol Y
SSH/SSL support Y
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2/L3
Switch type Managed
Switching capacity 1400 Gbit/s
System event log Y
USB 2.0 ports quantity 1
VLAN support Y
Web-based management Y
Weight 10000 g
Width 439 mm
ARP inspection Y
Jumbo frames 9216
Private VLAN Y
Tagged VLAN Y
QSFP+ module slots quantity 6
DHCP snooping Y
DHCP relay Y
Root protection Y
Access Control List (ACL) egress 1000
Access Control List (ACL) ingress 4000
Authentication type AAA,RADIUS
Queue scheduling algorithms Weighted Round Robin (WRR),Weighted random early detection (WRED)
Product colour Grey
Weighted random early detection (WRED) Y

N3K-C3172TQ-10GT.pdf

Cisco 3172TQ Data Sheet

Cisco 3172TQ

Nexus 3172TQ, 48 10GBase-T RJ-45, 6 QSFP+ ports
Out of Stock
£16,650.34
Tax excluded
Reference: N3K-C3172TQ-10GT
Quantity
