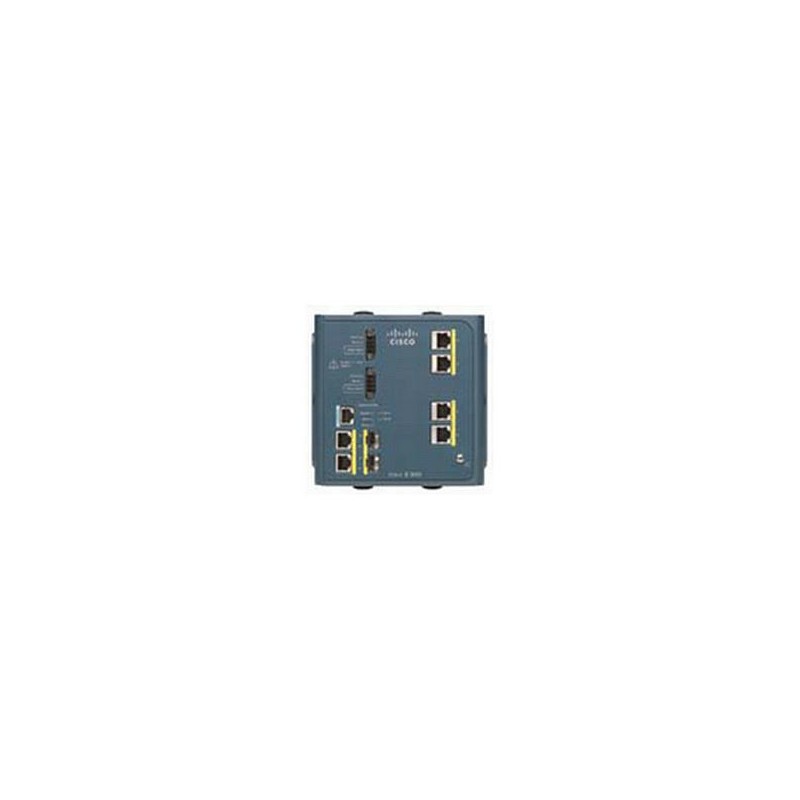

The Cisco® Industrial Ethernet 3000 Series (IE 3000 Series) is a family of Layer 2 and Layer 3 switches that bring Cisco’s leadership in switching to Industrial Ethernet applications with Innovative features, robust security, and superior ease of use. The Cisco IE 3000 Series features:
- Industrial design and compliance
- Tools for easy deployment, management, and replacement
- Network security based on open standards
- Integration of IT and industrial automation networks
The Cisco IE 3000 Series is an ideal product for Industrial Ethernet applications, including factory automation, energy and process control, and intelligent transportation systems (ITSs).
The Cisco IE 3000 offers:
- Design for Industrial Ethernet applications, including extended environmental, shock/vibration, and surge ratings; a complete set of power input options; convection cooling; and DIN-rail or 19” rack mounting
- Support for Power over Ethernet (PoE) up to 15.4W per port
- Support for Power over Ethernet Plus (PoE+) for the PoE+ capable devices up to 30W per port
- Easy setup and management using the Cisco Device Manager web interface and supporting tools, including Cisco Network Assistant (CNA) and Cisco Prime LMS 4.2
- Easy switch replacement using removable memory, allowing the user to replace a switch without having to reconfigure
- High availability, guaranteed determinism, and reliable security using Cisco IOS®Software
- Recommended software configurations for industrial applications that can be applied at the touch of a button
- Compliance to a wide range of Industrial Ethernet specifications covering industrial automation, ITS, substation, railway, and other markets
- Support for IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications
- Improved ring resiliency with the support of Resilient Ethernet Protocol (REP)
- Transparent IT integration with the support of Layer 3 routing protocols (IP Services)
- PROFINET v2 certification, with PROFINET conformance class B compliance
- ABB Industrial IT certification
- Industrial design and compliance
- Tools for easy deployment, management, and replacement
- Network security based on open standards
- Integration of IT and industrial automation networks
The Cisco IE 3000 Series is an ideal product for Industrial Ethernet applications, including factory automation, energy and process control, and intelligent transportation systems (ITSs).
The Cisco IE 3000 offers:
- Design for Industrial Ethernet applications, including extended environmental, shock/vibration, and surge ratings; a complete set of power input options; convection cooling; and DIN-rail or 19” rack mounting
- Support for Power over Ethernet (PoE) up to 15.4W per port
- Support for Power over Ethernet Plus (PoE+) for the PoE+ capable devices up to 30W per port
- Easy setup and management using the Cisco Device Manager web interface and supporting tools, including Cisco Network Assistant (CNA) and Cisco Prime LMS 4.2
- Easy switch replacement using removable memory, allowing the user to replace a switch without having to reconfigure
- High availability, guaranteed determinism, and reliable security using Cisco IOS®Software
- Recommended software configurations for industrial applications that can be applied at the touch of a button
- Compliance to a wide range of Industrial Ethernet specifications covering industrial automation, ITS, substation, railway, and other markets
- Support for IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications
- Improved ring resiliency with the support of Resilient Ethernet Protocol (REP)
- Transparent IT integration with the support of Layer 3 routing protocols (IP Services)
- PROFINET v2 certification, with PROFINET conformance class B compliance
- ABB Industrial IT certification
| 10G support | N |
| AC adapter included | Y |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Broadcast storm control | Y |
| Certification | UL 60950-1, CSA C22.2 No. 60950-1, TUV/GS, EN 60950-1, CB IEC 60950-1, NOM, FCC, EN 55022, CISPR 22, CISPR11, VCCI, AS/NZS 3548, CNS 13438, KN 22 |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| DC input voltage | 18 - 60 V |
| Depth | 112 mm |
| DHCP client | Y |
| DHCP server | Y |
| Expansion module support | Y |
| Flash memory | 64 MB |
| Full duplex | Y |
| Height | 152 mm |
| IGMP snooping | Y |
| Internal memory | 128 MB |
| IP routing | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| MAC address filtering | Y |
| MAC address table | 8000 entries |
| Mean time between failures (MTBF) | 363942 h |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x |
| Number of multicast groups filtered | 256 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 10 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Physical stacking (units) | 2 |
| Power consumption (max) | 15.1 W |
| Power over Ethernet (PoE) | N |
| Power supply included | Y |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Security algorithms | 802.1x RADIUS,SNMP,SSH-2 |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Stackable | Yes |
| Storage temperature (T-T) | -40 - 85 °C |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 16 Gbit/s |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 2000 g |
| Width | 147 mm |
| ARP inspection | Y |
| Power connector | DC-in jack |
| Product colour | Blue |
