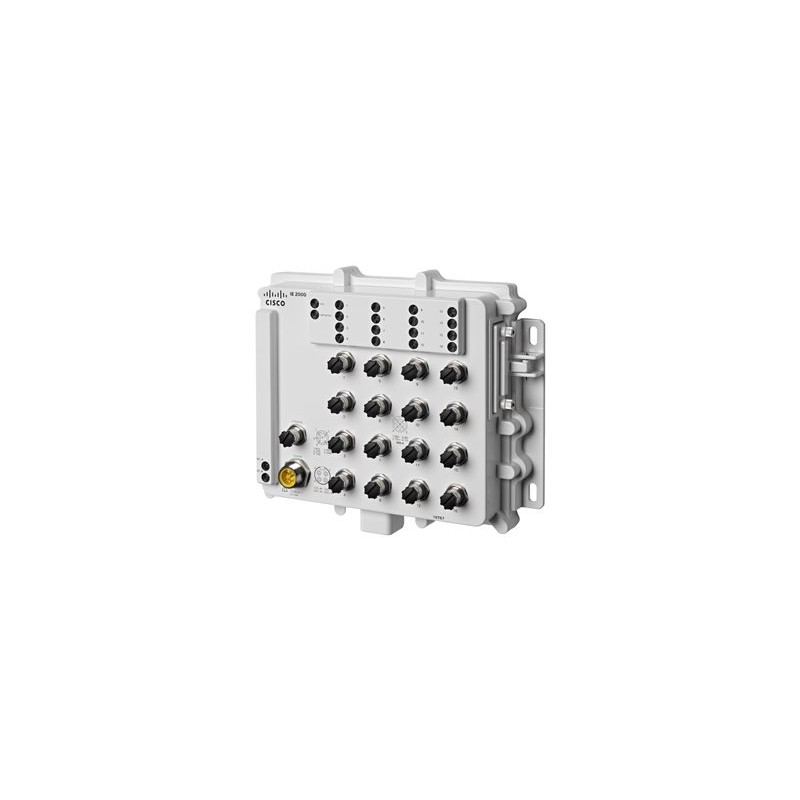

Cisco IE-2000-16T67-B Managed L2 Fast Ethernet (10/100) White network switch
  • Cisco IE-2000-16T67-B Managed L2 Fast Ethernet (10/100) White network switch
  • Cisco IE-2000-16T67-B Managed L2 Fast Ethernet (10/100) White network switch
The Cisco® Industrial Ethernet (IE) 2000 IP67 Series is Cisco’s first ruggedized switching platform that complies with the most demanding IP67 industrial standards. It also provides everything you’ve come to expect from the global leader in Internet Protocol (IP) networking: easy integration with the rest of your network, reliability, rock-solid performance, and world-class support. Now, those advantages and Cisco IOS® Software features extend all the way to the factory floor, rail yard, or other industrial site, even in the harshest environments. So you can finally fulfill the promise of network convergence-across both information technology (IT) and operations technology (OT) environments-with one supplier.



- Line rate/nonblocking uplink/downlink ports

- Forwarding rate: 6.5 mpps with 64-byte packets

- Egress buffer: 2 MB

- Unicast MAC addresses: 8000

- Internet Group Management Protocol (IGMP) multicast groups: 255

- Max VLANs: 1005

- IPv4 MAC security ACEs: 384 (default TCAM template)

- Bidirectional, 128 NAT entries
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Broadcast storm control Y
Colour of product White
Compatible memory cards SD
Depth 81.5 mm
DHCP server Y
Electromagnetic compatibility FCC 47 CFR Part 15 Class A, EN 55011, EN 55022A Class A, VCCI Class A, AS/NZS CISPR 22 Class A, CISPR 11 Class A, CISPR 22 Class A, ICES 003 Class A, CNS13438 Class A, KN22, EN55024, CISPR 24, AS/NZS CISPR 24, KN24, Brazil ANATEL certification, EN 61000-4
Flash memory 64 MB
Height 241.7 mm
IGMP snooping Y
Input voltage 9.6 - 60 V
Internal memory 256 MB
International Protection (IP) code IP67
IP routing Y
Link aggregation Y
MAC address filtering Y
MAC address table 8000 entries
Management protocols IGMP, IPv4, IPv6, HTTP, SNMP
Mean time between failures (MTBF) 374052 h
MIB support BRIDGE-MIB, CALISTA-DPA-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-ADMISSION-POLICY-MIB, CISCO-AUTH-FRAMEWORK-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CAR-MIB, CISCO-CDP-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CIS
Multicast support Y
Networking standards IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Non-operating altitude 0 - 4200 m
Number of multicast groups filtered 255
Operating altitude 0 - 4200 m
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -40 - 60 °C
Packet buffer memory 2 MB
Power consumption (max) 20 W
Power over Ethernet (PoE) No
Quality of Service (QoS) support Y
Rack mounting No
Rate limiting Y
Safety UL/CSA 60950-1, EN 60950-1, CB to IEC 60950-1, NOM to NOM-019-SCFI, CCC
Security algorithms 802.1x RADIUS,SNMP,SSH
Spanning tree protocol Y
SSH/SSL support Y
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 85 °C
Switch layer L2
Switch type Managed
Switching protocols IEEE 802.1, 802.3, 802.3at, 802.3af, VTPv2, NTP, UDLD, CDP, LLDP, Flex Link, REP, VTPv3, EtherChannel, Voice VLAN
System event log Y
Throughput 6.5 mpps
VLAN support Y
Wall mountable Y
Web-based management Y
Weight 3300 g
Width 300.7 mm
ARP inspection Y
BPDU filtering/protection Y
Authentication MAC-based authentication,Port-based authentication

Specific References

EAN13
0882658623592

IE-2000-16T67-B.pdf

Cisco IE-2000-16T67-B Data Sheet

Cisco IE-2000-16T67-B

16x 10/100Base-T Ethernet (100 MB D-Code), LAN Base, IP67
