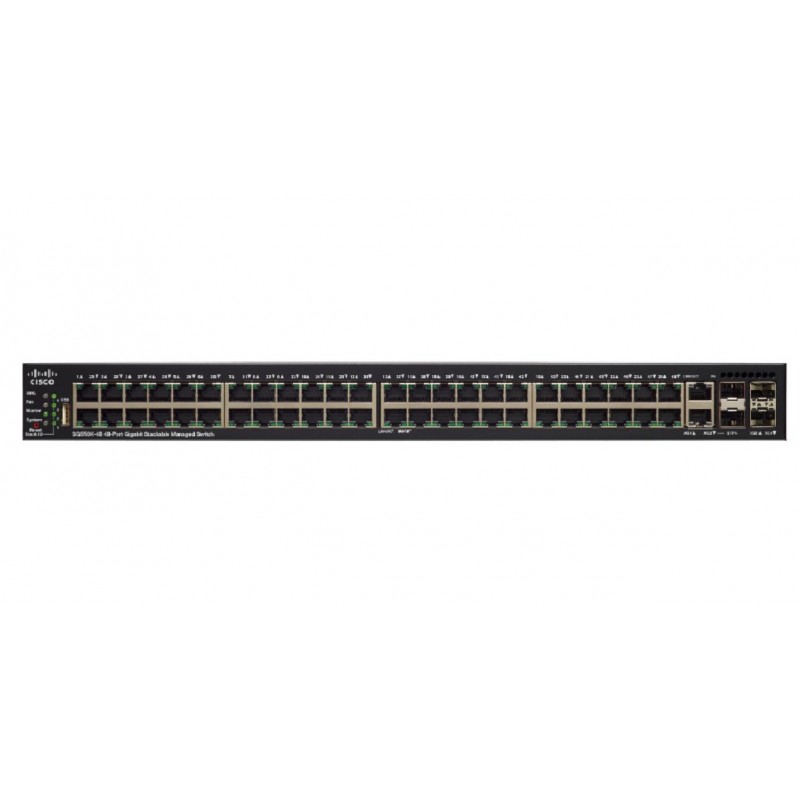

Cisco SG550X-48P Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
  • Cisco SG550X-48P Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
  • Cisco SG550X-48P Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
Strengthen Your Network to Meet Growing Demands

Everyone, from employees to vendors to customers, needs access to your network resources at a moment’s notice. The growing number of users and devices is creating greater traffic loads on your network. So are newer applications like video, collaboration, cloud, and wireless. A bigger network “pipe” can help you avoid slowdowns and unreliable user response times amid this growth.



To get the fast data speeds, nonstop availability, and advanced security you need in your local area network (LAN), you can turn to the Cisco 550X Series Stackable Managed Switches. They are built with 10 Gigabit Ethernet connectivity, giving you the speed you need to share information quickly.



They deliver substantial productivity gains today and help future-proof your network for the demanding applications of tomorrow. The solution is simple to manage and supports advanced features traditionally reserved for large enterprises, but now priced for small and midsized businesses.



Experience the High Performance of 10 Gigabit Ethernet

Cisco 550X Series Stackable Managed Switches (Figure 1) offer the flexibility you need to meet your business requirements. These switches offer 24- to 48-port Gigabit or Fast Ethernet with 10 Gigabit uplinks, and 16- to 48-port 10 Gigabit Ethernet with both copper (10GBase-T) and fiber (Small Form Factor Pluggable Plus [SFP+]) options.



- Boost network performance with 10 Gigabit Ethernet

- Conserve power consumption and costs

- Enhance network security

- Increase network uptime with redundant fans and power

- Simplify operations with rich capabilities
10G support Yes
AC input frequency 47/63 Hz
AC input voltage 100 -240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Built-in processor Y
Cable types supported Cat5,Cat5e,Cat6a
Cables included AC,Serial
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Colour of product Black,Grey
Compatible operating systems Microsoft Windows, Linux, Mac OS X
Console port RJ-45
Depth 350 mm
DHCP server Y
Firmware upgradeable Y
Flash memory 256 MB
Flow control support Y
Form factor 1U
Gigabit Ethernet (copper) ports quantity 48
Head-of-line (HOL) blocking Y
Heat dissipation 1686.62 BTU/h
Height 44 mm
IGMP snooping Y
Internal memory 512 MB
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address table 16000 entries
Management protocols SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of IP interfaces 256
Number of queues 8
Number of static routes 7000
Number of VLANs 4094
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 50 °C
Packet buffer memory 3 MB
Physical stacking (units) 8
Port mirroring Y
Power consumption (max) 494.3 W
Power over Ethernet (PoE) Yes
Power supply included Y
Processor frequency 800 MHz
Quality of Service (QoS) support Y
Quick start guide Y
Rack mount kit Y
Rack mounting Yes
Rate limiting Y
Reset button Y
Security algorithms 802.1x RADIUS,HTTPS,SSH,SSL/TLS
Spanning tree protocol Y
SSH/SSL support Y
Stackable Yes
Storage relative humidity (H-H) 10 - 90 %
Storage temperature (T-T) -20 - 70 °C
Switch layer L3
Switch type Managed
Switching capacity 176 Gbit/s
System event log Y
Throughput 130.94 Mpps
Total Power over Ethernet (PoE) budget 382 W
VLAN support Y
Web-based management Y
Weight 5820 g
Width 440 mm
ARP inspection Y
Jumbo frames 9000
IP-MAC-Port binding Y
Private VLAN Y
BPDU filtering/protection Y
Port-based VLAN Y
Loop protection Y
Authentication Guest VLAN,Port-based authentication
Installed SFP+ modules quantity 2
Tagged VLAN Y
Power over Ethernet (PoE) power per port 60 W
Cable length detection Y
Stacked VLAN Y
Resource CD Y

SG550X-48P-K9-UK.pdf

Cisco SG550X-48P Data Sheet

Cisco SG550X-48P

L3, managed, 48 x 10/100/1000 & 2 x 10 GE combo & 2 x 10GE SFP+, rack-mountable, PoE
