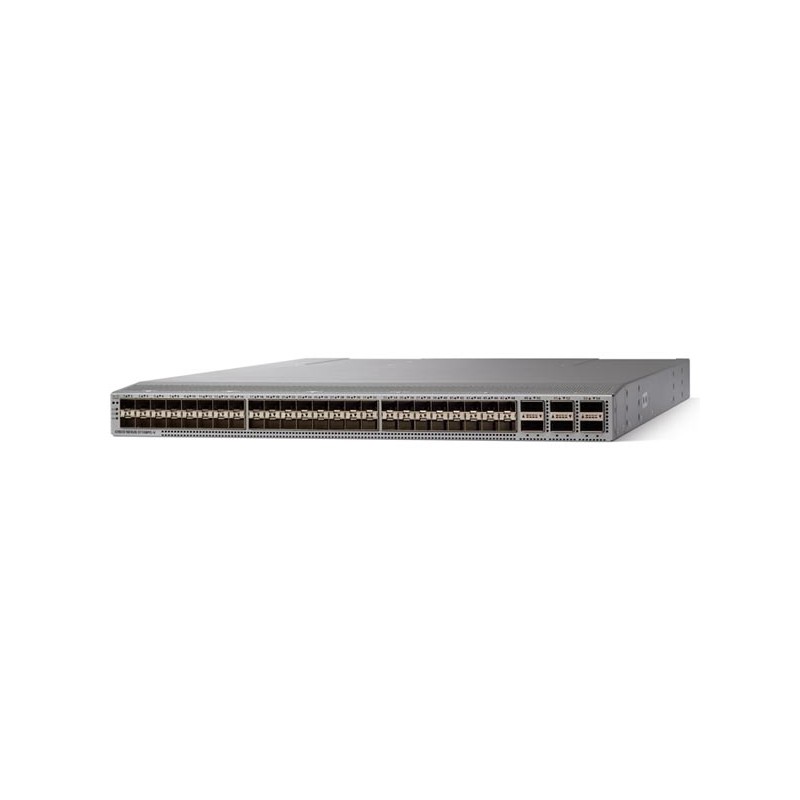

Cisco 31108PC-V
  • Cisco 31108PC-V
  • Cisco 31108PC-V
Get High-Density, 1/10/40/100-Gbps Switching



Get high performance, advanced programmability, and wire-rate Layer 2 and 3 switching based on the Cisco NX-OS operating system. The 31108PC-V SFP+ is a 48-port 1/10-Gbps switch with 40/100-Gbps uplinks. It supports DevOps toolsets, and offers mobility and scale for service and cloud providers. This compact, top-of-rack (ToR) switch is ideal for building cost-effective, power-efficient data centers.



High Performance and Flexibility

- 48 downlink ports support 1G and 10G

- 6 flexible uplink ports support 40G, 100G, 4x10G with breakout cables, and 1x10G with QSA adapter

- Up to 2.5 terabits per second (Tbps) and up to 1.4 billion packets per second (Bpps)

- The design is optimized for ultra-low nominal latency (approximately 650 nanoseconds)

- Border Gateway Protocol Ethernet VPN (BGP EVPN) control plane offers scalable multitenancy and host mobility



Feature-Rich



- Native line-rate virtual extensible LAN (VXLAN) routing supports mobility and tenant isolation

- Integrates with Cisco Cloud Network Manager and XML management tools

- Includes scalable and cost-effective network traffic monitoring with Cisco Nexus Data Broker



Simple Operations



- Touchless boot-up with Power-On Auto-Provisioning (POAP)

- Configuration management DevOps tools support Puppet, Chef, and Ansible

- Advance programmability functions include Cisco NX-API command-line interface (CLI), NX-API representational state transfer (REST), Cisco Embedded Event Manager, and Python scripting
10G supportYes
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Buffer size16000 KB
Colour of productBlack,Grey
Console portRS-232
Depth566 mm
Fiber optic connectorQSFP28,SFP+
Fiber ports quantity54
Fiber typeMulti-mode
Flash memory64000 MB
Form factor1U
Heat dissipation1228 BTU/h
Height44 mm
Internal memory16 MB
Jumbo frames supportY
MAC address filteringY
MAC address table288000 entries
Management protocolsSNMP
MIB supportY
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3ba,IEEE 802.3bm
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 85 %
Operating temperature (T-T)0 - 40 °C
Power consumption (max)360 W
Power consumption (typical)150 W
Quality of Service (QoS) supportY
Rack mountingYes
Security algorithmsSNMP
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2/L3
Switch typeManaged
Switching capacity2160 Gbit/s
USB 2.0 ports quantity1
VLAN supportY
Weight9700 g
Width439 mm
Jumbo frames9216
Installed SFP+ modules quantity48
Switching optical modules type100 Gigabit Ethernet
Access Control List (ACL) egress1000
Access Control List (ACL) ingress16000

Similar products

  • Cisco IE-2000-16TC-G-N
    Cisco IE-2000-16TC-G-N
  • Cisco IE-2000-16PTC-G-E
    Cisco IE-2000-16PTC-G-E
  • Cisco IE-2000-16PTC-G-L
    Cisco IE-2000-16PTC-G-L
  • Cisco IE-2000-16T67P-G-E
    Cisco IE-2000-16T67P-G-E
  • Cisco IE-2000-4S-TS-G-B
    Cisco IE-2000-4S-TS-G-B

Cisco 31108PC-V

Nexus 31108PC-V Switch, 48 x SFP+, 6 x QSFP28, 1RU, 16 GB, 150W

N3K-C31108PC-V

Out of Stock

£19,719.32
£16,432.76 Ex VAT.
