Cisco SG550XG-8F8T-K9
  • Cisco SG550XG-8F8T-K9
  • Cisco SG550XG-8F8T-K9
Advanced Features for Demanding Environments at an Affordable Price

Your business is growing, and that means more customers, more opportunities, and more attention on your company. The only problem: Your network was built for a smaller operation. As you add more devices, applications, and users, your IT environment will become increasingly difficult and expensive to manage. Even worse, as the network becomes more complex and overloaded, your users are likely to see sluggish performance and even outages.



With customers and employees depending on your business more than ever before, a slow or unreliable network is not an option. You need an IT backbone that provides excellent performance, nonstop availability, and advanced security. The ideal network will be easy to manage, support advanced features that will grow with your company, and be at a price that’s affordable.

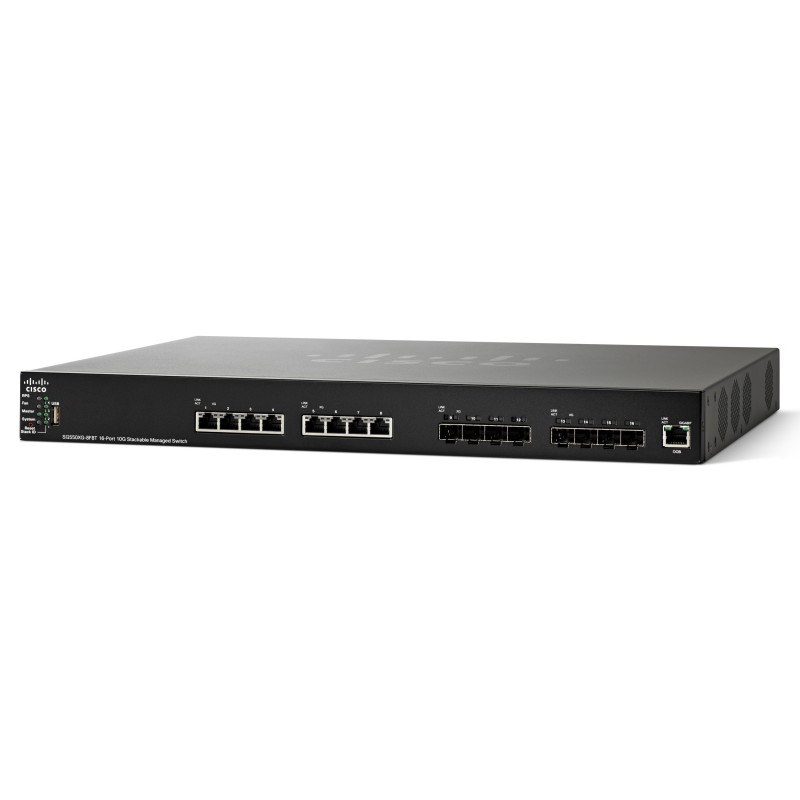

Cisco 550X Series Stackable Managed Switches

The Cisco® 550X Series (Figure 1) are the next-generation stackable managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. These switches incorporate fan and power hardware redundancy, increasing overall network availability. The SG550X and SF550X models provide 24 or 48 ports of Gigabit Ethernet and Fast Ethernet connectivity with 10 Gigabit uplinks. The SG550XG models provide 16, 24, or 48 ports of 10 Gigabit Ethernet with both copper and fiber connection options, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.



Cisco 550X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 550X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.



A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future and receive credit for your Cisco 550X Series switch. Overall, the Cisco 550X Series provides the ideal technology foundation for a growing business.
10G supportYes
AC input frequency47/63 Hz
AC input voltage100-240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Broadcast storm controlY
Built-in processorY
Cable types supportedCat6,Cat7,Fiber
Cables includedAC,Serial
CertificationUL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Colour of productBlack
Console portRJ-45
Copper ethernet cabling technology10GBASE-T,100BASE-TX,1000BASE-T
Depth350 mm
DHCP clientY
DHCP serverY
Fiber optic connectorSFP+
Firmware upgradeableY
Flash memory256 MB
Flow control supportY
Form factor1U
Gigabit Ethernet (copper) ports quantity1
Head-of-line (HOL) blockingY
Heat dissipation288.67 BTU/h
Height44 mm
IGMP snoopingY
Internal memory512 MB
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address table64000 entries
Management protocolsTFTP, SNTP, Telnet, SNMP
Mean time between failures (MTBF)434723.62 h
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level49.6 dB
Number of IP interfaces256
Number of multicast groups filtered4000
Number of power supply units1
Number of queues8
Number of static routes8000
Number of VLANs4094
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Physical stacking (units)8
Port mirroringY
Power consumption (typical)84.6 W
Power supply includedY
Processor frequency800 MHz
Quality of Service (QoS) supportY
Quick start guideY
Rack mount kitY
Rack mountingYes
Rate limitingY
Reset buttonY
Security algorithms802.1x RADIUS,HTTPS,SSH,SSL/TLS
Spanning tree protocolY
SSH/SSL supportY
StackableYes
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-20 - 70 °C
Switch layerL3
Switch typeManaged
Switching capacity320 Gbit/s
Throughput238.08 Mpps
USB 2.0 ports quantity1
Ventilation fan(s)4
VLAN supportY
Web-based managementY
Weight5230 g
Width440 mm
ARP inspectionY
Jumbo frames9000
IP-MAC-Port bindingY
Private VLANY
SFP+ module slots quantity8
BPDU filtering/protectionY
Port-based VLANY
MAC address auto-learning supportedY
Loop protectionY
AuthenticationPort-based authentication
Tagged VLANY
Cable length detectionY
Resource CDY

Similar products

  • Cisco IE-2000-16TC-G-N
    Cisco IE-2000-16TC-G-N
  • Cisco IE-2000-16PTC-G-E
    Cisco IE-2000-16PTC-G-E
  • Cisco IE-2000-16PTC-G-L
    Cisco IE-2000-16PTC-G-L
  • Cisco IE-2000-16T67P-G-E
    Cisco IE-2000-16T67P-G-E
  • Cisco IE-2000-4S-TS-G-B
    Cisco IE-2000-4S-TS-G-B

Cisco SG550XG-8F8T-K9

8 x 10 Gigabit Ethernet 10GBase-T, 8 x 10 Gigabit Ethernet SFP+, 1 Gigabit Ethernet Management Port

SG550XG-8F8T-K9-UK

Stock Due 05-06-2024

£3,562.59
£2,968.82 Ex VAT.
