Advanced features for demanding environments
Get 10 Gigabit Ethernet and advanced capabilities to accelerate your business growth. Our next-generation stackable managed switches can bring immediate productivity gains to your organization. They also get your network ready for more bandwidth-hungry applications in the future.
Get 10 Gigabit Ethernet and advanced capabilities to accelerate your business growth. Our next-generation stackable managed switches can bring immediate productivity gains to your organization. They also get your network ready for more bandwidth-hungry applications in the future.
| 10G support | Yes |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 -240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Built-in processor | Y |
| Cable types supported | Cat5,Cat5e,Cat6a |
| Cables included | AC,Serial |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Colour of product | Black,Grey |
| Compatible operating systems | Microsoft Windows, Linux, Mac OS X |
| Console port | RJ-45 |
| Depth | 257 mm |
| DHCP server | Y |
| Firmware upgradeable | Y |
| Flash memory | 256 MB |
| Flow control support | Y |
| Form factor | 1U |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Head-of-line (HOL) blocking | Y |
| Heat dissipation | 177.43 BTU/h |
| Height | 28 mm |
| IGMP snooping | Y |
| Internal memory | 512 MB |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 16000 entries |
| Management protocols | SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI |
| Mean time between failures (MTBF) | 248097 h |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Number of IP interfaces | 256 |
| Number of queues | 8 |
| Number of static routes | 7000 |
| Number of VLANs | 4094 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Packet buffer memory | 3 MB |
| Physical stacking (units) | 8 |
| Port mirroring | Y |
| Power consumption (max) | 52 W |
| Power over Ethernet (PoE) | No |
| Power supply included | Y |
| Processor frequency | 800 MHz |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mount kit | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Redundant power supply (RPS) support | Y |
| Reset button | Y |
| Security algorithms | 802.1x RADIUS,HTTPS,SSH,SSL/TLS |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Stackable | Yes |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 176 Gbit/s |
| System event log | Y |
| Throughput | 130.94 Mpps |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 3730 g |
| Width | 440 mm |
| ARP inspection | Y |
| Jumbo frames | 9000 |
| IP-MAC-Port binding | Y |
| Private VLAN | Y |
| BPDU filtering/protection | Y |
| Port-based VLAN | Y |
| Loop protection | Y |
| Authentication | Guest VLAN,Port-based authentication |
| Installed SFP+ modules quantity | 2 |
| Tagged VLAN | Y |
| Cable length detection | Y |
| Stacked VLAN | Y |
| Resource CD | Y |
Specific References
- EAN13
- 0882658808821

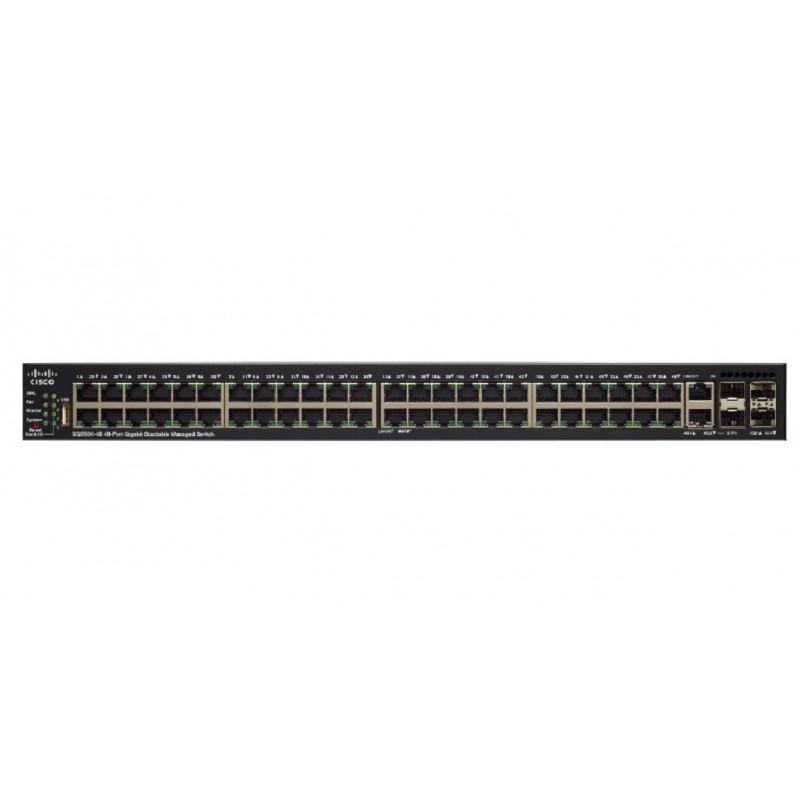

Cisco SG550X-48
L3, managed, 48 x 10/100/1000 & 2 x 10 GE combo & 2 x 10GE SFP+, rack-mountable
£4,297.58
£3,581.32 Ex. VAT
L3, managed, 48 x 10/100/1000 & 2 x 10 GE combo & 2 x 10GE SFP+, rack-mountable
