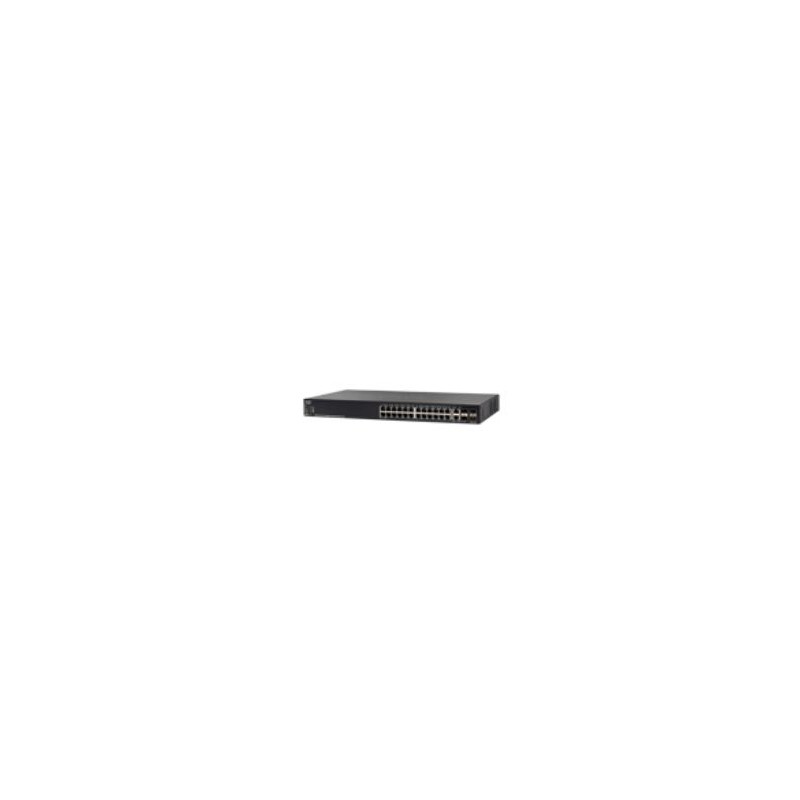

Cisco SG550X-24-K9 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
  • Cisco SG550X-24-K9 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
  • Cisco SG550X-24-K9 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Advanced features for demanding environments



Get 10 Gigabit Ethernet and advanced capabilities to accelerate your business growth. Our next-generation stackable managed switches can bring immediate productivity gains to your organization. They also get your network ready for more bandwidth-hungry applications in the future.
10G support Yes
AC input frequency 47/63 Hz
AC input voltage 100-240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Built-in processor Y
Cable types supported Cat5e
Cables included AC,Serial
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Colour of product Black
Console port RJ-45
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Depth 257 mm
DHCP client Y
DHCP server Y
Firmware upgradeable Y
Flash memory 256 MB
Flow control support Y
Form factor 1U
Gigabit Ethernet (copper) ports quantity 24
Head-of-line (HOL) blocking Y
Heat dissipation 114.31 BTU/h
Height 44 mm
IGMP snooping Y
Internal memory 512 MB
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address table 16000 entries
Management protocols SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Mean time between failures (MTBF) 375790 h
Minimum system requirements Mozilla Firefox v34+, Microsoft Internet Explorer v9+, Chrome v40+, Safari v5+
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of IP interfaces 256
Number of queues 8
Number of VLANs 4094
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 50 °C
Packet buffer memory 1.5 MB
Physical stacking (units) 8
Port mirroring Y
Power consumption (typical) 33.5 W
Power over Ethernet (PoE) No
Power supply included Y
Processor frequency 800 MHz
Quality of Service (QoS) support Y
Quick start guide Y
Rack mount kit Y
Rack mounting Yes
Rate limiting Y
Redundant power supply (RPS) support Y
Reset button Y
Security algorithms 802.1x RADIUS,HTTPS,SSH,SSL/TLS
Spanning tree protocol Y
SSH/SSL support Y
Stackable Yes
Storage relative humidity (H-H) 10 - 90 %
Storage temperature (T-T) -20 - 70 °C
Switch layer L3
Switch type Managed
Switching capacity 128 Gbit/s
System event log Y
Throughput 95.23 Mpps
USB 2.0 ports quantity 1
Ventilation fan(s) 2
VLAN support Y
Web-based management Y
Weight 3270 g
Width 440 mm
ARP inspection Y
Jumbo frames 9000
IP-MAC-Port binding Y
Private VLAN Y
BPDU filtering/protection Y
Port-based VLAN Y
Protocol-based VLAN Y
Loop protection Y
Authentication Guest VLAN,Port-based authentication,Web-based authentication
Installed SFP+ modules quantity 2
Tagged VLAN Y
Cable length detection Y
Stacked VLAN Y
Active link detection Y
Resource CD Y
Sleep mode Y

Specific References

EAN13
0882658808722

SG550X-24-K9-EU.pdf

Cisco SG550X-24-K9 Data Sheet

Cisco SG550X-24-K9

L3, managed, 24 x 10/100/1000 & 2 x 10 GE combo & 2 x 10GE SFP+, rack-mountable
