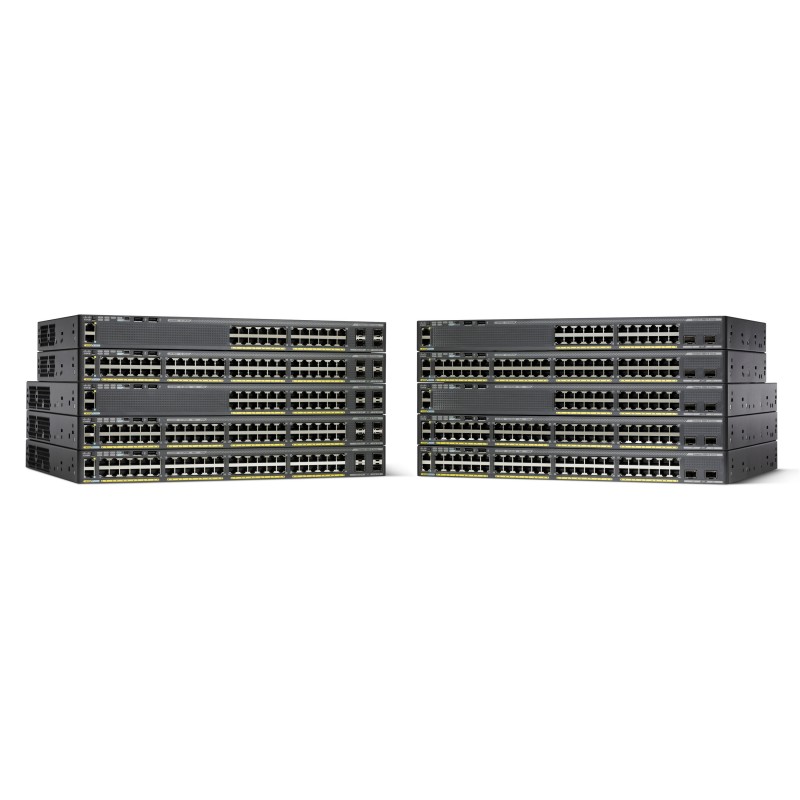

Cisco WS-C2960X-24PDL-RF
  • Cisco WS-C2960X-24PDL-RF
  • Cisco WS-C2960X-24PDL-RF
Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.



- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.

- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.

- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).

- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.

- Reduced power consumption and advanced energy management features.

- USB and Ethernet management interfaces for simplified operations.

- Application visibility and capacity planning with integrated NetFlow-Lite.

- LAN Base or LAN Lite Cisco IOS® software features.

- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Y
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Built-in processorY
Colour of productBlack
Console portRJ-45
Depth368 mm
DHCP serverY
Fiber optic connectorSFP+
Flash memory128 MB
Form factor1U
Full duplexY
Height45 mm
IGMP snoopingY
Internal memory512 MB
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address table16000 entries
Management protocolsSNMP v1/v2c/v3, RMON I/II
Mean time between failures (MTBF)325780 h
Memory typeDRAM
MIB supportY
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level57 dB
Non-operating altitude0 - 4000 m
Number of power supply units1
Number of VLANs1023
On/off switchY
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 95 %
Operating temperature (T-T)-5 - 40 °C
Power consumption (typical)52.3 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power supply includedY
Processor frequency600 MHz
Quality of Service (QoS) supportY
Rack mountingYes
Rate limitingY
Redundant power supply (RPS) supportY
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Security algorithms802.1x RADIUS,SSH
Spanning tree protocolY
SSH/SSL supportY
StackableYes
Storage relative humidity (H-H)10 - 95 %
Storage temperature (T-T)-25 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity216 Gbit/s
Throughput95.2 Mpps
Total Power over Ethernet (PoE) budget370 W
USB 2.0 ports quantity2
VLAN supportY
Web-based managementY
Weight5700 g
Width445 mm
SFP+ module slots quantity2

WS-C2960X-24PDL-RF.pdf

Cisco WS-C2960X-24PDL-RF Data Sheet

Download (1.37M)

Similar products

  • Cisco IE-2000-16TC-G-N
    Cisco IE-2000-16TC-G-N
  • Cisco IE-2000-16PTC-G-E
    Cisco IE-2000-16PTC-G-E
  • Cisco IE-2000-16PTC-G-L
    Cisco IE-2000-16PTC-G-L
  • Cisco IE-2000-16T67P-G-E
    Cisco IE-2000-16T67P-G-E
  • Cisco IE-2000-4S-TS-G-B
    Cisco IE-2000-4S-TS-G-B

Cisco WS-C2960X-24PDL-RF

Catalyst 2960-X, 24 x 10/100/1000 Ethernet, 2 x SFP+, APM86392 600MHz dual core, DRAM 512MB, Flash 128MB, PoE 370W, LAN Base, Refubished

WS-C2960X-24PDL-RF

Out of Stock

£3,020.79
£2,517.32 Ex VAT.
