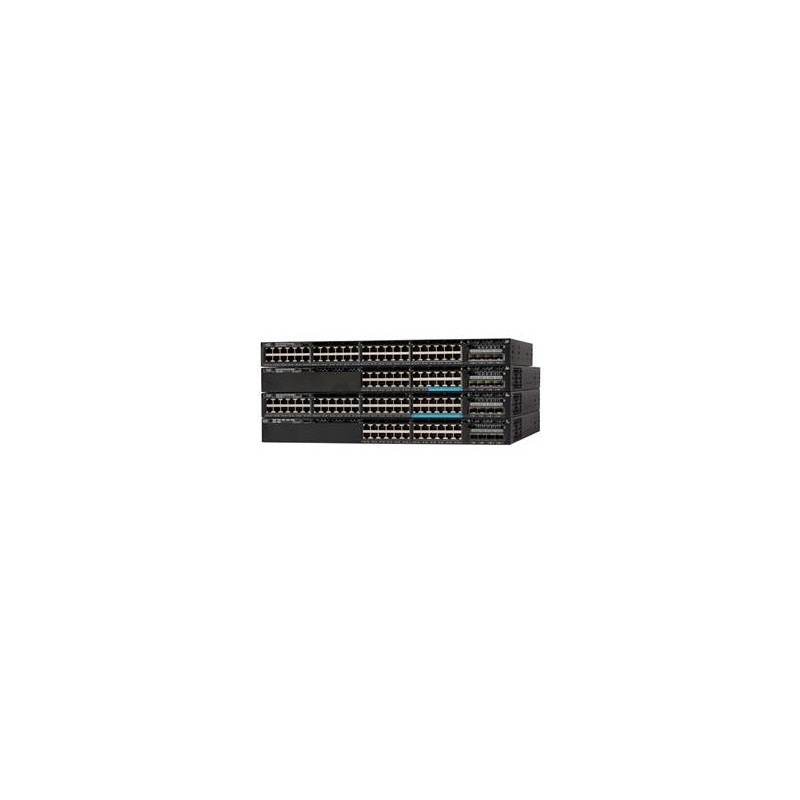

Cisco WS-C3650-8X24UQ-L L2/L3 Gigabit Ethernet (10/100/1000) 1U Black network switch
  • Cisco WS-C3650-8X24UQ-L L2/L3 Gigabit Ethernet (10/100/1000) 1U Black network switch
  • Cisco WS-C3650-8X24UQ-L L2/L3 Gigabit Ethernet (10/100/1000) 1U Black network switch
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Access Control List (ACL) Yes
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Colour of product Black
Depth 486 mm
DHCP server Yes
Form factor 1U
Full duplex Yes
Height 44 mm
Internal memory 4000 MB
Jumbo frames support Yes
LED indicators Yes
MAC address table 32000 entries
Mean time between failures (MTBF) 233780 h
Multicast support Yes
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1af,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3z
Non-operating altitude 0 - 5000 m
Operating altitude 0 - 5000 m
Operating temperature (T-T) -5 - 40 °C
Power consumption (typical) 1100 W
Quality of Service (QoS) support Yes
Rack mounting Yes
Storage relative humidity (H-H) 5 - 96 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2/L3
Switching capacity 272 Gbit/s
Weight 7580 g
Width 445 mm
Jumbo frames 9198
Traffic shaping Yes

Specific References

EAN13
0882658865367

Cisco WS-C3650-8X24UQ-L

Standalone with Optional Stacking 24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 4x10G Uplink ports, with 1100WAC power supply, 1 RU, LAN Base feature set
Out of Stock
£6,088.00
Tax excluded
Reference: WS-C3650-8X24UQ-L
