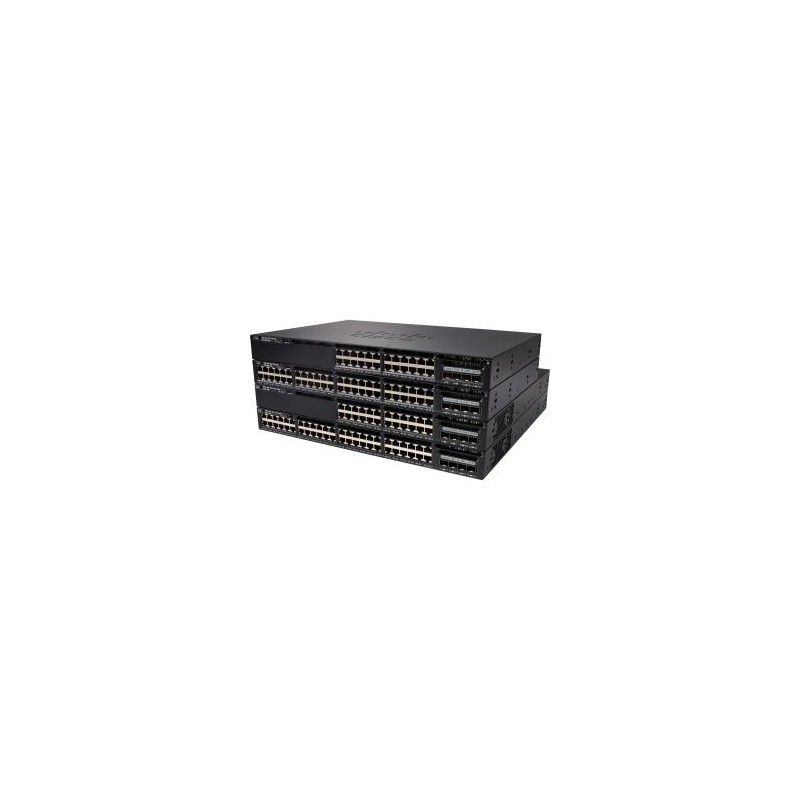

Cisco WS-C3650-24PDM-S Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black network switch
  • Cisco WS-C3650-24PDM-S Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black network switch
  • Cisco WS-C3650-24PDM-S Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black network switch
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.
10G support Yes
AC adapter included Yes
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Access Control List (ACL) Yes
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cable types supported Cat5,Cat5e,Cat6,Cat6a
Colour of product Black
DC-in jack Yes
Depth 296 mm
DHCP client Yes
DHCP server Yes
Fiber optic connector SFP+
Flash memory 4096 MB
Flow control support Yes
Form factor 1U
Full duplex Yes
Height 44 mm
IGMP snooping Yes
Input current 5 - 12 A
IP routing Yes
Jumbo frames support Yes
LED indicators Yes
Link aggregation Yes
MAC address filtering Yes
MAC address table 32000 entries
Mean time between failures (MTBF) 304860 h
MIB support Yes
Multicast support Yes
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3x,IEEE 802.3z
Operating altitude 0 - 3000 m
Operating temperature (T-T) -5 - 45 °C
Power consumption (max) 975 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 24
Power supply included Yes
Quality of Service (QoS) support Yes
Rack mounting Yes
Rate limiting Yes
Spanning tree protocol Yes
SSH/SSL support Yes
Stackable Yes
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L3
Switch type Managed
Switching capacity 256 Gbit/s
Total Power over Ethernet (PoE) budget 390 W
VLAN support Yes
Wall mountable Yes
Web-based management Yes
Weight 5560 g
Width 445 mm
ARP inspection Yes
Jumbo frames 9198
Private VLAN Yes
BPDU filtering/protection Yes
Port-based VLAN Yes
Installed SFP+ modules quantity 2
Traffic classification Yes
MAC address table (multicast) 24000 entries
Stacked VLAN Yes
Traffic shaping Yes

Specific References

EAN13
0882658867637

WS-C3650-24PDM-S.pdf

Cisco WS-C3650-24PDM-S Data Sheet

Cisco WS-C3650-24PDM-S

4 GB DRAM, 4096 VLAN, 24 10/100/1000 Ethernet PoE+, 2x10G Uplink, 640WAC, 1 RU, IP Base set
Out of Stock
£6,084.30
Tax excluded
Reference: WS-C3650-24PDM-S
Quantity
