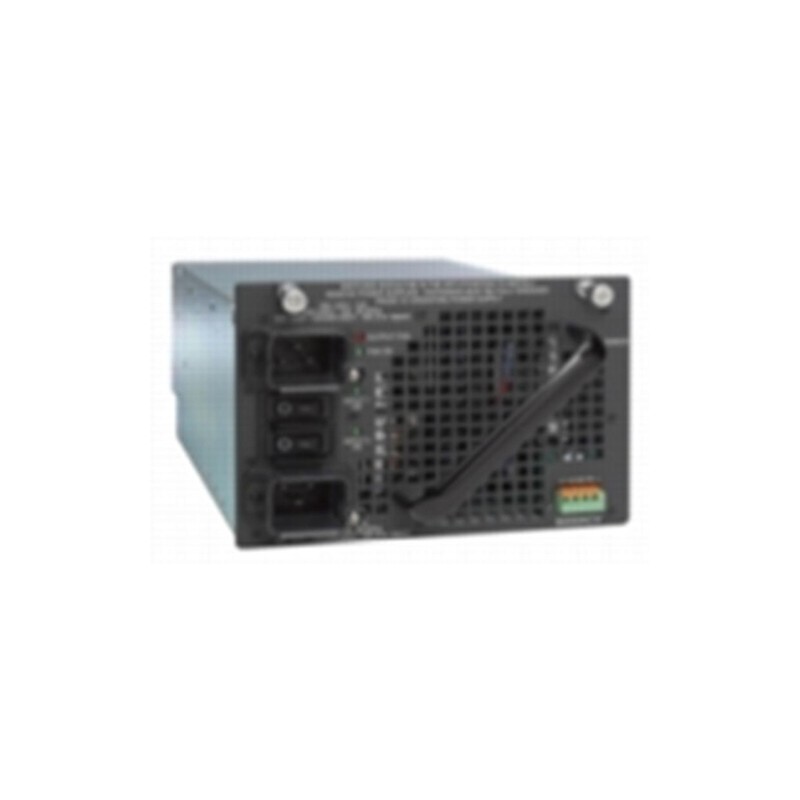

Cisco Catalyst 4500 E-Series Dual Input AC PoE Power Supplies
The 6000W ACV and 4200W ACV power supplies feature combined Mode Power Resiliency as an extension of the traditional combined mode power-supply behavior. Each power supply contains two smaller power supplies (called sub-units). In Combined Mode Power Resiliency the system relies only on power from three out of four power-supply sub-units. When using 200 VAC, this feature helps ensure that maximum power is available while the switch is protected against a single input power failure or sub-unit component failure.
The 6000W ACV and 4200W ACV power supplies feature combined Mode Power Resiliency as an extension of the traditional combined mode power-supply behavior. Each power supply contains two smaller power supplies (called sub-units). In Combined Mode Power Resiliency the system relies only on power from three out of four power-supply sub-units. When using 200 VAC, this feature helps ensure that maximum power is available while the switch is protected against a single input power failure or sub-unit component failure.
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
| Colour of product | Black |
| Compatibility | Cisco Catalyst 4500 E |
| Electromagnetic compatibility | FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZS 3548 Class A, VCCI Class A, EN 55022, EN 55024, EN 61000-6-1, EN 50082-1, EN 61000-3-2, EN 61000-3-3, ETS 300 386 |
| Heat dissipation | 2720 BTU/h |
| Input current | 12 - 16 A |
| LED indicators | Y |
| Mean time between failures (MTBF) | 341356 h |
| Operating altitude | -60 - 2000 m |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 32 - 104 °F |
| Product type | Power supply |
| Safety | UL 60950, CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, TS 001, AS/NZS 3260 |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -40 - 75 °C |
| Total power | 6000 W |
Similar products
-
Cisco WS-F6700-DFC3CXL
-
Cisco 4-Port T1/E1 Clear Channel...
-
Cisco SPA-8X1GE-V2
-
Cisco HWIC-2CE1T1-PRI
-
Cisco CWDM 1590-nm SFP Gigabit Ethernet...
Cisco PWR-C45-6000ACV-RF
Catalyst 4500 6000 WAC Power Supply, PoE, RF
PWR-C45-6000ACV-RF
Out of Stock
£2,110.00
£1,758.34 Ex VAT.
