Cisco IE 3000 Expansion Module
The Cisco® Industrial Ethernet 3000 Series (IE 3000 Series) is a family of Layer 2 and Layer 3 switches that bring Cisco’s leadership in switching to Industrial Ethernet applications with Innovative features, robust security, and superior ease of use. The Cisco IE 3000 Series features:



- Industrial design and compliance

- Tools for easy deployment, management, and replacement

- Network security based on open standards

- Integration of IT and industrial automation networks



The Cisco IE 3000 Series is an ideal product for Industrial Ethernet applications, including factory automation, energy and process control, and intelligent transportation systems (ITSs).



The Cisco IE 3000 offers:

- Design for Industrial Ethernet applications, including extended environmental, shock/vibration, and surge ratings; a complete set of power input options; convection cooling; and DIN-rail or 19” rack mounting

- Support for Power over Ethernet (PoE) up to 15.4W per port

- Support for Power over Ethernet Plus (PoE+) for the PoE+ capable devices up to 30W per port

- Easy setup and management using the Cisco Device Manager web interface and supporting tools, including Cisco Network Assistant (CNA) and Cisco Prime LMS 4.2

- Easy switch replacement using removable memory, allowing the user to replace a switch without having to reconfigure

- High availability, guaranteed determinism, and reliable security using Cisco IOS®Software

- Recommended software configurations for industrial applications that can be applied at the touch of a button

- Compliance to a wide range of Industrial Ethernet specifications covering industrial automation, ITS, substation, railway, and other markets

- Support for IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications

- Improved ring resiliency with the support of Resilient Ethernet Protocol (REP)

- Transparent IT integration with the support of Layer 3 routing protocols (IP Services)

- PROFINET v2 certification, with PROFINET conformance class B compliance

- ABB Industrial IT certification

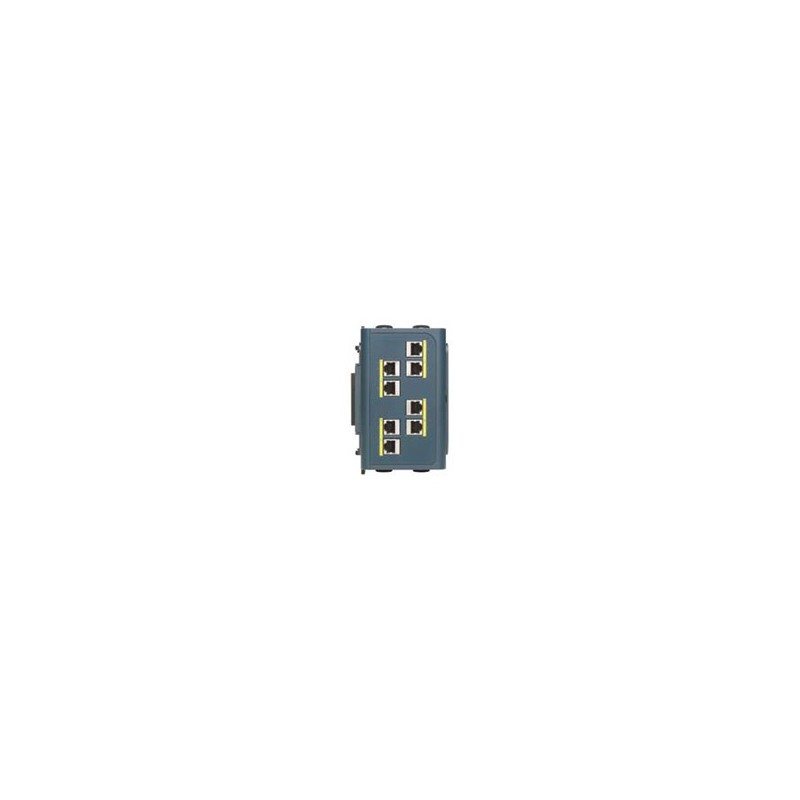

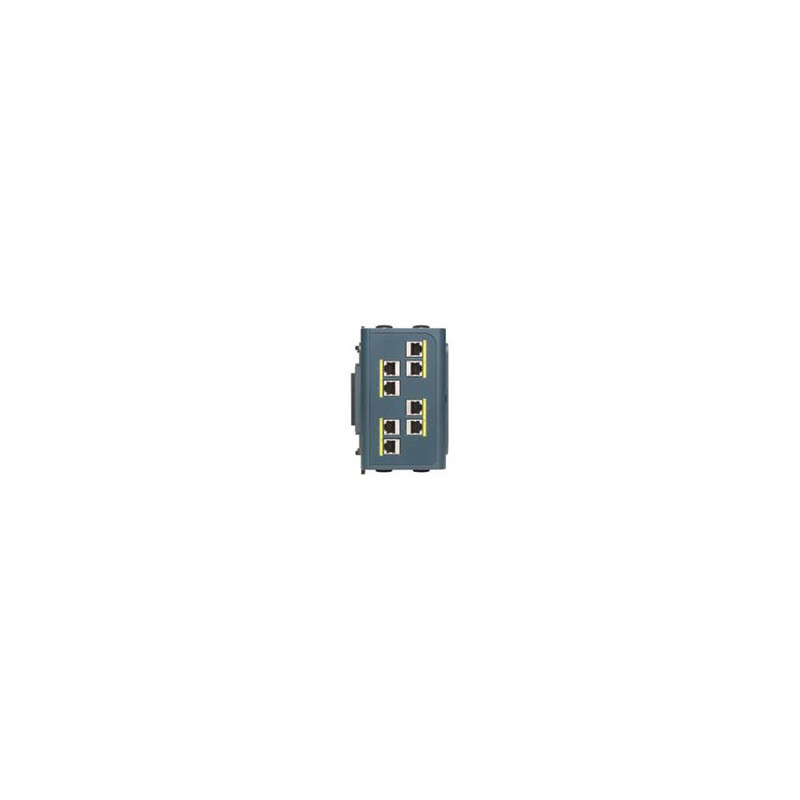

Cisco IEM-3000-8TM=:



Expansion copper Module for Cisco IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E, and IE-3000-8TC-E switches, eight 10/100 TX ports
CertificationIEC 61850-3, IEEE1613, NEMA TS-2, EN50155, ODVA, IEEE 1588v2
Colour of productBlue
CompatibilityCisco IE-3000-4TC, IE-3000-8TC
Connectivity technologyWired
Data link protocolsEthernet, Fast Ethernet, Gigabit Ethernet
Data transfer rate1 Gbit/s
Dimensions (WxDxH)89 x 112 x 147 mm
Ethernet LAN (RJ-45) ports8
Ethernet LAN data rates10,100 Mbit/s
Full duplexYes
I/O ports8 x RJ45
Jumbo frames supportYes
LED indicatorsYes
Mean time between failures (MTBF)926999 h
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 95 %
Operating relative humidity range10 - 95 %
Operating temperature (T-T)-40 - 75 °C
Operating temperature range (T-T)-40 - 75 °C
Power consumption (typical)2.8 W
Quality of Service (QoS) supportYes
Source data-sheetIcecat.biz
Storage temperature (T-T)-25 - 85 °C
Storage temperature range (T-T)-25 - 85 °C
Weight1000 g

Similar products

  • Cisco WS-F6700-DFC3CXL
    Cisco WS-F6700-DFC3CXL
  • Cisco 4-Port T1/E1 Clear Channel High-Speed WAN Interface Card
    Cisco 4-Port T1/E1 Clear Channel...
  • Cisco SPA-8X1GE-V2
    Cisco SPA-8X1GE-V2
  • Cisco HWIC-2CE1T1-PRI
    Cisco HWIC-2CE1T1-PRI
  • Cisco CWDM 1590-nm SFP Gigabit Ethernet and 1 and 2 Gb Fibre Channel
    Cisco CWDM 1590-nm SFP Gigabit Ethernet...

Cisco IEM-3000-8TM

8 x 10/100 TX, 2.8 W, 1 kg

IEM-3000-8TM=

Out of Stock

£855.55
£712.96 Ex VAT.
