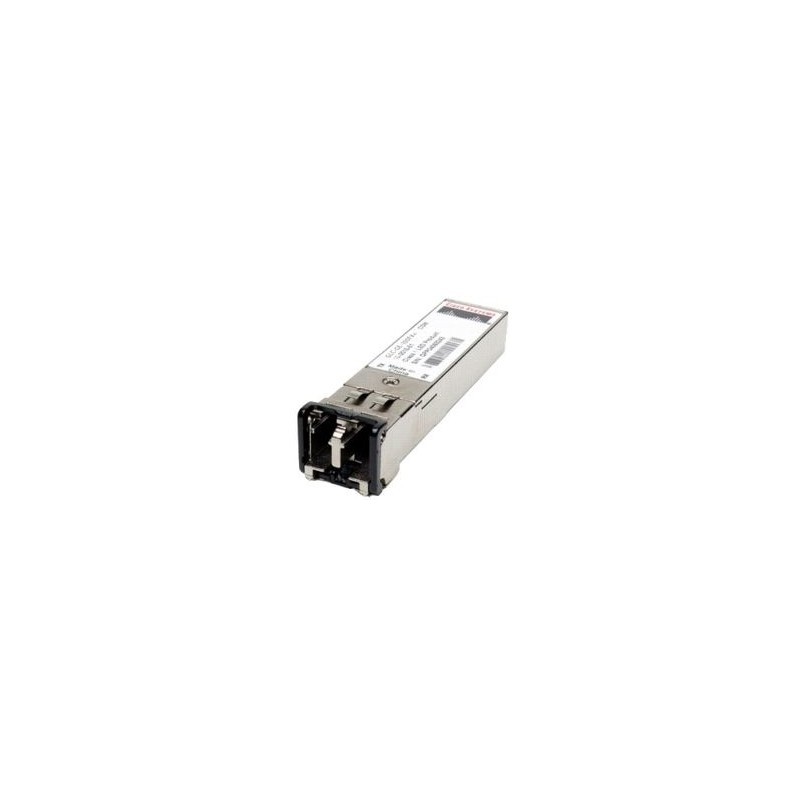

The Cisco® 100BASE-X Small Form-Factor Pluggable (SFP) device (Figure 1) is a hot-swappable input/output device that plugs into Fast Ethernet ports, dual-rate Fast/Gigabit Ethernet ports, or Gigabit Ethernet ports of a Cisco switch or router, linking the port with the fiber cabling network.
Main features include the following:
- Hot-swappable when deployed, the switch or router does not have to reboot
- Supports the “pay-as-you-populate” model
- Interchangeable with other 100BASE-X SFPs on the same line card
- Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP
- Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link
Cisco 100BASE-FX SFP
The Cisco 100BASE-FX SFP operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers (km) long.
GLC-FE-100FX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.
GLC-FE-100FX-RGD modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.
GLC-GE-100FX modules operate in Gigabit Ethernet ports of Cisco switches and routers.
All these modules are interoperable with industrywide interfaces compliant to the IEEE 100BASE-FX standard.
Main features include the following:
- Hot-swappable when deployed, the switch or router does not have to reboot
- Supports the “pay-as-you-populate” model
- Interchangeable with other 100BASE-X SFPs on the same line card
- Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP
- Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link
Cisco 100BASE-FX SFP
The Cisco 100BASE-FX SFP operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers (km) long.
GLC-FE-100FX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.
GLC-FE-100FX-RGD modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.
GLC-GE-100FX modules operate in Gigabit Ethernet ports of Cisco switches and routers.
All these modules are interoperable with industrywide interfaces compliant to the IEEE 100BASE-FX standard.
| Cable type | Multi-mode |
| Cabling technology | 100BASE-FX |
| Compliance industry standards | 802.3z. |
| Data link protocols | Fast Ethernet |
| Data transfer rate | 0.1 Gbit/s |
| Data transfer rate (max) | 1000 Mbit/s |
| Dimensions (WxDxH) | 56.7 x 13.8 x 9.8 mm |
| Fiber optic connector | LC |
| Fiber ports quantity | 2 |
| Interface type | SFP |
| Maximum transfer distance | 2000 m |
| Networking standards | IEEE 802.3ab |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating temperature range (T-T) | -40 - 80 °C |
| Power consumption (typical) | 1.5 W |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage temperature range (T-T) | 0 - 45 °C |
| Technical features | Wavelength (Min/Typ/Max): 1270/1300/1380 MMF Fiber type Full duplex |
| Wavelength | 1310 nm |
Specific References
- EAN13
- 7463209770038
Cisco GLC-GE-100FX
100BASE-FX SFP transceiver module for Gigabit Ethernet ports, 1310nm wavelength, 2km over MMF
£209.31
£174.43 Ex. VAT
100BASE-FX SFP transceiver module for Gigabit Ethernet ports, 1310nm wavelength, 2km over MMF
