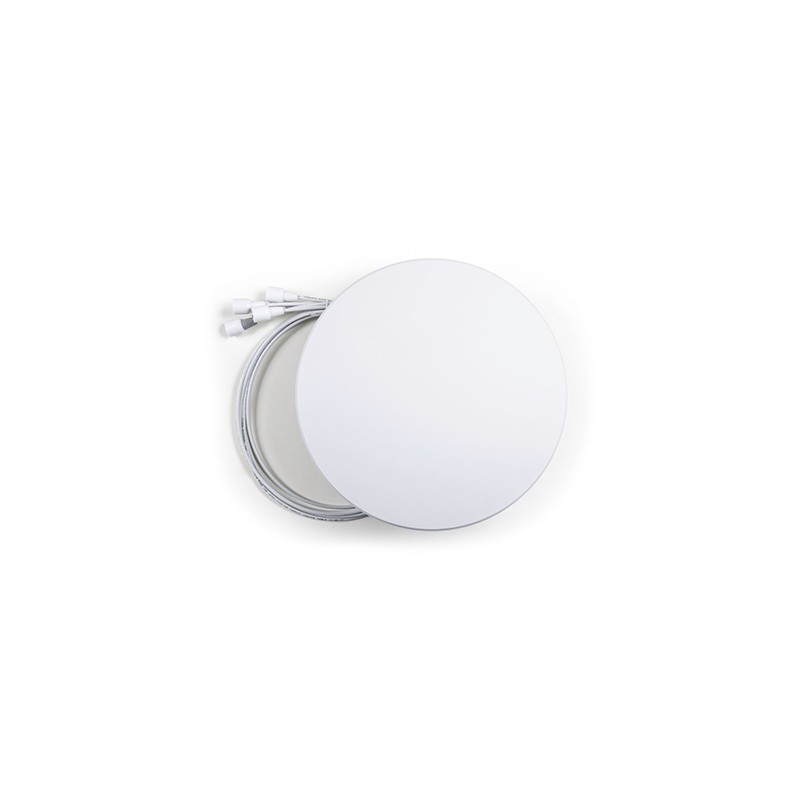

The Panel Omni antenna is ideal for low ceiling aesthetic consensus installations where wall penetration or extended reach are important. Some example uses are low density deployments like schools and hotels to provide basic low performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Panel Omni antenna can be purchased with 5 or 6 connectors.
| Antenna connector type | RP-TNC |
| Antenna gain level (max) | 4.9 dBi |
| Antenna type | Omni-directional antenna |
| Colour of product | White |
| Diameter | 300 mm |
| Frequency band | 2.4/5 GHz |
| Height | 35 mm |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Vertical beam width | 60 ° |
| Weight | 1050 g |
Cisco MA-ANT-3-C6
Omni, 2.4/5GHz, 4.9dBi, 60°, RP-TNC
£336.80
Tax excluded
Omni, 2.4/5GHz, 4.9dBi, 60°, RP-TNC
