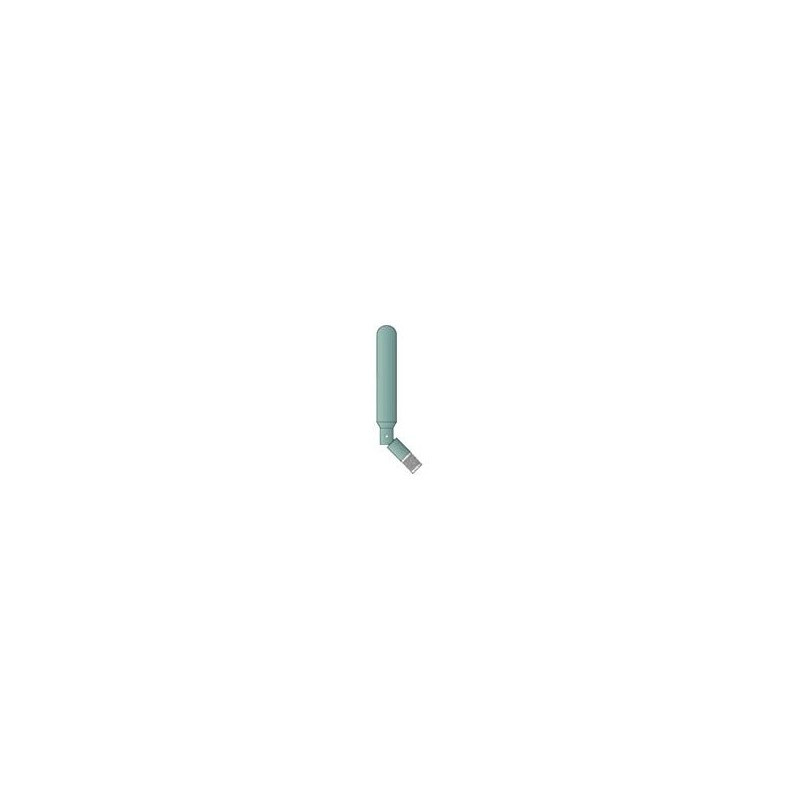

The Cisco 3G-ANTM1919D antenna operates in the 806- to 960-MHz and 1710- to 2170-MHz frequency bands, and is designed for use with Cisco 3G wireless high speed WAN interface cards (HWICs). The Cisco 3G-ANTM1919D antenna is compatible with the Cisco 3G wireless WAN HWICs using a threaded Neill-Concelman (TNC) male connector with articulating joint.
This antenna has the following features:
- Multiband performance. 806-960 MHz and 1710-2170 MHz.
- Articulating joint provides 0 to 90 degrees pivot and 180-degree swivel movement, allowing vertical and horizontal orientation of the antenna.
- Ground plane independent.
Impedance |
50 Ω |
Operating temperature range (T-T) |
-30 - 70 °C |
Voltage Standing Wave Ratio (VSWR) |
< 2.5:1 |
Width |
23.81 mm |
Specific References
- EAN13
- 0882658141362
