Dual-Band Antennas
The Cisco Aironet high-performance, dual-band dipole antenna. The antenna operates in both the 2.4-GHz and 5-GHz frequency bands and is designed for use with Cisco Aironet 2.4-GHz and 5-GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4-GHz frequency band and 4 dBi in the 5-GHz frequency band.
The Cisco Aironet high-performance, dual-band dipole antenna. The antenna operates in both the 2.4-GHz and 5-GHz frequency bands and is designed for use with Cisco Aironet 2.4-GHz and 5-GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4-GHz frequency band and 4 dBi in the 5-GHz frequency band.
| Antenna gain level (max) | 4 dBi |
| Antenna type | omni-directional |
| Colour of product | Black |
| Frequency band | 2.4/5 GHz |
| Frequency range | 2.4 - 2.5GHz, 5.15 - 5.85GHz |
| Gender type | male |
| Impedance | 50 Ω |
| Operating temperature range (T-T) | -20 - 60 °C |
| Purpose | Indoor |
| Storage temperature range (T-T) | -40 - 85 °C |
| Weight | 38.5 g |
| Width | 21 mm |
Specific References
- EAN13
- 5711045309069

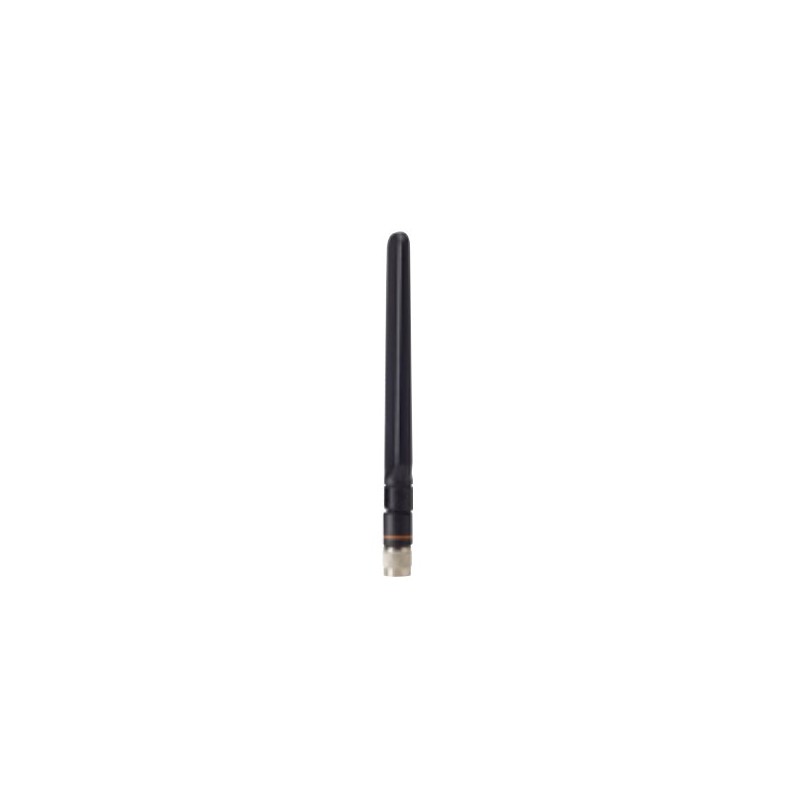

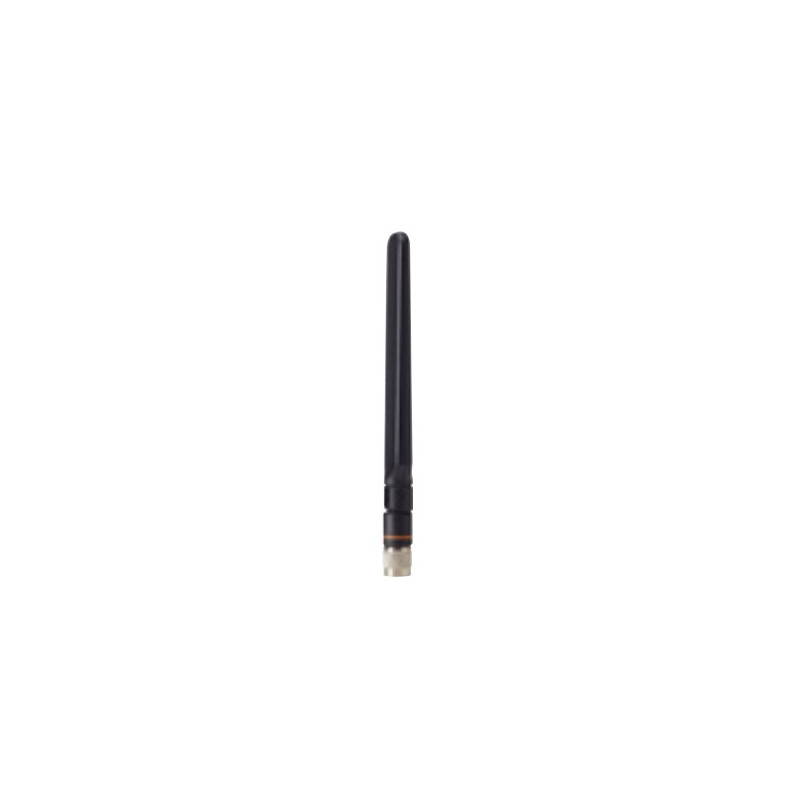

Cisco AIR-ANT2524DB-R
AIR-ANT2524DB-R=, RP-TNC, Dual-band, 2.4-2.5GHz/2dBi, 5.15-5.85GHz/4dBi, 168.5mm, 38.5g, Black
£41.51
£34.59 Ex. VAT
AIR-ANT2524DB-R=, RP-TNC, Dual-band, 2.4-2.5GHz/2dBi, 5.15-5.85GHz/4dBi, 168.5mm, 38.5g, Black
