Cisco MA-ANT-3-C5
  • Cisco MA-ANT-3-C5
  • Cisco MA-ANT-3-C5

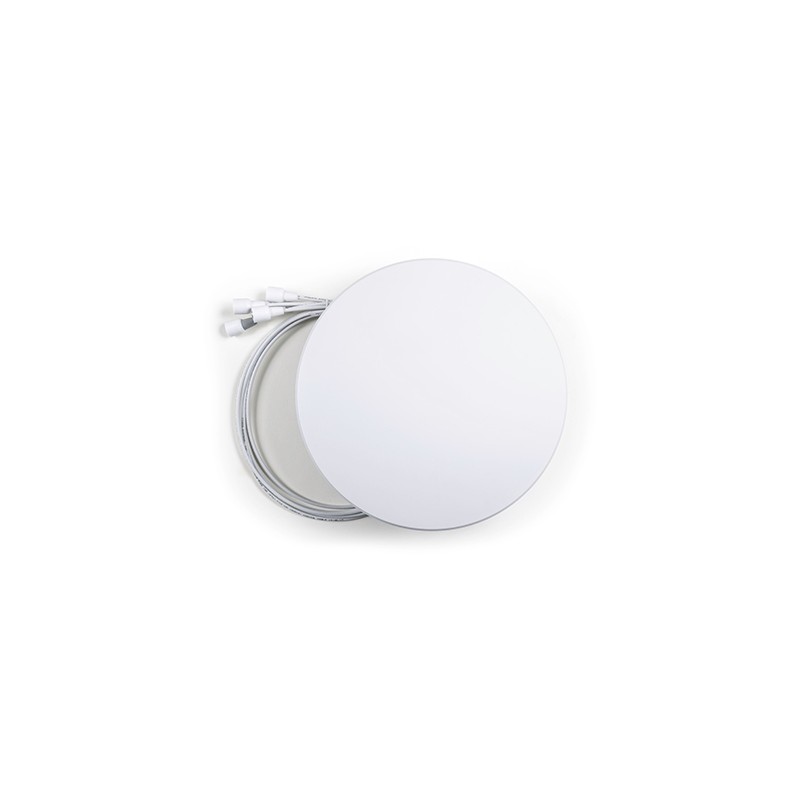

The Panel Omni antenna is ideal for low ceiling aesthetic consensus installations where wall penetration or extended reach are important. Some example uses are low density deployments like schools and hotels to provide basic low performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Panel Omni antenna can be purchased with 5 or 6 connectors.
Antenna connector typeRP-TNC
Antenna gain level (max)4.9 dBi
Antenna typeOmni-directional antenna
Colour of productWhite
Diameter300 mm
Frequency band2.4/5 GHz
Height35 mm
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 40 °C
Vertical beam width60 °
Weight980 g

MA-ANT-3-C5.pdf

Cisco MA-ANT-3-C5 Data Sheet

Download (792.97k)

Similar products

  • Cisco AIR-ANT5114P-N
    Cisco AIR-ANT5114P-N
  • Cisco AIR-ANT2566P4W-R
    Cisco AIR-ANT2566P4W-R
  • Cisco AIR-ANT2547V-N
    Cisco AIR-ANT2547V-N
  • Cisco AIR-ANT2524DG-R
    Cisco AIR-ANT2524DG-R
  • Cisco AIR-ANT2524DB-R
    Cisco AIR-ANT2524DB-R

Cisco MA-ANT-3-C5

Omni, 2.4/5GHz, 4.9dBi, 60°, RP-TNC

MA-ANT-3-C5

Out of Stock

£351.81
£293.17 Ex VAT.
