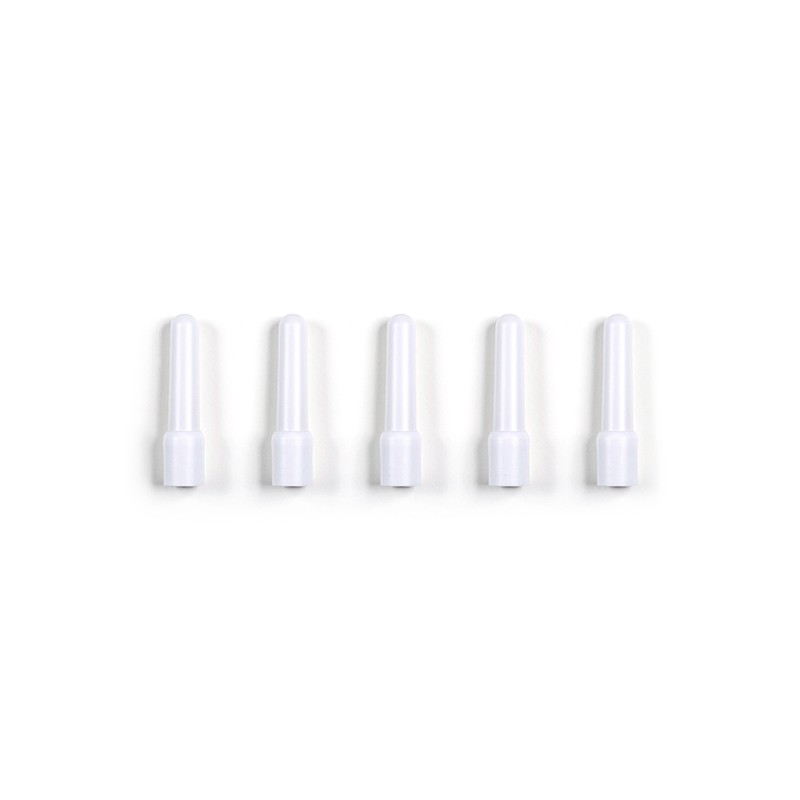

Cisco MA-ANT-3-A5
  • Cisco MA-ANT-3-A5
  • Cisco MA-ANT-3-A5
The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms.
Antenna connector typeRP-TNC
Antenna gain level (max)5.5 dBi
Antenna typeOmni-directional antenna
Colour of productWhite
Diameter14.5 mm
Frequency band2.4/5 GHz
Height77.7 mm
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 40 °C
Quantity5
Vertical beam width40 °
Weight21.59 g

MA-ANT-3-A5.pdf

Cisco MA-ANT-3-A5 Data Sheet

Download (488.15k)

Similar products

  • Cisco AIR-ANT5114P-N
    Cisco AIR-ANT5114P-N
  • Cisco AIR-ANT2566P4W-R
    Cisco AIR-ANT2566P4W-R
  • Cisco AIR-ANT2547V-N
    Cisco AIR-ANT2547V-N
  • Cisco AIR-ANT2524DG-R
    Cisco AIR-ANT2524DG-R
  • Cisco AIR-ANT2524DB-R
    Cisco AIR-ANT2524DB-R

Cisco MA-ANT-3-A5

Dipole, 2.4/5GHz, 3.8/5.5dBi, RP-TNC

MA-ANT-3-A5

Out of Stock

£155.42
£129.52 Ex VAT.
