This describes the Cisco Aironet AIR-ANT2547VG-N dual-band omni-directional antenna, and provides specifications and mounting instructions. The antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points (hereafter referred to as access points) with radios operating in the 2.4 GHz and 5 GHz frequency bands.
| Antenna connector type | N-type |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain level (max) | 7 dBi |
| Antenna type | Omni-directional antenna |
| Colour of product | Grey |
| Diameter | 31.7 mm |
| Frequency band | 2.4/5 GHz |
| Gain | 4 / 7 dBi |
| Gender | male |
| Height | 282 mm |
| Horizontal beam width (2.4 GHz) | 30 ° |
| Horizontal beam width (5 GHz) | 14 ° |
| Impedance | 50 Ω |
| International Protection (IP) code | IP67 |
| Manual | Yes |
| Operating temperature (T-T) | -40 - 85 °C |
| Protection features | Dust resistant,Splash proof,Water resistant |
| Purpose | Outdoor |
| Quantity | 1 |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Waterproof | Yes |
| Weight | 170 g |
| Bandwidth note | 2400 - 2483 , 5150 - 5875 MHz |
| Survival wind speed | 265 km/h |
Specific References
- EAN13
- 0882658636097

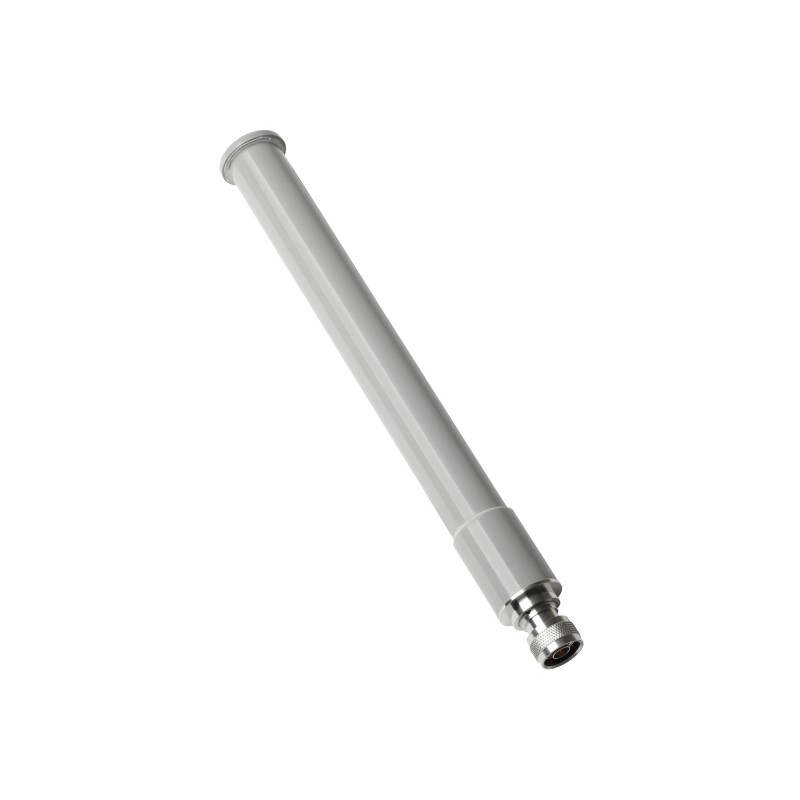

Cisco AIR-ANT2547VG-N
2.4 GHz/5GHz, 50 Ohms, 4-dBi/7-dBi, N-Male, IP66, IP67, Grey, Spare
£256.68
Tax excluded
2.4 GHz/5GHz, 50 Ohms, 4-dBi/7-dBi, N-Male, IP66, IP67, Grey, Spare
