Canon VB-S30VE | Canon Surveillance Cameras
  • Canon VB-S30VE | Canon Surveillance Cameras
  • Canon VB-S30VE | Canon Surveillance Cameras
  • Canon VB-S30VE | Canon Surveillance Cameras
  • Canon VB-S30VE | Canon Surveillance Cameras
  • Canon VB-S30VE | Canon Surveillance Cameras
  • Canon VB-S30VE | Canon Surveillance Cameras

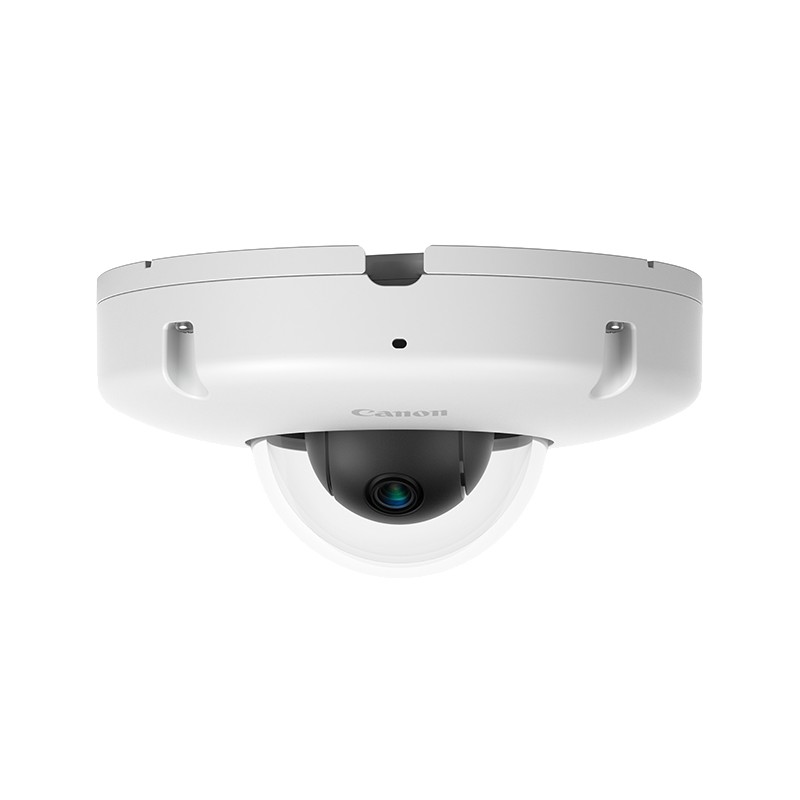

Canon's compact and powerful VB-S30VE Vandal Resistant Outdoor PTZ Micro Dome Network Camera delivers Full HD (1920 x 1080) video with outstanding clarity and color accuracy in challenging outdoor environments. This 2.1 Megapixel resolution camera's Genuine Canon Lens is equipped with motorized Pan/Tilt mechanisms and, despite its small form factor, additionally boasts a 3.5x optical zoom. This models IP66 and IK10 ratings substantiate its ability to withstand harsh weather and vandalism. The lightweight and easy-to-install VB-S30VE uses a minimal amount of power (max 8.1W over PoE) and helps reduce bandwidth and storage space usage due to its Motion Adaptive Noise Reduction and Area- Specific Data Size Reduction features. A built-in microphone also allows audio recording at the installation site.*



- 2.1 Megapixel Resolution High-Sensitivity CMOS Sensor helps deliver video with Outstanding Detail

- Genuine Canon Lens with 3.5x Optical Zoom helps provide Outstanding Image Clarity and Flexibility

- Motorized Pan/Tilt/Zoom for Remote Camera Positioning

- Compact Form Factor allows Camera to be Discreet and Aesthetically Pleasing

- IP66 Rated for Water and Dust Resistance

- IK10 Rated for Impact Resistance

- Advanced DIGIC DV III Image Processor to help Maximize Image Quality and Color Accuracy

- Built-in Microphone for Audio Recording at Installation Site*

- 64 Preset Positions for One-Click Camera Positioning

- Moisture Release System to help Prevent Video Distortion due to Excess Moisture

- Motion Adaptive Noise Reduction to Increase Video Clarity in Low-Light Conditions and Reduce Bandwidth Consumption

- Area-Specific Data Size Reduction (ADSR) to Maintain Video Quality in Important Areas while Reducing Bandwidth Usage

- Privacy Mask for Placing a Digital Mask over Restricted Areas

- ONVIF Profile S Conformant for VMS Connectivity

- Web-Based Camera Viewer with Mobile Device Support

- PoE Power Source Compatible
Active tampering alarm Yes
Alarm input/output Yes
Audio system 2-way
Built-in hard drive No
Built-in microphone Yes
Cabling technology 10/100Base-T(X)
Camera shutter speed 1 - 1/16000 s
Card reader integrated Yes
Colour of product White
Compatible memory cards MicroSD (TransFlash),MicroSDHC,MicroSDXC
Connectivity technology Wired
Day/night mode Yes
Diameter 132 mm
Digital zoom 4 x
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Focal length range (f-f) 2.25 - 7.88 mm
Focus Manual
Form factor dome
Frame rate 30 fps
Full HD Yes
Headphone outputs 1
Height 65 mm
HTTPS encryption Yes
International Protection (IP) code IP66
IP address filtering Yes
Languages support CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN,RUS,THA,TUR
Light exposure modes Auto,Manual,Shutter priority AE
Maximum resolution 1920 x 1080 pixels
Megapixel 2.1 MP
Minimum illumination 0.5 lx
Minimum processor Intel Core i7-2600
Minimum RAM 2048 MB
Mobile operating systems supported Android,iOS
Mounting type Ceiling
Night vision No
Operating relative humidity (H-H) 5 - 90 %
Operating temperature (T-T) -25 - 50 °C
Optical sensor size 1/4.85 "
Optical zoom 3.5 x
Pan range -175 - 175 °
Pan speed 120 °/sec
Password protection type User
Placement supported Universal
Power over Ethernet (PoE) Yes
Progressive scan Yes
Protection features Dust resistant,Vandal-proof,Water resistant
PTZ control (Pan/Tilt/Zoom) Yes
Sensor type CMOS
Supported graphics resolutions 320 x 180,320 x 240,480 x 270,640 x 360,640 x 480 (VGA),960 x 540,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
Supported network protocols TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP
Tilt angle 0 - 90 °
Tilt speed 120 °/sec
Type IP security camera
Video compression formats H.264,M-JPEG
Video motion detection Yes
Viewing angle, horizontal 77.1 °
Viewing angle, vertical 40.2 °
Voice codecs G.711
Weight 620 g
White balance Auto,Daylight,Fluorescent,Halogen,Manual,Mercury lamp,Sodium lamp
Wi-Fi No
Windows operating systems supported Yes
Zoom capability Yes
Auto focus Yes
Power consumption (Power over Ethernet (PoE)) 8.1 W
Preset points Yes
Maximum aperture number 1.4
Number of cameras 1
Alert notification type E-mail
Image stabilizer Yes
PTZ modes Preset point
Minimum aperture number 2.6
IK code IK10
Gain control type Auto
Bit rate 64 - 16384 kbps
Preset programs quantity 64
Fixed focus Yes

Download

1387C001.pdf

Canon VB-S30VE Data Sheet

Download (9.89MB)

Canon VB-S30VE

1/4.85" CMOS (RGB), 2.1 MP, 350°, 1 x RJ-45, MicroSD, PoE, IP66, IK10, Ø132 x 65 mm
Out of Stock
£596.26
Tax excluded
Reference: 1387C001
